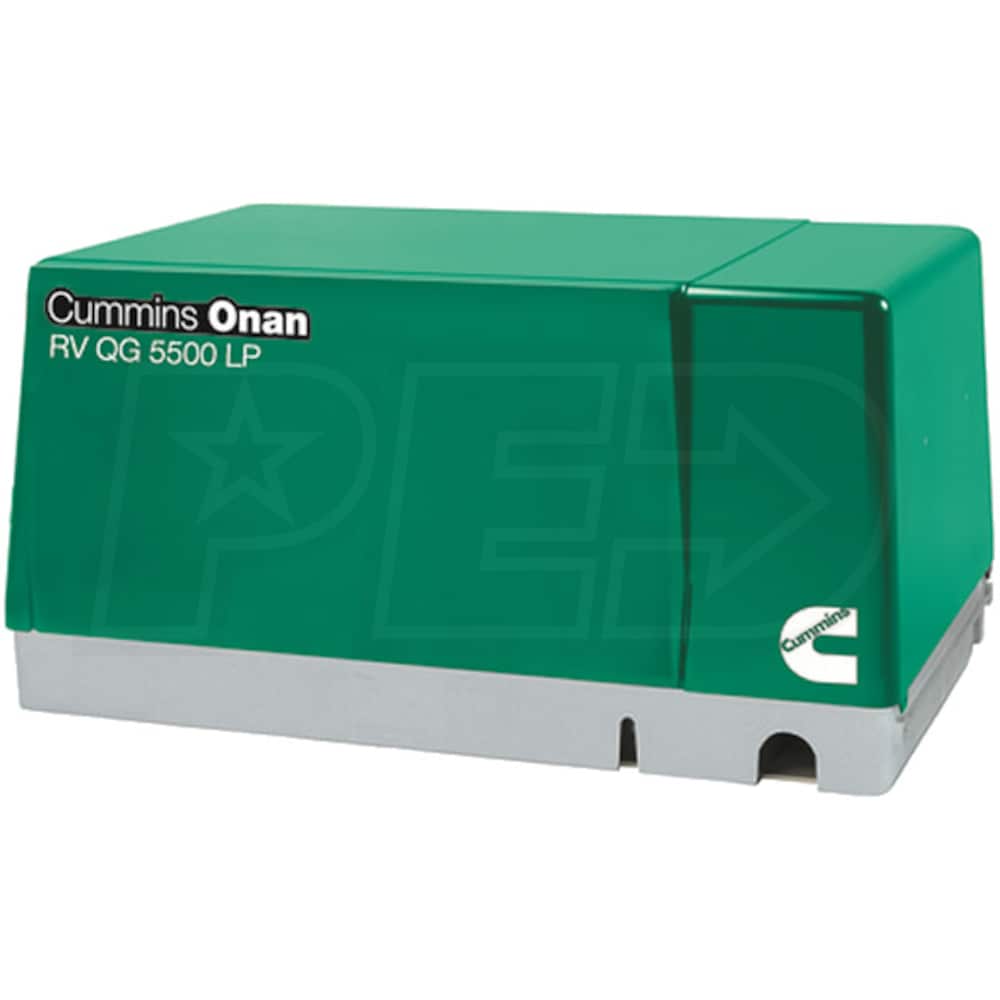

Cummins Onan RV QG 5500 LP - 5.5HGJAB-1119 - 5.5kW RV Generator (LP)
Model: A063B871
+
Share This Product
-
Product Description
-
8Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Cummins 5.5 kW LP Powered RV Generator (5.5 HGJAB-1119)
- More power for medium size RVs (30A & 20A Breakers)
- Runs two 13,500 BTU AC units w/ 1100 additional watts available
- Cummins Onan 4-Cycle OHV V-Twin Engine (.8 Gal/H @ 1/2 Load)
- Quietest in its class w/ excellent fuel efficiency
- Decibel Rating @ 3m: 67 db(A)
- Microprocessor Controlled
- Digital voltage regulator prevents damaging voltage spikes
- Self-diagnostic capability to simplify troubleshooting
- Sound-Attenuating Enclosure w/ Thru Flow Cooling System
- Lowers noise levels while providing cross-flow cooling
- Integral USDA Forest Service-approved spark-arrestor muffler
- Universal Mounting Tray
- Structural capability to support the generator set in RV apps.
- 4-Point focalized mounting system with vibration isolators
- Added Features
- Integral Control Panel & Instant one-touch stop switch
- Automotive Type Starter, Mech Governor & Electric Fuel Solenoid
- 3 Year / 2000 Hour Warranty (Please See Warranty Sheet)
For Additional Models - Please Call Us @ 1-800-800-3317
Specifications
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Fuel Type
LP
LP Fuel Consumption @ 50% Load
0.8 gallons/hr
LP Fuel Consumption @ 100% Load
1.1 gallons/hr
Rated Amps
45.8 Amps
Decibel Rating @ 3m
67
Idle Control
No
Circuit Breaker Size
20-30 Amps
Min. Air Inlet - Front
4.7" x 18.7"
Min. Air Outlet - Bottom
6.3" x 17.8"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
10.7 HP
CC
653 CC
Consumer Engine Warranty
3 Years
Engine RPM
2400 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
279 Pounds
Consumer Warranty
3 Years
Product Style
RV Generator
Product Length
33.6 Inches
Product Width
22.2 Inches
Product Height
16.7 Inches
UPC
088805651153
Additional Model Numbers
RV QG 5500 LP, A063B871
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Cummins 5.5 kW LP Powered RV Generator (5.5 HGJAB-1119)
- More power for medium size RVs (30A & 20A Breakers)
- Runs two 13,500 BTU AC units w/ 1100 additional watts available
- Cummins Onan 4-Cycle OHV V-Twin Engine (.8 Gal/H @ 1/2 Load)
- Quietest in its class w/ excellent fuel efficiency
- Decibel Rating @ 3m: 67 db(A)
- Microprocessor Controlled
- Digital voltage regulator prevents damaging voltage spikes
- Self-diagnostic capability to simplify troubleshooting
- Sound-Attenuating Enclosure w/ Thru Flow Cooling System
- Lowers noise levels while providing cross-flow cooling
- Integral USDA Forest Service-approved spark-arrestor muffler
- Universal Mounting Tray
- Structural capability to support the generator set in RV apps.
- 4-Point focalized mounting system with vibration isolators
- Added Features
- Integral Control Panel & Instant one-touch stop switch
- Automotive Type Starter, Mech Governor & Electric Fuel Solenoid
- 3 Year / 2000 Hour Warranty (Please See Warranty Sheet)
For Additional Models - Please Call Us @ 1-800-800-3317
Specifications
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Fuel Type
LP
LP Fuel Consumption @ 50% Load
0.8 gallons/hr
LP Fuel Consumption @ 100% Load
1.1 gallons/hr
Rated Amps
45.8 Amps
Decibel Rating @ 3m
67
Idle Control
No
Circuit Breaker Size
20-30 Amps
Min. Air Inlet - Front
4.7" x 18.7"
Min. Air Outlet - Bottom
6.3" x 17.8"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
10.7 HP
CC
653 CC
Consumer Engine Warranty
3 Years
Engine RPM
2400 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
279 Pounds
Consumer Warranty
3 Years
Product Style
RV Generator
Product Length
33.6 Inches
Product Width
22.2 Inches
Product Height
16.7 Inches
UPC
088805651153
Additional Model Numbers
RV QG 5500 LP, A063B871
Product Specs
+−
Specifications
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Fuel Type
LP
LP Fuel Consumption @ 50% Load
0.8 gallons/hr
LP Fuel Consumption @ 100% Load
1.1 gallons/hr
Rated Amps
45.8 Amps
Decibel Rating @ 3m
67
Idle Control
No
Circuit Breaker Size
20-30 Amps
Min. Air Inlet - Front
4.7" x 18.7"
Min. Air Outlet - Bottom
6.3" x 17.8"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
10.7 HP
CC
653 CC
Consumer Engine Warranty
3 Years
Engine RPM
2400 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
279 Pounds
Consumer Warranty
3 Years
Product Style
RV Generator
Product Length
33.6 Inches
Product Width
22.2 Inches
Product Height
16.7 Inches
UPC
088805651153
Additional Model Numbers
RV QG 5500 LP, A063B871
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jared, the Generator Expert
+−
How long will this unit run on 1 gallon of propane?
John
from Ohio
December 06, 2012
Answer
LPG:
No load - 0.4 Gal/h (1.8 lb/h) 0.8 kg/h
Half load - 0.8 Gal/h (3.3 lb/h) 1.5 kg/h
Full load - 1.1 Gal/h (4.6 lb/h) 2.1 kg/h
Note: Fuel consumption will vary based on altitude and ambient temperature.
No load - 0.4 Gal/h (1.8 lb/h) 0.8 kg/h
Half load - 0.8 Gal/h (3.3 lb/h) 1.5 kg/h
Full load - 1.1 Gal/h (4.6 lb/h) 2.1 kg/h
Note: Fuel consumption will vary based on altitude and ambient temperature.
Was this answer helpful?
Yes

7
No

0
