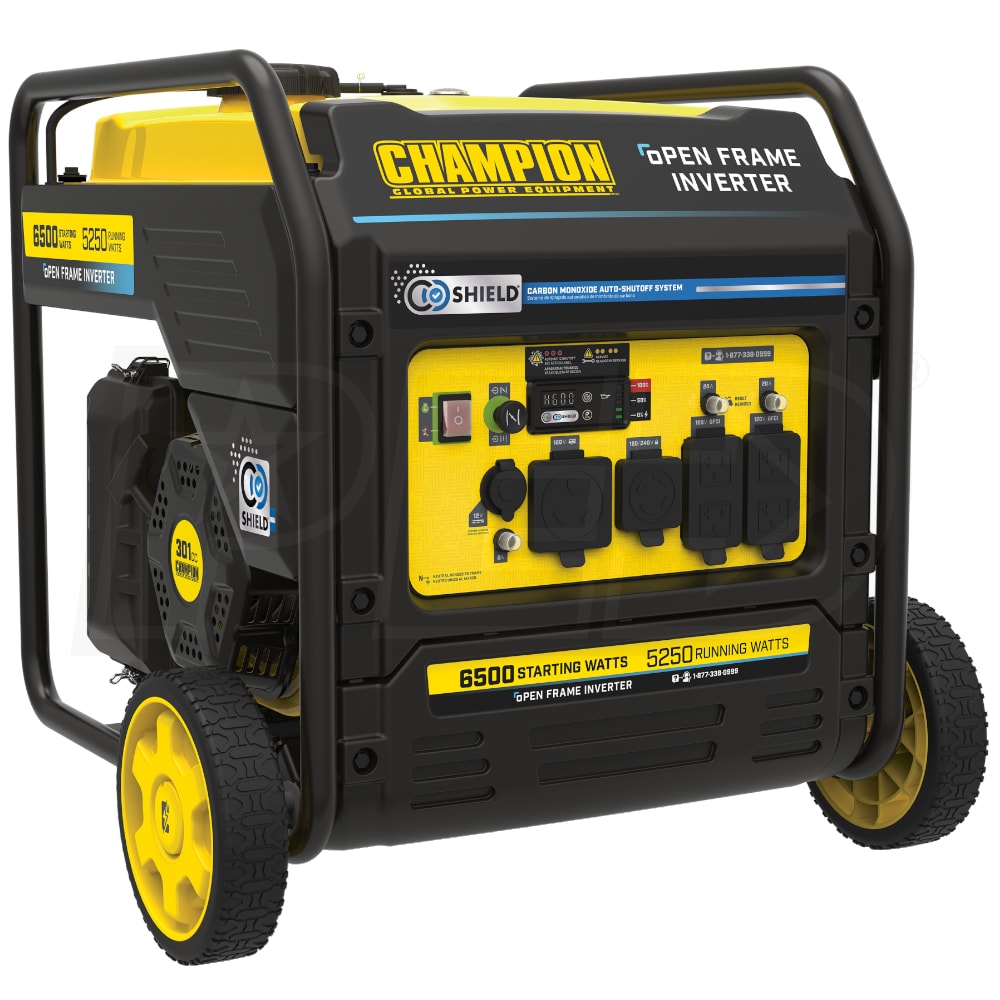

Champion 201066 - 5250 Watt Open-Frame RV-Ready Inverter Generator w/ Quiet Technology & CO Shield® (CARB)

Model:

201066

Write A Review
$1,049.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 1-2 Business Days
Shipping to60601

Champion 201066 - 5250 Watt  Open-Frame RV-Ready Inverter Generator w/ Quiet Technology & CO Shield® (CARB)
Champion 201066 - 5250 Watt Open-Frame RV-Ready Inverter Generator w/ Quiet Technology & CO Shield® (CARB)
Model: 201066
$1,049.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

5,250 Rated Watts

Surge Watts

7,000
Starting Watts

Fuel

Gasoline

Engine

Champion

  • Champion Open Frame Portable Inverter Generator
  • Ideal for emergency backup and general power needs
  • Quiet Technology - 50% Quieter & 20% Lighter
  • Compared to a traditional 5250W generator
  • Clean Power Technology - Less Than 3% THD
  • Safer power for your electronics and equipment
  • 301cc Champion OHV 4-Stroke Engine w/ Low-Oil Protection
  • Fuel-efficient, reliable and made for easier starting
  • Provides added protection to extend the life of the generator
  • Economy Mode - Up to 13.5 Hours of Run Time @ 25% Load
  • Adjusts engine speed to the optimum level depending on load
  • Reduces fuel use and engine wear for extended operation
  • TT-30 RV Receptacle
  • Easily connect your 30A RV cord (Not Included) for quiet power
  • 30A 120/240V (L14-30R) Twist-Lock Receptacle***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • Intelligauge™ Digital Display
  • Easily monitor your voltage, frequency & operating hours
  • Circuit Breaker Protection
  • Helps prevent overload to generator
  • 8" Never-Flat Wheels & Folding Handle
  • Makes this generator extremely portable
  • 12V DC Outlet
  • Includes 12V/DC USB adapter for charging phones/tablets
  • Also Includes:
  • Oil, Oil Funnel & Owner's Manual
  • 3-Year Limited Warranty - EPA & CARB/50 State Certified
  • ***Note - Allows You To Get Maximum Power From Generator
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
RV Ready 30-Amp
10-Amp DC - Cigarette Adapter
201066
specs product image PID-151407
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
123 Pounds
CARB Compliant
Yes
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
26.6 Inches
Product Width
25.5 Inches
Product Height
24.6 Inches
UPC
817198025704
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
5250 Watts
Surge Watts
7000 Watts
Fuel Type
Gasoline
Rated Amps
21.6 Amps
Portability Kit
Never Flat Wheels
Tank Size
4.6 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Grade Type
Emergency
CO Sensing
Yes
Low THD
Yes
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
301 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
10-Amp DC - Cigarette Adapter
1
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
RV Ready 30-Amp
1
