Champion 100809 - 3000 Watt RV Ready Inverter Generator w/ Quiet Technology & CO Shield® (49-State)
Model:
100809
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Alberto, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Recreational
Style
Portable
Run Watts
3,000 Rated Watts
Surge Watts
4,000
Starting Watts
Fuel
Gasoline
Engine
Champion
- Champion Inverter Technology - Clean Power (<3% THD)
- Clean, quiet power for campsites, RV's, cabins & tailgating

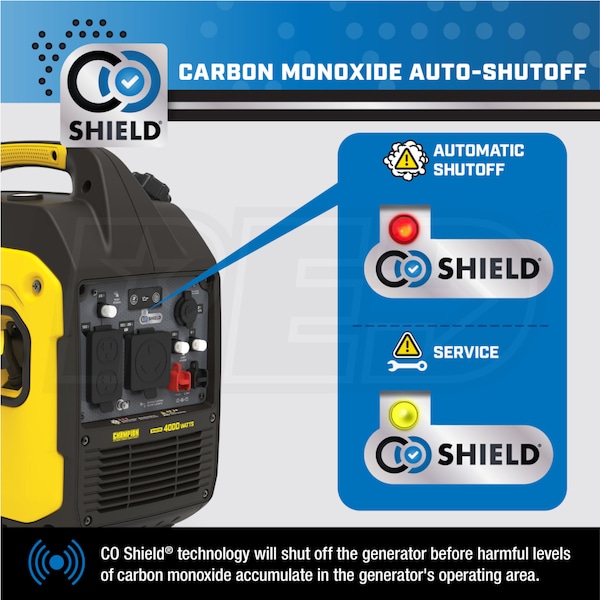

- CO Shield™ Technology^*^
- Alerts and shuts off the generator automatically
- Champion 149cc OHV Engine w/ Low Oil Sensor
- Provides added protection to extend engine life
- EZ Start Dial w/ Cold Start Technology
- Makes starting your generator an easy task
- Allows for easier starting in cold weather
- Economy Mode Switch - 10 Hours of Run Time @ 1/4 Load
- Adjusts engine speed to the optimum level depending on load
- LED Status Lights
- AC output, Low Oil and Eco mode
- Quiet - Only 64 dBA at 23'
- Fully enclosed durable housing reduces sound output
- TT-30 RV Receptacle
- Easily connect your 30A RV cord (Not Included) for quiet power
- Parallel Operation Capability
- Increase available wattage when linking 2 Champion inverter gens
- Requires ParaLINK parallel kit (Sold Separately)
- Lightweight Design w/ Built-In Carrying Handle
- Makes this generator easy to move where you need it most
- Added Features
- 12V DC Outlet & USDA-Approved Spark Arrestor/Muffler
- Also Includes:
- Engine Oil & Oil Funnel
- 3-Year Limited Warranty
- ^*^ Meets ANSI/PGMA G300-2018 Requirements
- Non-CARB Compliant - Not For Sale In California
Specifications
Plug Types
100809
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Weight
51.8 Pounds
CARB Compliant
No
Certification
EPA
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
17.9 Inches
Product Width
11.7 Inches
Product Height
19.7 Inches
UPC
817198027791
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
No
Rated Watts
3000 Watts
Surge Watts
4000 Watts
Fuel Type
Gasoline
Rated Amps
25 Amps
Tank Size
1.54 Gallons
Fuel Tank Material
Plastic
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
64
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Grade Type
Recreational
Wi-Fi Remote Monitoring
No
CO Sensing
Yes
Low THD
Yes
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
149 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Plugs
8-Amp DC - Cigarette Adapter
1
NEMA 5-20R - Wall-Type
1
RV Ready 30-Amp
1
