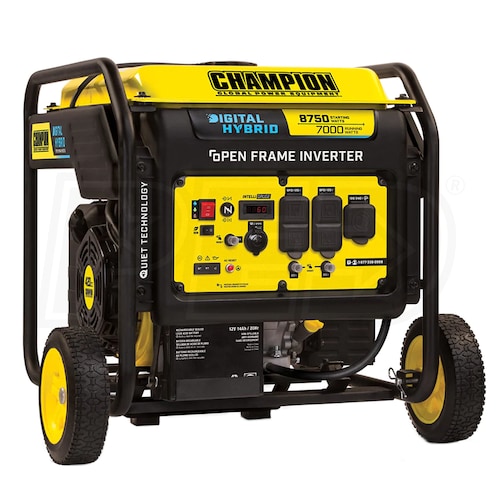

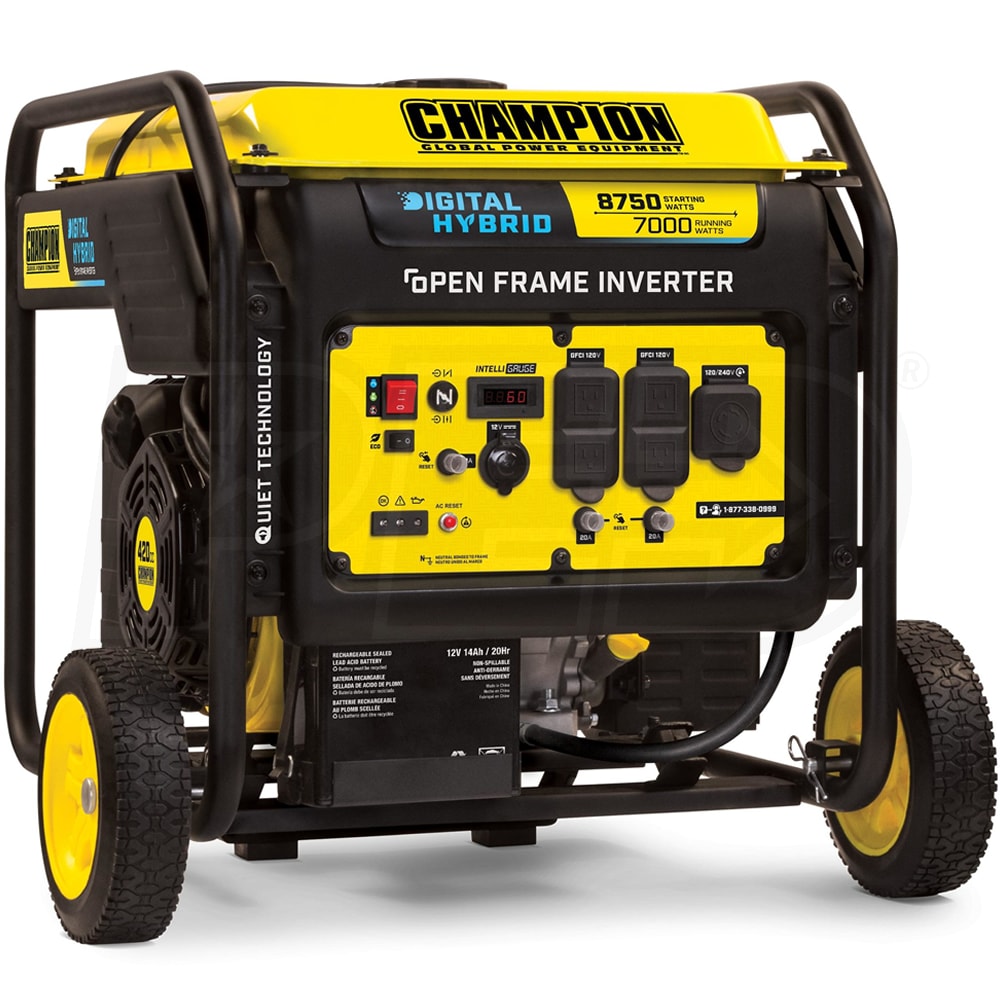

Champion 100520 - 7000 Watt Digital Hybrid Open-Frame Electric Start Inverter Generator w/ Quiet Technology (CARB)
Model: 100520
+
Share This Product
-
Product Description
-
10Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
7,000
Rated Watts
Surge Watts
8,750
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
7,000
Surge Watts
8,750 Starting Watts
Fuel
Gasoline
Engine
Champion
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Champion 7000 Watt "Digital Hybrid" Portable Generator
- Ideal for emergency backup and general power needs
- Quiet Technology - 30% Quieter & 25% Lighter
- Compared to a traditional 7000W generator
- Clean Power Technology - Less Than 3% THD
- Safer power for your electronics and equipment
- Push-Button Electric Start (Battery Included)
- Plus an easy-pull recoil starter, so you'll always be ready for an outage
- 420cc Champion OHV 4-Stroke Engine w/ Low-Oil Protection
- Fuel-efficient, reliable and made for easier starting (Recoil)
- Provides added protection to extend the life of the generator
- Economy Mode - Up to 10.5 Hours of Run Time @ 25% Load
- Adjusts engine speed to the optimum level depending on load
- Reduces fuel use and engine wear for extended operation
- 30A 120/240V (L14-30R) Twist-Lock Receptacle***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- Intelligauge™ Digital Display
- Easily monitor your voltage, frequency & operating hours
- Circuit Breaker Protection
- Helps prevent overload to generator
- 8" Never-Flat Wheels & Folding Handle
- Makes this generator extremely portable
- 12V DC Outlet
- Includes 12V/DC USB adapter for charging phones/tablets
- Also Includes
- Battery charging cables, Oil Funnel and Owner's Manual
- Engine Oil NOT Included
- 3-Year Limited Warranty - EPA & CARB/50 State Certified
- ***Note - Allows You To Get Maximum Power From Generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
7000 Watts
Surge Watts
8750 Watts
Fuel Type
Gasoline
Rated Amps
29.1 Amps
Portability Kit
Never Flat Wheels
Tank Size
4.2 Gallons
Run Time @ 50% Load
6.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
420 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
149 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
26.6 Inches
Product Width
25.6 Inches
Product Height
23.7 Inches
UPC
817198021973
Plugs
10-Amp DC - Cigarette Adapter
1
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Grade
Style
Run Watts
7,000
Rated Watts
Surge Watts
8,750
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
7,000
Surge Watts
8,750 Starting Watts
Fuel
Gasoline
Engine
Champion
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Champion 7000 Watt "Digital Hybrid" Portable Generator
- Ideal for emergency backup and general power needs
- Quiet Technology - 30% Quieter & 25% Lighter
- Compared to a traditional 7000W generator
- Clean Power Technology - Less Than 3% THD
- Safer power for your electronics and equipment
- Push-Button Electric Start (Battery Included)
- Plus an easy-pull recoil starter, so you'll always be ready for an outage
- 420cc Champion OHV 4-Stroke Engine w/ Low-Oil Protection
- Fuel-efficient, reliable and made for easier starting (Recoil)
- Provides added protection to extend the life of the generator
- Economy Mode - Up to 10.5 Hours of Run Time @ 25% Load
- Adjusts engine speed to the optimum level depending on load
- Reduces fuel use and engine wear for extended operation
- 30A 120/240V (L14-30R) Twist-Lock Receptacle***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- Intelligauge™ Digital Display
- Easily monitor your voltage, frequency & operating hours
- Circuit Breaker Protection
- Helps prevent overload to generator
- 8" Never-Flat Wheels & Folding Handle
- Makes this generator extremely portable
- 12V DC Outlet
- Includes 12V/DC USB adapter for charging phones/tablets
- Also Includes
- Battery charging cables, Oil Funnel and Owner's Manual
- Engine Oil NOT Included
- 3-Year Limited Warranty - EPA & CARB/50 State Certified
- ***Note - Allows You To Get Maximum Power From Generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
7000 Watts
Surge Watts
8750 Watts
Fuel Type
Gasoline
Rated Amps
29.1 Amps
Portability Kit
Never Flat Wheels
Tank Size
4.2 Gallons
Run Time @ 50% Load
6.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
420 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
149 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
26.6 Inches
Product Width
25.6 Inches
Product Height
23.7 Inches
UPC
817198021973
Plugs
10-Amp DC - Cigarette Adapter
1
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
7000 Watts
Surge Watts
8750 Watts
Fuel Type
Gasoline
Rated Amps
29.1 Amps
Portability Kit
Never Flat Wheels
Tank Size
4.2 Gallons
Run Time @ 50% Load
6.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
420 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
149 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
26.6 Inches
Product Width
25.6 Inches
Product Height
23.7 Inches
UPC
817198021973
Plugs
10-Amp DC - Cigarette Adapter
1
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Does this generator charge its battery? How hard is it to convert this to run on natural gas?
Mark
from Iowa
September 24, 2020
Answer
The generator comes with charging cables for charging the battery. We do not offer conversion kits or advise on those products.
