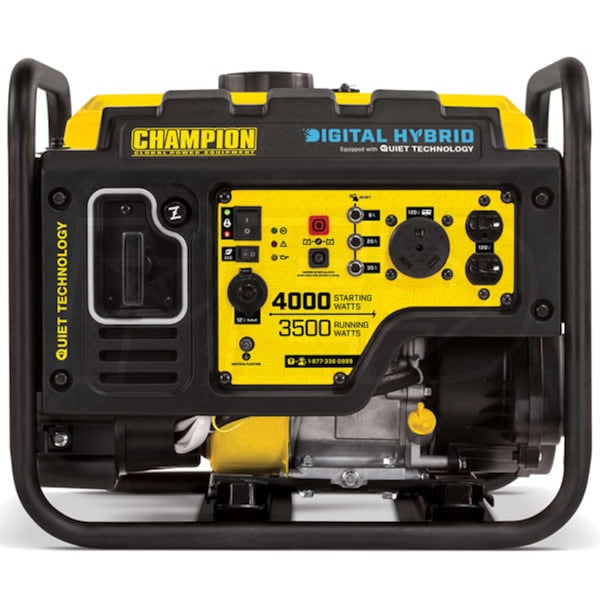

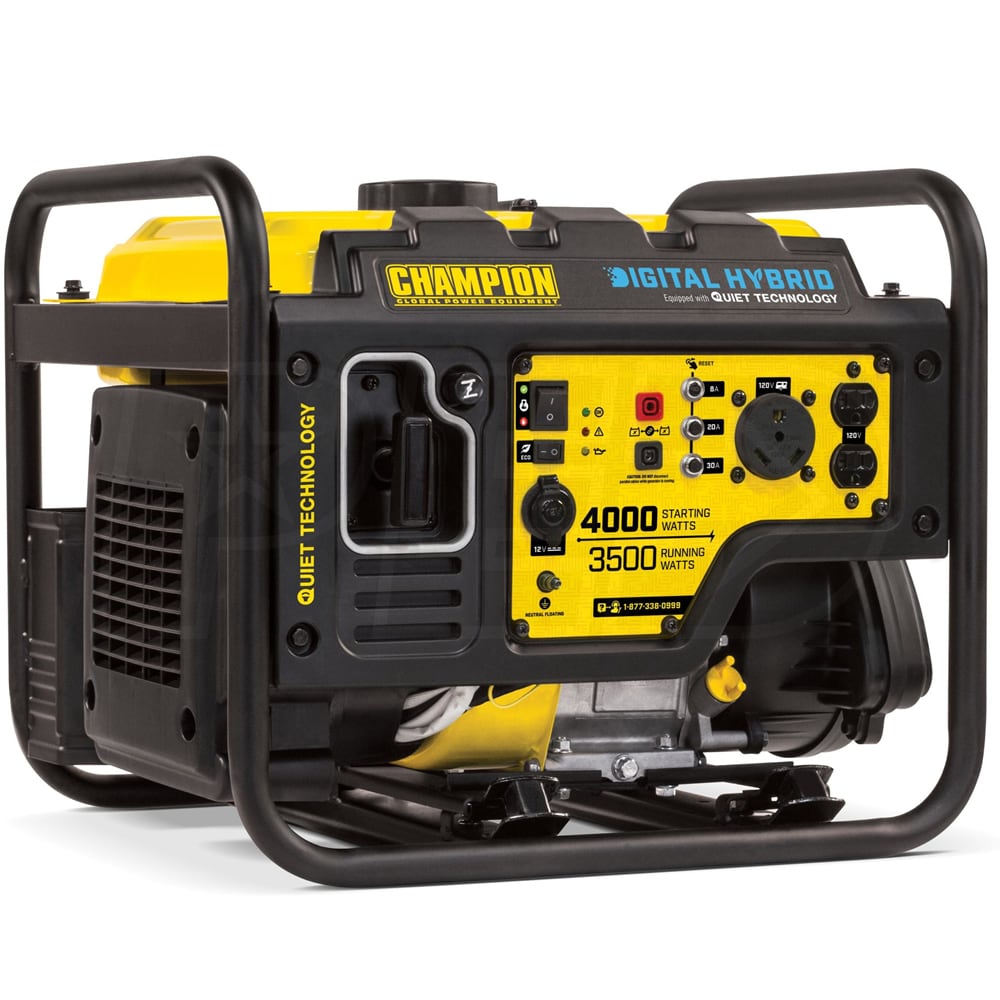

Champion 100302 - 3500 Watt DH Series RV-Ready Open Frame Inverter Generator w/ Quiet Technology (CARB)

Model:

100302

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Champion 100302 - 3500 Watt DH Series RV-Ready Open Frame Inverter Generator w/ Quiet Technology (CARB)
Champion 100302 - 3500 Watt DH Series RV-Ready Open Frame Inverter Generator w/ Quiet Technology (CARB)
Model: 100302
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Alberto, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

3,500 Rated Watts

Surge Watts

4,000
Starting Watts

Fuel

Gasoline

Engine

Champion



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Champion 3500 Watt "Digital Hybrid" Portable Generator
  • Ideal for a wide range of uses from RV power to emergency backup
  • Quiet Technology - 50% Quieter & 20% Lighter
  • Compared to a traditional 3500W Champion generator
  • Redesigned and reengineered for a more compact, quieter package
  • 224cc Champion OHV 4-Stroke Engine w/ Low-Oil Shutoff
  • Fuel-efficient, reliable and made for easier starting (Recoil)
  • Provides added protection to extend the life of the generator
  • Clean Power Technology - Less Than 3% THD
  • Safer power for your electronics and equipment
  • Economy Mode - Up to 17 Hours of Run Time @ 25% Load
  • Adjusts engine speed to the optimum level depending on load
  • Reduces fuel use and engine wear for extended operation
  • TT-30 RV Receptacle
  • Easily connect your 30A RV cord (Not Included) for quiet power
  • Fully Assembled - Out Of The Box
  • Just add oil (Not Included) and gasoline
  • Parallel Operation Capability*
  • Increase available wattage when linking (2) Champion generators
  • *Requires Champion parallel kit (Not Included)
  • 12V DC Outlet
  • Includes 12V/DC USB adapter for charging phones/tablets
  • Also Includes:
  • Battery charging cables, Oil Funnel and Owner's Manual
  • Engine Oil NOT Included
  • 3-Year Limited Warranty - EPA & CARB/50 State Certified
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

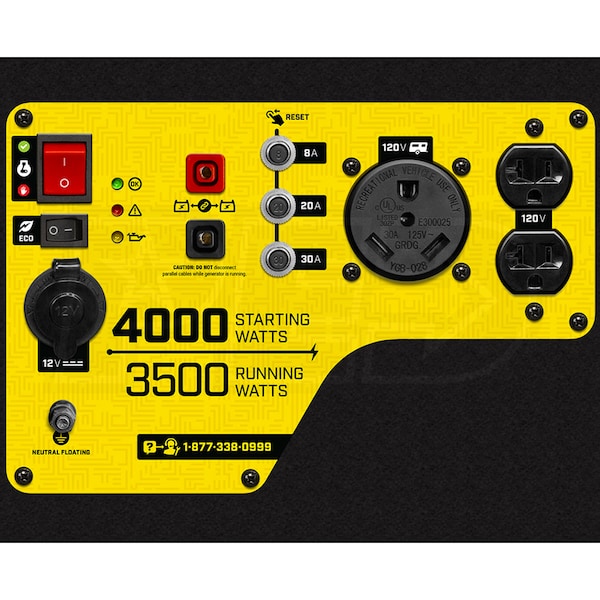

Plug Types
12-Amp DC (Cigarette Adapter)
NEMA 5-20R (Wall-Type)
RV Ready 30-Amp
100302
specs product image PID-71443
Overview
Weight
81.5 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
20.5 Inches
Product Width
17.9 Inches
Product Height
17.7 Inches
UPC
850878006860
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
3500 Watts
Surge Watts
4000 Watts
Fuel Type
Gasoline
Rated Amps
29 Amps
Tank Size
2.9 Gallons
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
64
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
224 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
12-Amp DC - Cigarette Adapter
1
NEMA 5-20R - Wall-Type
1
RV Ready 30-Amp
1
