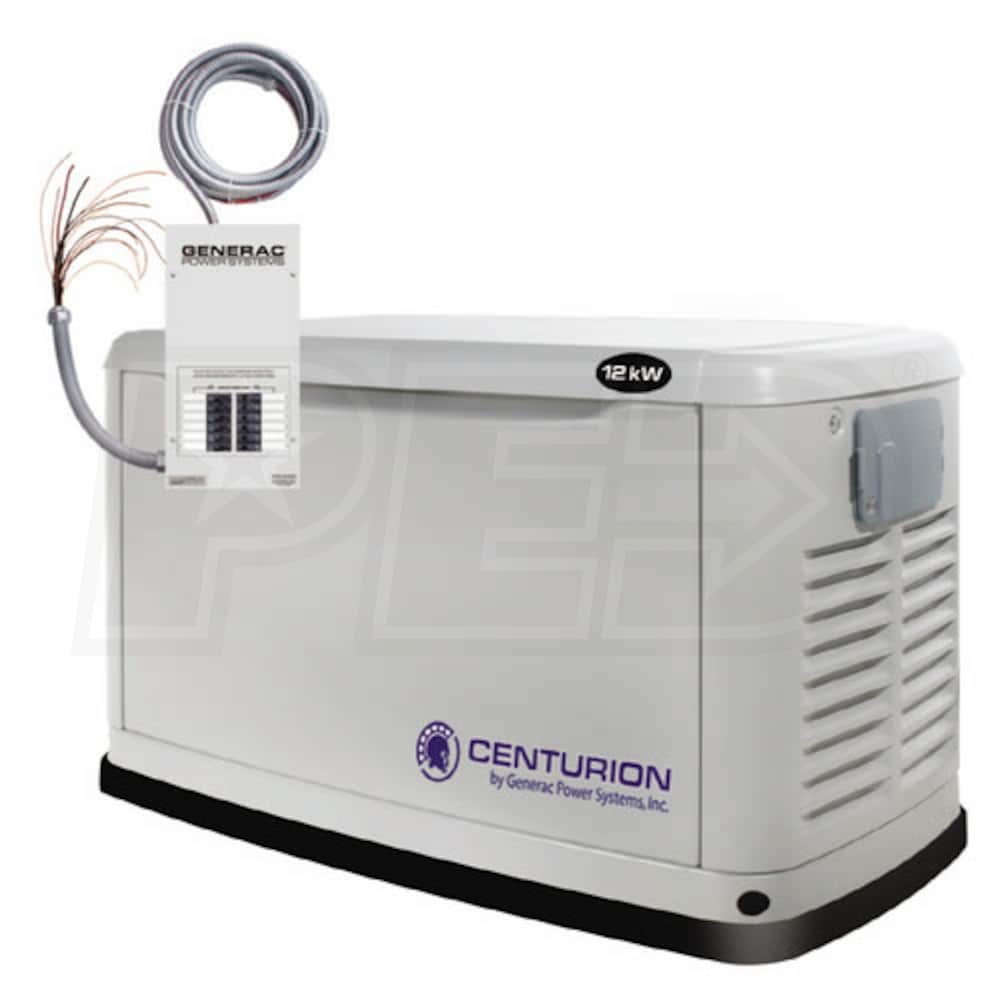

Generac Centurion™ 5536 - 12kW Essential Circuit Standby Generator System
Model: 5536
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(5)
Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Share
  • Product Description
  • 5
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
12,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
12,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac
Features
Features
  • Includes 100-Amp Indoor Automatic Transfer Switch w/ 12 Circuits
  • 5' Pre-wired External Connection Box From Wall to Generator
  • 30' Pre-Wired Indoor Conduit From Switch To External Box
  • 2' Pre-Wired Indoor Conduit From Transfer Switch To Main Panel
  • Composite Mounting Pad and 1’ flexible fuel line connector
  • Emergency Standby Power Generator
  • Designed for homes with basic loads + small A/C requirements
  • Runs off natural gas or LP fuel source
  • Sound level comparable to an idling car
  • Runs at a quiet 63 decibels at 23 feet
  • Generac OHVI Air-Cooled Engine
  • Maximizes engine “breathing” for increased fuel efficiency
  • Automatic Exerciser
  • Allows generator to run a self-test every 7 days
  • Weather Protected Enclosure
  • Shelters generator from weather and reduces exterior noise
  • Two Line LCD Digital Controller
  • Allows for simple user interface for ease of operation
  • Battery Charger Included
  • Battery Sold Separately
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Surge Watts
12000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
12000 Watts
LP Power Capacity
12000 Watts
NG Fuel Consumption @ 50% Load
152 ft³/hr
LP Fuel Consumption @ 50% Load
1.53 gallons/hr
Rated Amps
50 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Battery
Not Included (525 CCA)
Enclosure
Steel
A/C Ton Rating
3-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Pre-Wired (12-Circuit)
ATS Load Prioritizing
Not Included
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac
HP
32 HP
CC
992 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
439 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Transfer Switch Circuits
15A 120V
5
20A 120V
3
30A 240V
1
40A 240V
1
Grade
Style
Run Watts
12,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
12,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac
Features
Features
  • Includes 100-Amp Indoor Automatic Transfer Switch w/ 12 Circuits
  • 5' Pre-wired External Connection Box From Wall to Generator
  • 30' Pre-Wired Indoor Conduit From Switch To External Box
  • 2' Pre-Wired Indoor Conduit From Transfer Switch To Main Panel
  • Composite Mounting Pad and 1’ flexible fuel line connector
  • Emergency Standby Power Generator
  • Designed for homes with basic loads + small A/C requirements
  • Runs off natural gas or LP fuel source
  • Sound level comparable to an idling car
  • Runs at a quiet 63 decibels at 23 feet
  • Generac OHVI Air-Cooled Engine
  • Maximizes engine “breathing” for increased fuel efficiency
  • Automatic Exerciser
  • Allows generator to run a self-test every 7 days
  • Weather Protected Enclosure
  • Shelters generator from weather and reduces exterior noise
  • Two Line LCD Digital Controller
  • Allows for simple user interface for ease of operation
  • Battery Charger Included
  • Battery Sold Separately
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Surge Watts
12000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
12000 Watts
LP Power Capacity
12000 Watts
NG Fuel Consumption @ 50% Load
152 ft³/hr
LP Fuel Consumption @ 50% Load
1.53 gallons/hr
Rated Amps
50 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Battery
Not Included (525 CCA)
Enclosure
Steel
A/C Ton Rating
3-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Pre-Wired (12-Circuit)
ATS Load Prioritizing
Not Included
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac
HP
32 HP
CC
992 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
439 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Transfer Switch Circuits
15A 120V
5
20A 120V
3
30A 240V
1
40A 240V
1
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Surge Watts
12000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
12000 Watts
LP Power Capacity
12000 Watts
NG Fuel Consumption @ 50% Load
152 ft³/hr
LP Fuel Consumption @ 50% Load
1.53 gallons/hr
Rated Amps
50 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Battery
Not Included (525 CCA)
Enclosure
Steel
A/C Ton Rating
3-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Pre-Wired (12-Circuit)
ATS Load Prioritizing
Not Included
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac
HP
32 HP
CC
992 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
439 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Transfer Switch Circuits
15A 120V
5
20A 120V
3
30A 240V
1
40A 240V
1
