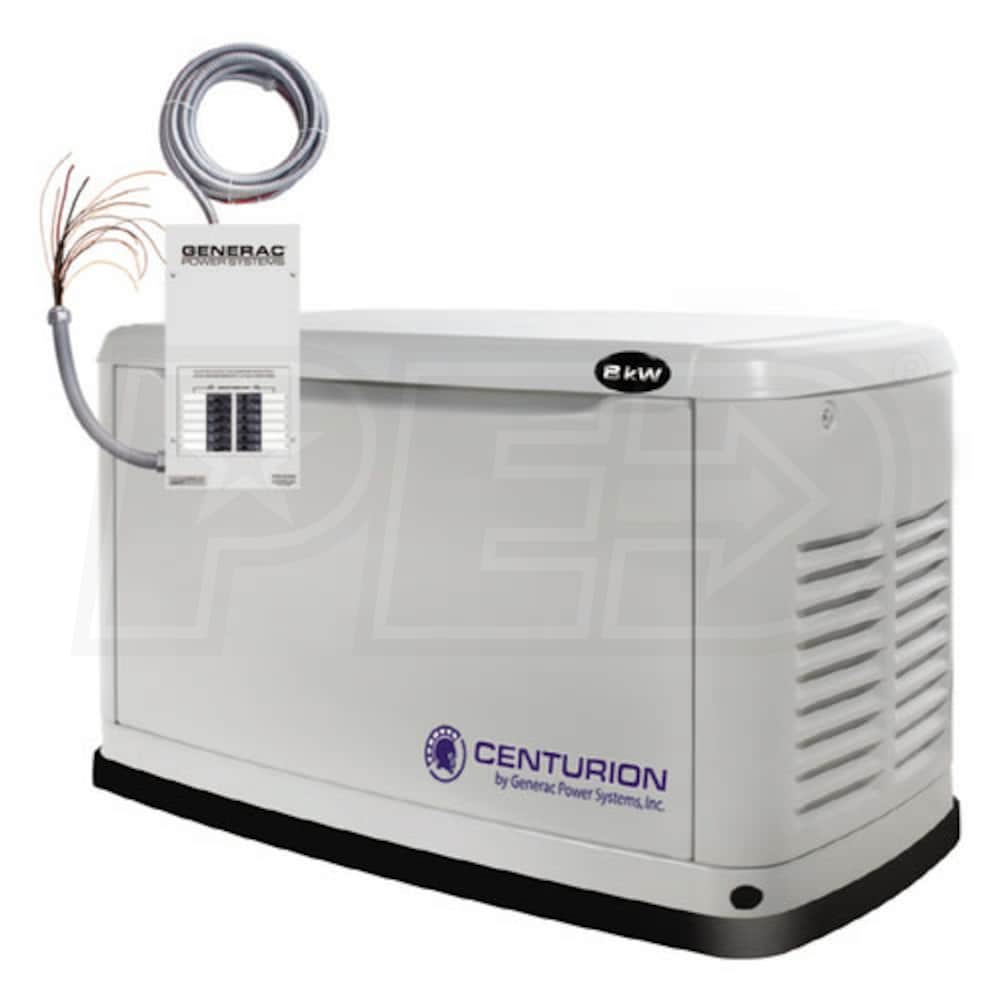

Generac Centurion™ 5534 - 8kW/7kW Essential Circuit Standby Generator System

Generac Centurion™ 5534 - 8kW/7kW Essential Circuit Standby Generator System
Our Price
Compare Prices
Shipping Info
Model: 5534
Product Discontinued
Sorry, this product is no longer available.
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii, California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
8,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
8,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac
Features
Features
  • 100-Amp Indoor Automatic Transfer Switch w/ 8 Circuits Included
  • Pre-wired External Connection Box
  • 30' Pre-Wired Conduit From Transfer Switch To Generator
  • 2' Pre-Wired Conduit From Transfer Switch To Main Panel
  • Composite Mounting Pad and 1’ flexible fuel line connector
  • Standby Power Generator
  • Designed for homes with basic back-up power requirements
  • Runs off natural gas or LP fuel source
  • Sound level comparable to an idling car
  • Runs at a quiet 62 decibels at 23 feet
  • Generac OHVI Air-Cooled Engine
  • Maximizes engine “breathing” for increased fuel efficiency
  • Automatic Exerciser
  • Allows generator to run a self-test every 7 days
  • Weather Protected Enclosure
  • Shelters generator from weather and reduces exterior noise
  • Automatic Shutdown
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Built-in Battery Charger
  • Battery Sold Separately
Specifications
Engine
Engine Brand
Generac
HP
14.8 HP
CC
410 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
8000 Watts
Rated Watts
8000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
7000 Watts
LP Power Capacity
8000 Watts
NG Fuel Consumption @ 50% Load
77 ft³/hr
LP Fuel Consumption @ 50% Load
0.94 gallons/hr
Rated Amps
33 Amps
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
62 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Enclosure
Steel
Max Circuits
8
Battery
Not Included (350 CCA)
A/C Ton Rating
2.5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Pre-Wired (8-Circuit)
ATS Poles
2 Poles
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Transfer Switch Circuits
15A 120V
5
20A 120V
1
30A 240V
1
Overview
Made in USA
Yes
Weight
402 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Grade
Style
Run Watts
8,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
8,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac
Features
Features
  • 100-Amp Indoor Automatic Transfer Switch w/ 8 Circuits Included
  • Pre-wired External Connection Box
  • 30' Pre-Wired Conduit From Transfer Switch To Generator
  • 2' Pre-Wired Conduit From Transfer Switch To Main Panel
  • Composite Mounting Pad and 1’ flexible fuel line connector
  • Standby Power Generator
  • Designed for homes with basic back-up power requirements
  • Runs off natural gas or LP fuel source
  • Sound level comparable to an idling car
  • Runs at a quiet 62 decibels at 23 feet
  • Generac OHVI Air-Cooled Engine
  • Maximizes engine “breathing” for increased fuel efficiency
  • Automatic Exerciser
  • Allows generator to run a self-test every 7 days
  • Weather Protected Enclosure
  • Shelters generator from weather and reduces exterior noise
  • Automatic Shutdown
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Built-in Battery Charger
  • Battery Sold Separately
Specifications
Engine
Engine Brand
Generac
HP
14.8 HP
CC
410 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
8000 Watts
Rated Watts
8000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
7000 Watts
LP Power Capacity
8000 Watts
NG Fuel Consumption @ 50% Load
77 ft³/hr
LP Fuel Consumption @ 50% Load
0.94 gallons/hr
Rated Amps
33 Amps
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
62 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Enclosure
Steel
Max Circuits
8
Battery
Not Included (350 CCA)
A/C Ton Rating
2.5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Pre-Wired (8-Circuit)
ATS Poles
2 Poles
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Transfer Switch Circuits
15A 120V
5
20A 120V
1
30A 240V
1
Overview
Made in USA
Yes
Weight
402 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Specs
+
Specifications
Engine
Engine Brand
Generac
HP
14.8 HP
CC
410 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
8000 Watts
Rated Watts
8000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
7000 Watts
LP Power Capacity
8000 Watts
NG Fuel Consumption @ 50% Load
77 ft³/hr
LP Fuel Consumption @ 50% Load
0.94 gallons/hr
Rated Amps
33 Amps
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
62 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Enclosure
Steel
Max Circuits
8
Battery
Not Included (350 CCA)
A/C Ton Rating
2.5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Pre-Wired (8-Circuit)
ATS Poles
2 Poles
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Transfer Switch Circuits
15A 120V
5
20A 120V
1
30A 240V
1
Overview
Made in USA
Yes
Weight
402 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
