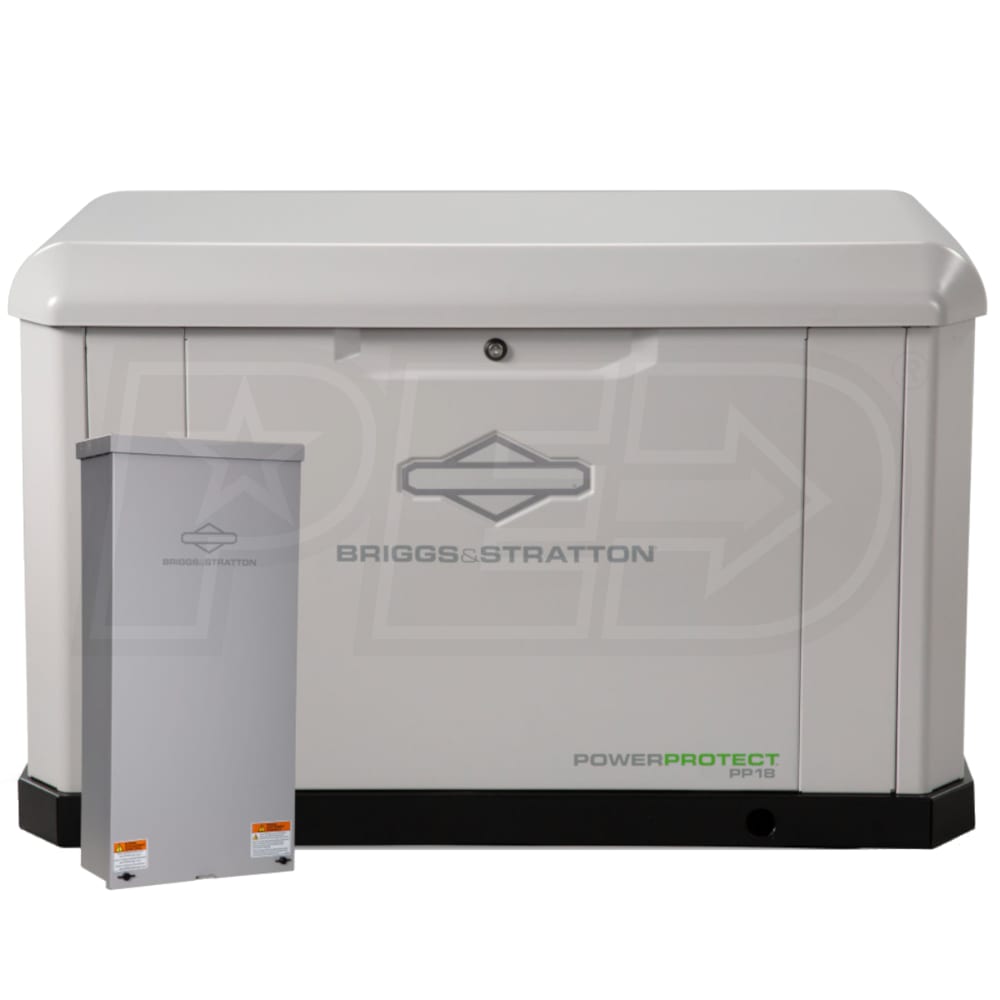

Briggs & Stratton PowerProtect™ PP18 - 18kW Generator System (200A Service Disc. + Symphony Choice Kit )

Model:

040753

Write A Review
$6,272.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 2 In-Stock
Ships Monday, Apr 29th
Shipping to60601
synchrony card logo
$110 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Briggs & Stratton PowerProtect™ PP18 - 18kW Generator System (200A Service Disc. + Symphony Choice Kit )
Briggs & Stratton PowerProtect™ PP18 - 18kW Generator System (200A Service Disc. + Symphony Choice Kit )
Model: 040753
$6,272.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

18,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Briggs and Stratton Vanguard

  • Power Protect™ PP18 - 18kW Air-Cooled Standby Generator System
  • Automatically powers your home in seconds after sensing an outage*
  • 7-Year Limited Warranty
  • Parts, labor and travel included for the entire term
  • NGMax™ Technology
  • Provides more power on natural gas
  • Now get a full 18kW of power regardless of fuel type
  • Symphony® Power Management
  • Prioritize the power needs of your home
  • Symphony® Standby Generator Management App
  • Set and change priorities of high wattage appliances*
  • Monitor your generators status all from the touch of button
  • *Requires modules (Sold Separately)
  • 200-Amp Service Entrance Rated Automatic Transfer Switch
  • Power all circuits without a sub-panel
  • NEMA 3R Indoor/Outdoor enclosure for mounting location flexibility
  • Runs on Natural Gas (NG) or Liquid Propane (LP)
  • Simple field conversion for easier installations
  • Super High Output, Commercial-Grade Vanguard Engine
  • CDI (Capacitive Discharge Ignition) coils for optimum starting and performance
  • Full-pressure lubrication system w/ spin-on oil filter
  • Briggs & Stratton Alternator - Less Than 5% THD
  • Improved frequency (HZ) regulation for cleaner power
  • Automatic Voltage Regulation (+/-1%)
  • Helps prevent damaging voltage spikes
  • Eco-Cise™ Weekly Test Mode
  • Low idle mode w/ 16-second weekly test cycle
  • Dura-Zen™ Coated, Corrosion Resistant Aluminum Enclosure & Base
  • Certified to withstand hurricane-force winds up to 175 mph
  • Flexible Placement (Please Verify Local Building Codes)
  • Tested against tough National Fire Protection Agency standards
  • Can be placed as close as 18" from structure
  • Toolless Panel Removal
  • Designed for easier serviceability and maintenance
  • Independent 3-Stage Battery Charger
  • Provides optimized charge for longer battery life
  • Assembled and Engineered In The USA
  • From global and domestic parts
  • ^*^Suitable for Off-Grid Use or Demand Response Programs^*^
  • Certified for non-emergency use
  • Partner with your utility company's demand response program
  • Receive rewards for helping reduce the overall load on the power grid
  • Requires Starting Battery (Sold Separately)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

040753
specs product image PID-151513
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
465 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
7 Years
Product Style
Standby Generator
Product Length
46.5 Inches
Product Width
26.8 Inches
Product Height
28.4 Inches
UPC
011675407537
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
18000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
18000 Watts
NG Fuel Consumption @ 50% Load
176 ft³/hr
NG Fuel Consumption @ 100% Load
252 ft³/hr
LP Fuel Consumption @ 50% Load
2.2 gallons/hr
LP Fuel Consumption @ 100% Load
3.5 gallons/hr
Rated Amps
70.8 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Hour Meter
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
80 Amps
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Prime Power
No
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
993 CC
Consumer Engine Warranty
7 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
