Features
Grade
Professional
Style
Tow-Behind
Run Watts
65,000 Rated Watts
Surge Watts
65
Starting Watts
Fuel
Diesel
Engine
John Deere
- Industrial Towable Diesel Generator
- Designed & engineered for optimum performance & reliability
- 4.5L John Deere Turbocharged Diesel Engine
- Provides long life, high performance, and great fuel efficiency
- Large 80-Gallon Integral Single-Wall XLPE Fuel Tank
- Provides up to 26 hours of run time @ 1/2 load
- Manual or Automatic Start w/ Start/Stop/Auto Switch
- Can be used w/ automatic transfer switch for standby applications
- Digital Genset Controller w/ Analog Gauges & Meters
- Easily monitor oil pressure, coolant temp and battery volts
- Generator output volts, hertz and amps w/ phase selection
- Voltage Selectable Switch For Main Voltage Selections
- Single Phase 120/240/277 - 3-Phase 208//220/240/416/440/460/480
- Added Features:
- XL Access Doors, Single Point Lifting Eye and Alarm Horn
- High Water Temp Shutdown, Low Oil Pressure Shutdown
- Fuel-Water Separator, Illuminated Control Panel
- Starting Battery Included
- Dual-Axle Trailer w/ Hydraulic Brakes & 2-Inch Ball Hitch
- Crane recommended for delivery
Specifications
Plug Types
TS80T
Overview
Weight
4040 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Towable Generator
Product Length
146 Inches
Product Width
62 Inches
Product Height
87 Inches
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
65000 Watts
Surge Watts
65 Watts
Fuel Type
Diesel
Tank Size
80 Gallons
Run Time @ 50% Load
26 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
HP
99 HP
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
3
CS6364/5 - 50-Amp Twistlock
3
Reviews
(1)
Baldor TS80T Reviews & Ratings
How-To Articles
Electric Generators How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
TS80T
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

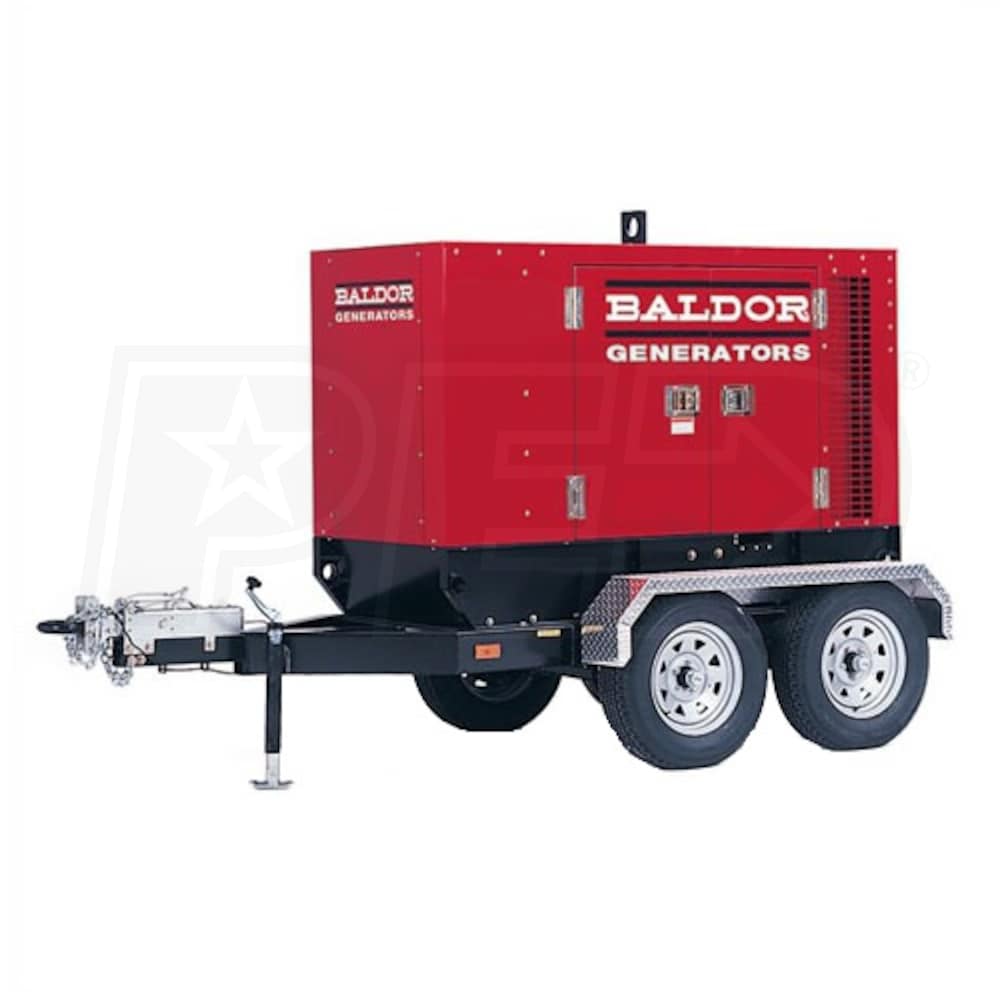

Baldor TS80T - 65kW Industrial Towable Diesel Generator w/ Trailer
