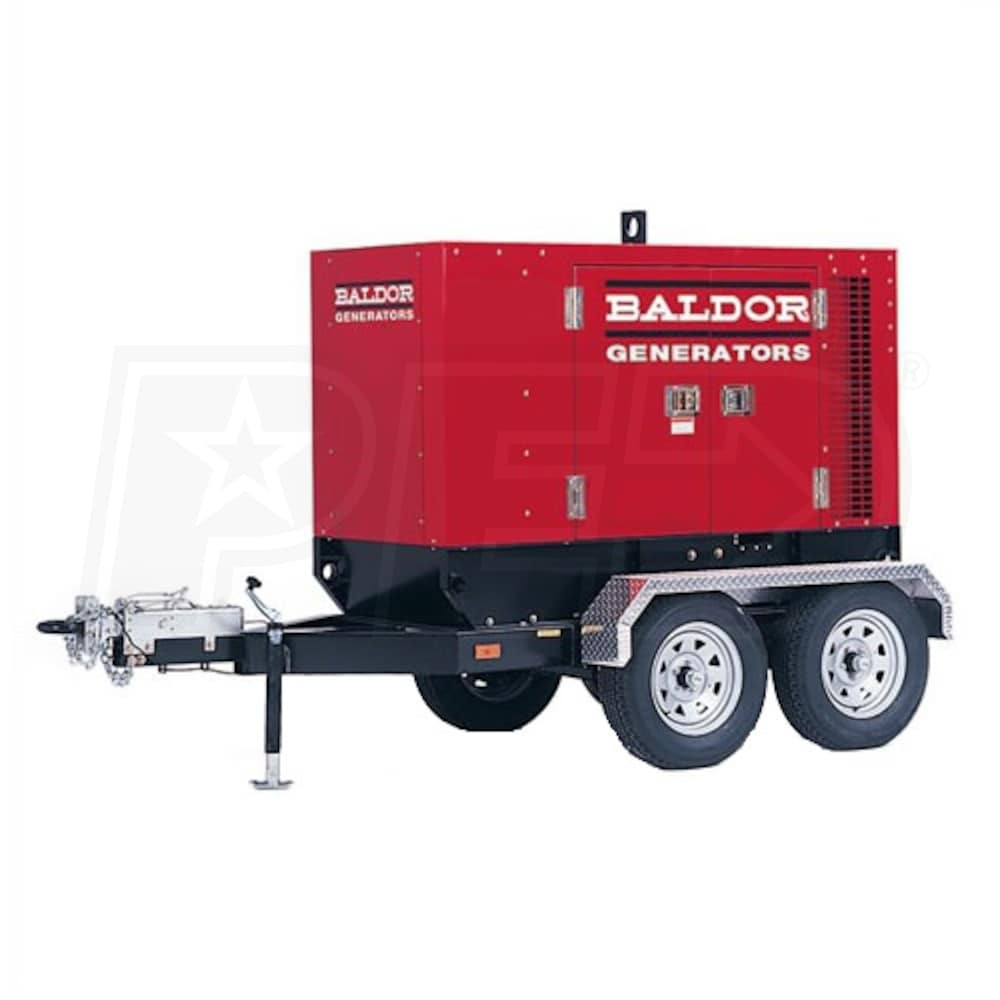

Baldor TS35T - 30kW Industrial Towable Diesel Generator w/ Trailer

• Product Description
• Specs
• Reviews
• Recommended Accessories
• How-To Articles
• Manuals

Grade

Style

Run Watts

30,000

Rated Watts

Surge Watts

30,000

Starting Watts

Fuel

Engine

John Deere

Grade

Professional

Style

Tow-Behind

Run Watts

30,000

Surge Watts

30,000 Starting Watts

Fuel

Diesel

Engine

John Deere

Features

Features

• Industrial Towable Diesel Generator
• Designed & engineered for optimum performance & reliability
• 2.4L John Deere Turbocharged Diesel Engine
• Provides long life, high performance, and great fuel efficiency
• Large 50-Gallon Integral Single-Wall XLPE Fuel Tank
• Provides up to 36 hours of run time @ 1/2 load
• Manual or Automatic Start w/ Start/Stop/Auto Switch
• Can be used w/ automatic transfer switch for standby applications
• Digital Genset Controller w/ Analog Gauges & Meters
• Easily monitor oil pressure, coolant temp and battery volts
• Generator output volts, hertz and amps w/ phase selection
• Voltage Selectable Switch For Main Voltage Selections
• Single Phase 120/240/277 - 3-Phase 208//220/240/416/440/460/480
• Added Features:
• XL Access Doors, Single Point Lifting Eye and Alarm Horn
• High Water Temp Shutdown, Low Oil Pressure Shutdown
• Fuel-Water Separator, Illuminated Control Panel
• Starting Battery Included
• Single-Axle Trailer w/ Hydraulic Brakes & 2-Inch Ball Hitch
• Crane recommended for delivery

Specifications

Plugs

Engine

Engine Brand

John Deere

Starting System

12-Volt Key Start

HP

49 HP

Consumer Engine Warranty

1 Year

Commercial Engine Warranty

1 Year

Engine RPM

1800 RPM

Low Oil Alert/Shutdown

Yes

Cast Iron Sleeve

Yes

Product Specs

Voltage

Voltage Selector Switch

Frequency

60 Hertz

Alternator

Brushless

Surge Watts

30000 Watts

Rated Watts

30000 Watts

Fuel Type

Diesel

Tank Size

50 Gallons

Run Time @ 50% Load

36 Hours

Fuel Tank Material

Metal

Fuel Gauge

Yes

Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

67 dbA

Hour Meter

Yes

Voltage Meter

Yes

Lifting Eye

Yes

Battery

Included (675 CCA)

Grade Type

Professional

Plugs

NEMA 5-20R - GFCI

2

CS6369 - 50-Amp Twistlock

2

Overview

Made in USA

Yes

Weight

2700 Pounds

Product Style

Towable Generator

Product Length

130 Inches

Product Width

62 Inches

Product Height

73 Inches

Consumer Warranty

1 Year

Commercial Warranty

1 Year

Grade

Style

Run Watts

30,000

Rated Watts

Surge Watts

30,000

Starting Watts

Fuel

Engine

John Deere

Grade

Professional

Style

Tow-Behind

Run Watts

30,000

Surge Watts

30,000 Starting Watts

Fuel

Diesel

Engine

John Deere

Features

Features

• Industrial Towable Diesel Generator
• Designed & engineered for optimum performance & reliability
• 2.4L John Deere Turbocharged Diesel Engine
• Provides long life, high performance, and great fuel efficiency
• Large 50-Gallon Integral Single-Wall XLPE Fuel Tank
• Provides up to 36 hours of run time @ 1/2 load
• Manual or Automatic Start w/ Start/Stop/Auto Switch
• Can be used w/ automatic transfer switch for standby applications
• Digital Genset Controller w/ Analog Gauges & Meters
• Easily monitor oil pressure, coolant temp and battery volts
• Generator output volts, hertz and amps w/ phase selection
• Voltage Selectable Switch For Main Voltage Selections
• Single Phase 120/240/277 - 3-Phase 208//220/240/416/440/460/480
• Added Features:
• XL Access Doors, Single Point Lifting Eye and Alarm Horn
• High Water Temp Shutdown, Low Oil Pressure Shutdown
• Fuel-Water Separator, Illuminated Control Panel
• Starting Battery Included
• Single-Axle Trailer w/ Hydraulic Brakes & 2-Inch Ball Hitch
• Crane recommended for delivery

Specifications

Plugs

Engine

Engine Brand

John Deere

Starting System

12-Volt Key Start

HP

49 HP

Consumer Engine Warranty

1 Year

Commercial Engine Warranty

1 Year

Engine RPM

1800 RPM

Low Oil Alert/Shutdown

Yes

Cast Iron Sleeve

Yes

Product Specs

Voltage

Voltage Selector Switch

Frequency

60 Hertz

Alternator

Brushless

Surge Watts

30000 Watts

Rated Watts

30000 Watts

Fuel Type

Diesel

Tank Size

50 Gallons

Run Time @ 50% Load

36 Hours

Fuel Tank Material

Metal

Fuel Gauge

Yes

Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

67 dbA

Hour Meter

Yes

Voltage Meter

Yes

Lifting Eye

Yes

Battery

Included (675 CCA)

Grade Type

Professional

Plugs

NEMA 5-20R - GFCI

2

CS6369 - 50-Amp Twistlock

2

Overview

Made in USA

Yes

Weight

2700 Pounds

Product Style

Towable Generator

Product Length

130 Inches

Product Width

62 Inches

Product Height

73 Inches

Consumer Warranty

1 Year

Commercial Warranty

1 Year

Specifications

Plugs

Engine

Engine Brand

John Deere

Starting System

12-Volt Key Start

HP

49 HP

Consumer Engine Warranty

1 Year

Commercial Engine Warranty

1 Year

Engine RPM

1800 RPM

Low Oil Alert/Shutdown

Yes

Cast Iron Sleeve

Yes

Product Specs

Voltage

Voltage Selector Switch

Frequency

60 Hertz

Alternator

Brushless

Surge Watts

30000 Watts

Rated Watts

30000 Watts

Fuel Type

Diesel

Tank Size

50 Gallons

Run Time @ 50% Load

36 Hours

Fuel Tank Material

Metal

Fuel Gauge

Yes

Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

67 dbA

Hour Meter

Yes

Voltage Meter

Yes

Lifting Eye

Yes

Battery

Included (675 CCA)

Grade Type

Professional

Plugs

NEMA 5-20R - GFCI

2

CS6369 - 50-Amp Twistlock

2

Overview

Made in USA

Yes

Weight

2700 Pounds

Product Style

Towable Generator

Product Length

130 Inches

Product Width

62 Inches

Product Height

73 Inches

Consumer Warranty

1 Year

Commercial Warranty

1 Year
