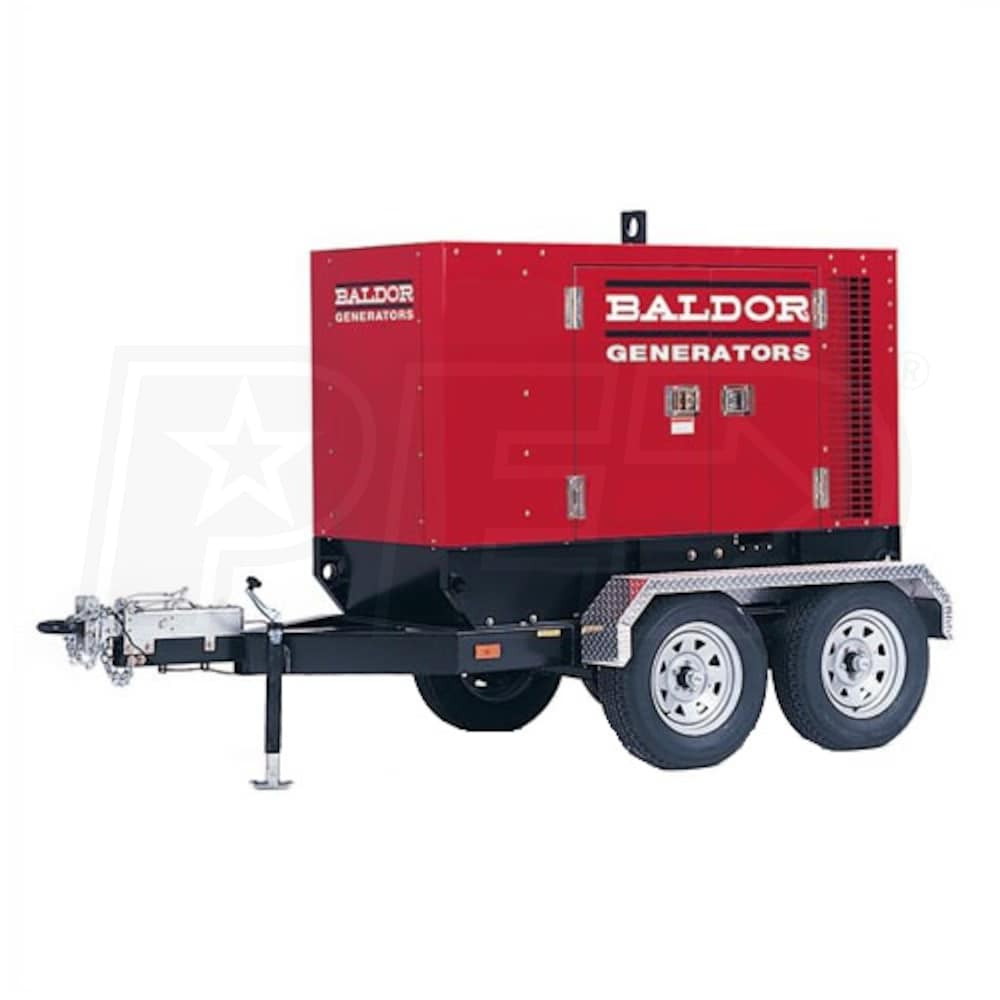

Baldor TS25T - 20kW Industrial Towable Diesel Generator w/ Trailer

Baldor TS25T - 20kW Industrial Towable Diesel Generator w/ Trailer
Model: TS25T
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Free Freight
Free Freight
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
20,000
Rated Watts
Surge Watts
20,000
Starting Watts
Fuel
Engine
John Deere
Features
Features
  • Industrial Towable Diesel Generator
  • Designed & engineered for optimum performance & reliability
  • 2.4L John Deere Turbocharged Diesel Engine
  • Provides long life, high performance, and great fuel efficiency
  • Large 50-Gallon Integral Single-Wall XLPE Fuel Tank
  • Provides up to 50 hours of run time @ 1/2 load
  • Manual or Automatic Start w/ Start/Stop/Auto Switch
  • Can be used w/ automatic transfer switch for standby applications
  • Digital Genset Controller w/ Analog Gauges & Meters
  • Easily monitor oil pressure, coolant temp and battery volts
  • Generator output volts, hertz and amps w/ phase selection
  • Voltage Selectable Switch For Main Voltage Selections
  • Single Phase 120/240/277 - 3-Phase 208//220/240/416/440/460/480
  • Added Features:
  • XL Access Doors, Single Point Lifting Eye and Alarm Horn
  • High Water Temp Shutdown, Low Oil Pressure Shutdown
  • Fuel-Water Separator, Illuminated Control Panel
  • Starting Battery Included
  • Single Axle Trailer w/ 2-Inch Ball Hitch
  • Crane recommended for delivery
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
HP
48 HP
Consumer Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
Diesel
Tank Size
50 Gallons
Run Time @ 50% Load
50 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
67 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included (675 CCA)
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
CS6369 - 50-Amp Twistlock
2
Overview
Made in USA
Yes
Weight
2530 Pounds
Product Style
Towable Generator
Product Length
130 Inches
Product Width
62 Inches
Product Height
73 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Grade
Style
Run Watts
20,000
Rated Watts
Surge Watts
20,000
Starting Watts
Fuel
Engine
John Deere
Features
Features
  • Industrial Towable Diesel Generator
  • Designed & engineered for optimum performance & reliability
  • 2.4L John Deere Turbocharged Diesel Engine
  • Provides long life, high performance, and great fuel efficiency
  • Large 50-Gallon Integral Single-Wall XLPE Fuel Tank
  • Provides up to 50 hours of run time @ 1/2 load
  • Manual or Automatic Start w/ Start/Stop/Auto Switch
  • Can be used w/ automatic transfer switch for standby applications
  • Digital Genset Controller w/ Analog Gauges & Meters
  • Easily monitor oil pressure, coolant temp and battery volts
  • Generator output volts, hertz and amps w/ phase selection
  • Voltage Selectable Switch For Main Voltage Selections
  • Single Phase 120/240/277 - 3-Phase 208//220/240/416/440/460/480
  • Added Features:
  • XL Access Doors, Single Point Lifting Eye and Alarm Horn
  • High Water Temp Shutdown, Low Oil Pressure Shutdown
  • Fuel-Water Separator, Illuminated Control Panel
  • Starting Battery Included
  • Single Axle Trailer w/ 2-Inch Ball Hitch
  • Crane recommended for delivery
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
HP
48 HP
Consumer Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
Diesel
Tank Size
50 Gallons
Run Time @ 50% Load
50 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
67 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included (675 CCA)
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
CS6369 - 50-Amp Twistlock
2
Overview
Made in USA
Yes
Weight
2530 Pounds
Product Style
Towable Generator
Product Length
130 Inches
Product Width
62 Inches
Product Height
73 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
HP
48 HP
Consumer Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
Diesel
Tank Size
50 Gallons
Run Time @ 50% Load
50 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
67 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included (675 CCA)
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
CS6369 - 50-Amp Twistlock
2
Overview
Made in USA
Yes
Weight
2530 Pounds
Product Style
Towable Generator
Product Length
130 Inches
Product Width
62 Inches
Product Height
73 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
