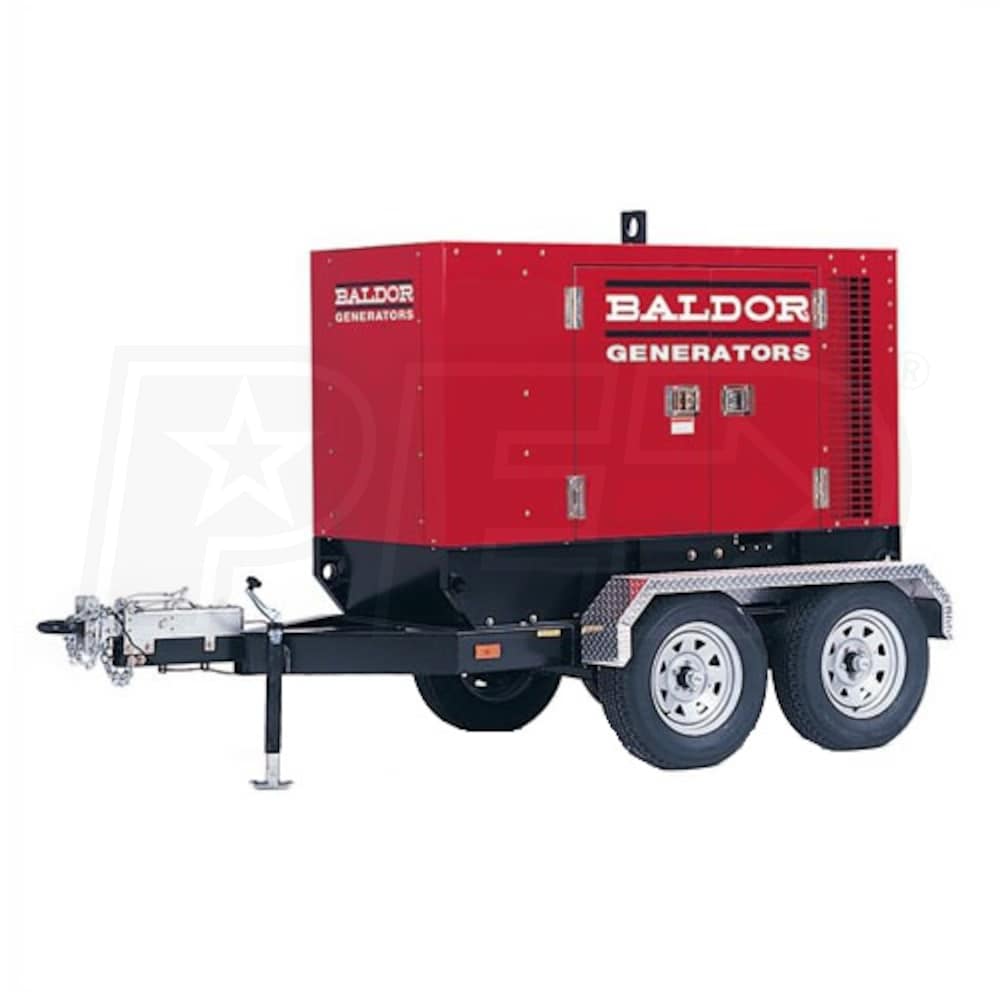

Baldor TS130T - 101kW Industrial Towable Diesel Generator w/ Trailer

Baldor TS130T - 101kW Industrial Towable Diesel Generator w/ Trailer
Our Price
Compare Prices
Shipping Info
Model: TS130T
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii, California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
101,000
Rated Watts
Surge Watts
101,000
Starting Watts
Fuel
Engine
John Deere
Grade
Professional
Style
Tow-Behind
Run Watts
101,000
Surge Watts
101,000 Starting Watts
Fuel
Diesel
Engine
John Deere
Features
Features
  • Industrial Towable Diesel Generator
  • Designed & engineered for optimum performance & reliability
  • 4.5L John Deere Turbocharged Diesel Engine
  • More power, longer engine life & improved fuel economy
  • Large 160-Gallon Integral Double-Wall Metal Fuel Tank
  • Provides up to 38 hours of run time @ 1/2 load
  • Manual or Automatic Start w/ Start/Stop/Auto Switch
  • Can be used w/ automatic transfer switch for standby applications
  • Digital Genset Controller w/ Auto-Shutdowns & Digital Readouts
  • Easily monitor oil pressure, coolant temp and battery volts
  • Engine overspeed & overcrank, low fuel and coolant levels
  • Voltage Selectable Switch For Main Voltage Selections
  • Single Phase 120/240/277 - 3-Phase 208//220/240/416/440/460/480
  • Added Features:
  • XL Access Doors, Single Point Lifting Eye and Alarm Horn
  • High Water Temp Shutdown, Low Oil Pressure Shutdown
  • Fuel-Water Separator, Illuminated Control Panel
  • Starting Battery Included
  • Dual-Axle Trailer w/ Hydraulic Brakes & 3-Inch Ball Hitch
  • Crane recommended for delivery
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
101000 Watts
Surge Watts
101000 Watts
Fuel Type
Diesel
Tank Size
160 Gallons
Run Time @ 50% Load
38 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
HP
158 HP
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
5720 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Towable Generator
Product Length
178 Inches
Product Width
75 Inches
Product Height
102 Inches
Plugs
NEMA 5-20R - GFCI
4
CS6369 - 50-Amp Twistlock
4
Grade
Style
Run Watts
101,000
Rated Watts
Surge Watts
101,000
Starting Watts
Fuel
Engine
