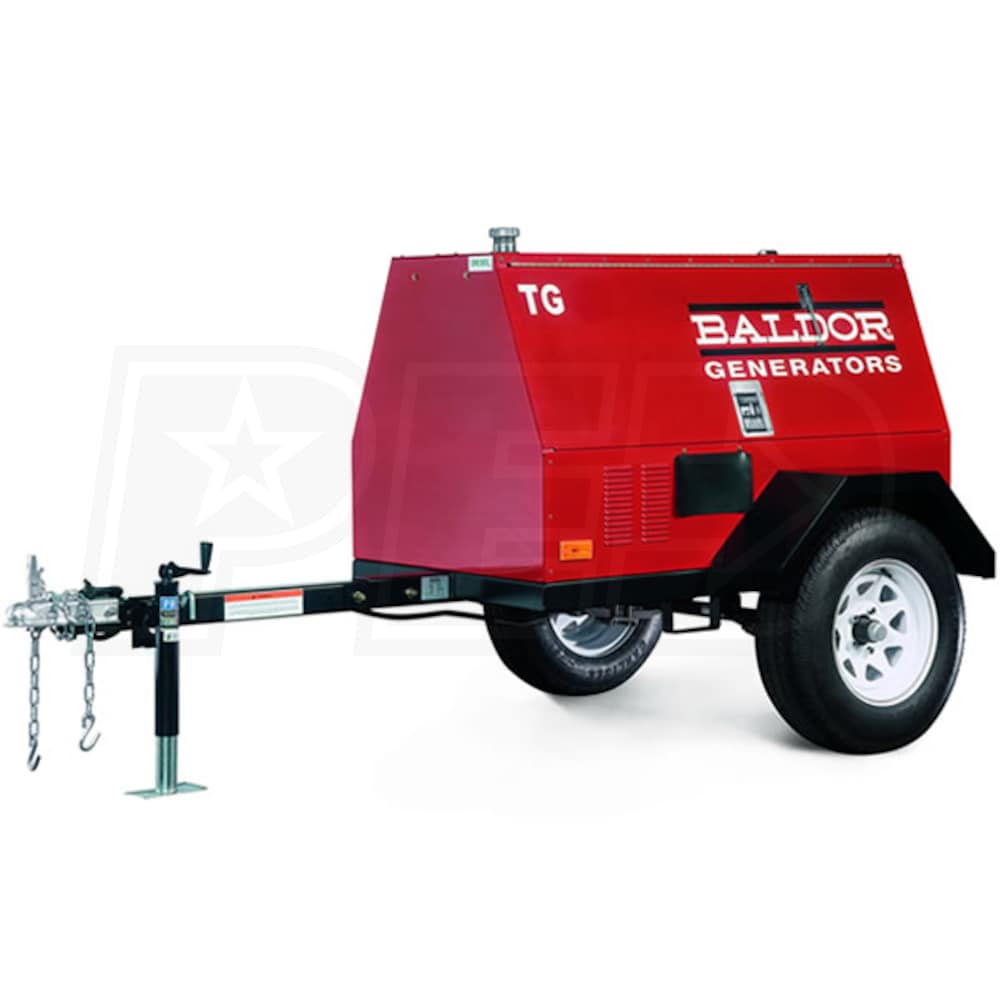

Baldor TG15T - 15kW Industrial Towable Diesel Generator (Light Tower Ready)
Model: TG15T
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
15,000
Rated Watts
Surge Watts
15,000
Starting Watts
Fuel
Engine
Kubota
Grade
Professional
Style
Tow-Behind
Run Watts
15,000
Surge Watts
15,000 Starting Watts
Fuel
Diesel
Engine
Kubota
Features
Features
  • Industrial Towable Diesel Generator
  • Designed & engineered for optimum performance & reliability
  • Accomodates Baldor Light Tower (TGLMT)
  • 4 x 1000 Metal Halide light tower is sold separately
  • 1.6 L Liquid-Cooled Kubota Diesel Engine (Tier 4 Compliant)
  • Fuel efficient design runs at 1800 RPM for long engine life
  • Large 50-Gallon Internal Fuel Tank
  • Provides up to 63 hours of run time @ 1/2 load
  • Brushless Alternator
  • For long life and low maintenanc while providing <5% THD
  • Digital Genset Controller
  • Monitiors engine/genset faults, running hours & battery volts
  • Side Mounted Weatherproof Receptacles
  • Recessed panel design provides protection from the elements
  • Internally Mounted Circuit Breakers
  • Provides added protection to all receptacles on genset
  • Single Axle Trailer w/ Front Leveling Jack
  • Combined with a high quality suspension & saftey lights
  • Includes
  • Intergal Fork Lift Pockets & Engine Starting Battery
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA L14-30R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
15000 Watts
Surge Watts
15000 Watts
Fuel Type
Diesel
Rated Amps
63 Amps
Tank Size
50 Gallons
Run Time @ 50% Load
63 Hours
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Battery
Included
Grade Type
Professional
Engine
Engine Brand
Kubota
Starting System
12v Auto Start
HP
24.3 HP
CC
1647 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
No
Cast Iron Sleeve
Yes
Overview
Weight
1400 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Towable Generator
Product Length
114 Inches
Product Width
54 Inches
Product Height
57 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
2
CS6369 - 50-Amp Twistlock
1
Grade
Style
Run Watts
15,000
Rated Watts
Surge Watts
15,000
Starting Watts
Fuel
Engine
Kubota
Grade
Professional
Style
Tow-Behind
Run Watts
15,000
Surge Watts
15,000 Starting Watts
Fuel
Diesel
Engine
Kubota
Features
Features
  • Industrial Towable Diesel Generator
  • Designed & engineered for optimum performance & reliability
  • Accomodates Baldor Light Tower (TGLMT)
  • 4 x 1000 Metal Halide light tower is sold separately
  • 1.6 L Liquid-Cooled Kubota Diesel Engine (Tier 4 Compliant)
  • Fuel efficient design runs at 1800 RPM for long engine life
  • Large 50-Gallon Internal Fuel Tank
  • Provides up to 63 hours of run time @ 1/2 load
  • Brushless Alternator
  • For long life and low maintenanc while providing <5% THD
  • Digital Genset Controller
  • Monitiors engine/genset faults, running hours & battery volts
  • Side Mounted Weatherproof Receptacles
  • Recessed panel design provides protection from the elements
  • Internally Mounted Circuit Breakers
  • Provides added protection to all receptacles on genset
  • Single Axle Trailer w/ Front Leveling Jack
  • Combined with a high quality suspension & saftey lights
  • Includes
  • Intergal Fork Lift Pockets & Engine Starting Battery
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA L14-30R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
15000 Watts
Surge Watts
15000 Watts
Fuel Type
Diesel
Rated Amps
63 Amps
Tank Size
50 Gallons
Run Time @ 50% Load
63 Hours
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Battery
Included
Grade Type
Professional
Engine
Engine Brand
Kubota
Starting System
12v Auto Start
HP
24.3 HP
CC
1647 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
No
Cast Iron Sleeve
Yes
Overview
Weight
1400 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Towable Generator
Product Length
114 Inches
Product Width
54 Inches
Product Height
57 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
2
CS6369 - 50-Amp Twistlock
1
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA L14-30R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
15000 Watts
Surge Watts
15000 Watts
Fuel Type
Diesel
Rated Amps
63 Amps
Tank Size
50 Gallons
Run Time @ 50% Load
63 Hours
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Battery
Included
Grade Type
Professional
Engine
Engine Brand
Kubota
Starting System
12v Auto Start
HP
24.3 HP
CC
1647 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
No
Cast Iron Sleeve
Yes
Overview
Weight
1400 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Towable Generator
Product Length
114 Inches
Product Width
54 Inches
Product Height
57 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
2
CS6369 - 50-Amp Twistlock
1
