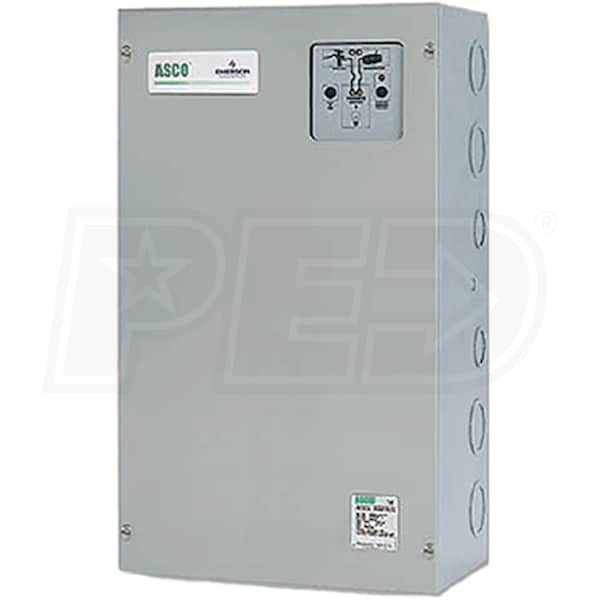

ASCO 100-Amp Indoor Automatic Transfer Switch For Winco Generators (4-Wire Start)

Model:

ULATSA165/100-3

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
ASCO 100-Amp Indoor Automatic Transfer Switch For Winco Generators (4-Wire Start)
ASCO 100-Amp Indoor Automatic Transfer Switch For Winco Generators (4-Wire Start)
Model: ULATSA165/100-3
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

100

Load Mgmt.

Voltage

120/240 Single-Phase

Enclosure

NEMA 1R

  • ASCO 165 Series 100-Amp Automatic Transfer Switch
  • Senses power failure and instructs standby generator to start
  • True Double-Throw Contacts w/ Inherent Mechanical Interlocking
  • Prevents connection of generator and utility source
  • Generator Exerciser
  • Automatically self-tests every 14 days
  • Makes sure you're generator is ready to run when you need it most
  • User-Friendly Control Panel
  • Easy to understand symbols & visual indicators
  • Built-In Automatic Digital Diagnostic Monitoring System
  • Provides status on potential system problems
  • LED System Status Indicators
  • Displays availability of both power sources & switch positions
  • Designed For Winco Standby Generators w/ 4-Wire Starting
  • Will NOT Work w/ Standby Generators w/ 2-Wire Starting
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ULATSA165/100-3
specs product image PID-9280
Overview
Weight
42 Pounds
Consumer Warranty
1 Year
Product Length
24 Inches
Product Width
14.25 Inches
Product Height
8 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 1R
Transfer Switch Style
Standard Installation
ATS Service Disconnect
No
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
