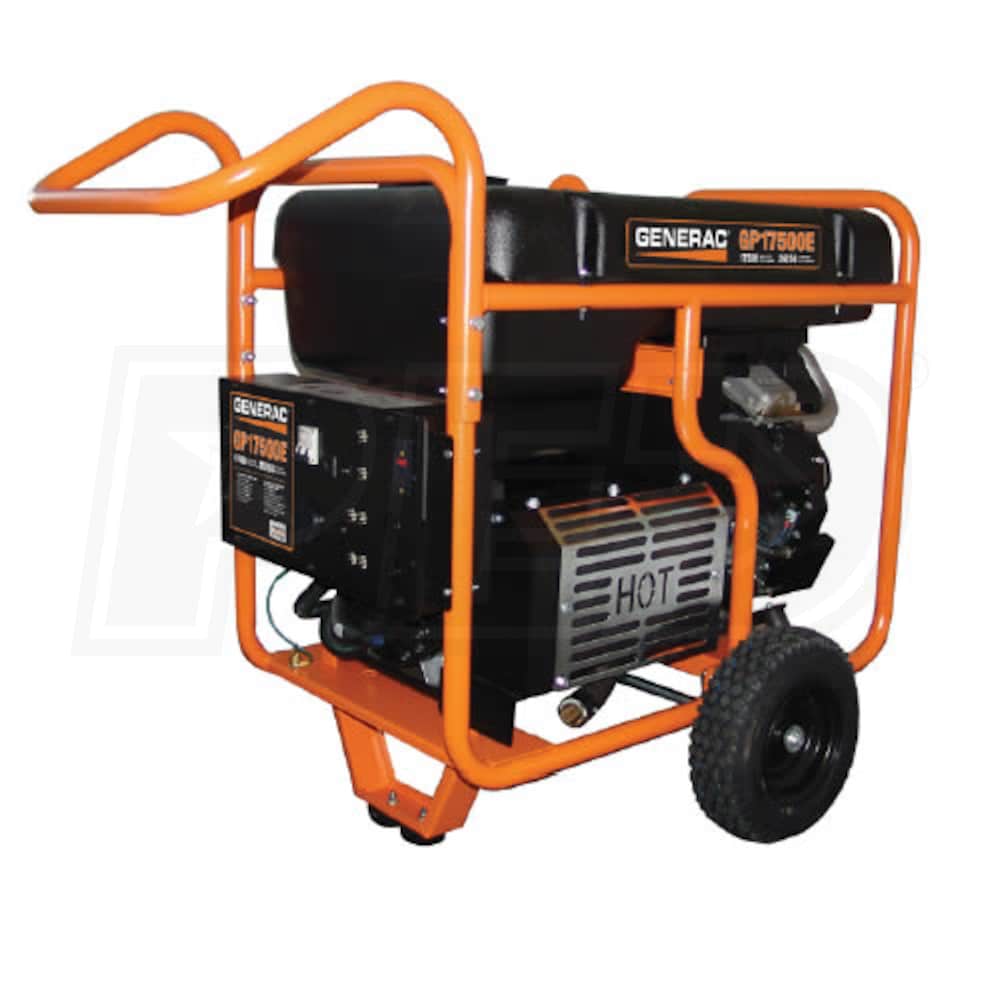

26,250 Surge Watts •Powerful enough to start a 5 ton A/C unit •Will also start two 4-ton A/C units
Electric Start (12VDC 365-CCA Battery Included) •Starts with a simple press of a button •Easily charge the battery during use via 12-Volt outlet on panel
Automatic Idle Control •Reduces noise, increase fuel efficiency and extends life
Full Pressure Lubrication •Eliminates wear during startup and extends life
16-Gallon Gas Tank •Generates up to 10 hours of electricity at half load
Portablility Kit •Includes 12" all terrain tires and heavy-duty lifting eye
This unit is NOT for sale in California
Model
Model Number:
5735
UPC:
696471057355
Manufacturer:
Generac
Made in USA:
Yes
Engine
Brand:
Generac
Starting System:
12-Volt Button Start
HP/CC:
992 cc
Consumer Engine Warranty:
2 Years
Commercial Engine Warranty:
1 Year
Engine RPM:
3600 RPM
Low Oil Alert:
Yes
Cast Iron Sleeve:
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency:
60 Hertz
Alternator:
Brush
Auto Voltage Regulation:
Yes
Fuel Type
Gasoline
Rated Amps:
73 Amps @ 240 Volts (Single Phase)
Portability Kit:
Pneumatic Wheels
Tank Size:
16 Gallons
Run Time (50% Load):
10 Hours
Fuel Tank Material:
Plastic
Fuel Gauge:
Yes
Idle Control:
Yes
Hour Meter:
Yes
Voltage Meter:
No
Lifting Eye:
Yes
Battery:
Included
Overview
Weight:
400 Lbs. (181.44 kilograms)
Dimensions:
48.5L x 30.75W x 38.5H (123.19 x 78.11 x 97.79 cm)
Q: Hello, I bought this unit from you last fall, and need to buy a cover. Th X-lg listed under accessories is too small. Please let me know if you have one that fits available. by Brian Ordelheide from Virginia on April 02, 2012
A: Actually the X-Large cover fits perfectly as I have fit tested these covers for all the models we offer.
Q: Hey Jim, I have the GP17500. How do you charge the battery? In the package there is a 12v start cable. Does this hook up to a trickle charger or is some way else to charge the batt when not in use?
Thank you, Anthony Norcia by Anthony Norcia from Connecticut on February 18, 2012
A: The generator charges the battery when in use and the generator should be started every 7 days per the owner's manual. This properly lubricates the engine, keeps fuel moving through the carburetor to prevent clogging and it charges the battery.
Otherwise, you need to follow the long term storage process according to the manual and then us a trickle charger on the battery to keep it charged.
Q: What is the maximum output in watts out of the NEMA 14-50R outlet I can get from a XP 10000E Generac Generator by Michael Teixeira from Connecticut on January 08, 2012
A: Any 50A outlet, receptacle, cord or switch has a maximum of 12,500 watts....Amps x Volts = Watts. by Jim, Product Expert
Q: My home has 2 x 100-amp panels. Some of the circuits I want to energize are in both panels. Can I hook this beast to both panels at the same time, one through the 240/30amp outlet and the other through the 240/50 amp outlet? by Tom Brignac from Virginia on September 01, 2011
A: In theory, yes. However, you'll need two transfer switches to do it.
Also, the generator produces a maximum of 73-Amp of power.
Naturally, you won't be able to fully maximize the 50-amp and 30-amp outlets.
We recommend connecting the larger 50-Amp outlet to large appliances like an air conditioner.
Instead of a second 30-amp power transfer system, you could also run extension cords to the main appliances in the second, smaller panel.
Here's a link to our 50-Amp Power Transfer Systems:
Q: Ref: Generac Model 5735 We have a 200 AMP service and would like to use the 100 AMP manual transfer switch. Does the 100 AMP switch work the same way as the Kit50-25SB? Is the reason for the price difference the circuit breakers for the 100 AMP switch?
by Ken McDaniel from Louisiana on May 04, 2011
A: Yes, the TRC1005C operates the same as the Kit50-25SB except the Kit includes the breakers, power inlet box and power cord. All of these items would need to be purchased when selecting the TRC1005C.
Q: Can the Generac model 5735 (17,500 KW)be converted to tri-fuel? Does Generac offer a conversion kit for this? by Gary from Arkansas on April 21, 2011
A: This model is specifically engineered to operate on gasoline only and Generac does not offer a conversion kit. If converted to different fuel type you will void the manufacturers warranty which we do not recommend.
Q: I just received the generator I purchased from you (Generac GP5500 - 5500 Watt Portable Generator) and it comes with a bottle of oil. It does not say on the bottle what type it is. 30 weight or 10w30? Do you know so that it is the proper oil to use for the current temperature. Thanks, Larry by Larry from Ohio on March 26, 2011
A: Generac uses 10W30 in their kits that get sent with the portable generators. by Jim, Product Expert
Q: Will this fit a Generac 17,500 portable? by Scott Beaumier from Oklahoma on February 24, 2011
A: Yes, this cover has been tested and will fit the Generac GP17500E generator. by Jim, Product Expert
Q: Hi Jim. I bought a 17.5 kw Generac and want to use it to power the whole house. Is there a way to get more than 50 amps to a transfer switch.? What transfer switch would you choose? by Peter Matheson from Nevada on February 19, 2011
A: The best way to connect to your home panel and have the ability to use all your circuits is to use a manual transfer panel based on the amperage size of your existing panel. (100A or 200A) This transfer panel would be mounted between your meter and your main panel breaker so you have control of all of your circuits. You still need to control them according to the load without exceeding the maximum of 12,500 watts through the 50A outlet. In a normal situation no one normally uses anywhere near 12,500 watts at any one time. The link below will show you some of the switches we have to give you more options.
Q: Most transfer switches I have found have a max wattage of 12,500. What transfer switch do you recommend with this monster of a generator (Generac GP17500E)? by Greg from Ohio on February 07, 2011
A: It is correct that the largest transfers switches have 12,500 watts max and due to the largest outlet on the generator (50A) it too has the same issue when connected to a manual transfer switch which is why Generac included a multitude of outlets on the unit so even when you are connected to a manual transfer switch (50A) you can still utilize the other outlet.
Main rule of thumb is that when you size a generator you want to size it to 80% of the units capacity so when the large loads kick in, the generator has enough capacity to handle the surge and still have sufficient power available so the voltage does not drop off which could damage sensitive electronics.
12,500 running watts is a lot of power to have available and you could most likely run your entire home with it. I recommend using a whole house type manual transfer switch which gets installed between your meter and your main breaker which allows you to control all of your circuits and with proper usage your whole house is accessible.
The following switches would be a good recommendation based on your panel size.
Q: We are looking for a generator that is going to power most of the house to include the HVAC unit (forced hot air), well pump, and electric range/oven, and microwave. My intention is to have it professionally wired into the service panel. We can't go with a LP/NG fired model due to budget constraints. Do you think this is the model for us? by Justin from Virginia on January 31, 2011
A: If a standby generator is beyond your budget, and you'd like to power most of your home, this is a great generator. In most cases, you'd even have enough power to run your AC during summer power outages.
Q: How does this generator start in cold weather with the electric start? What is the difference between OHV engine & Generac's OHVI engine? by Daryl Hammond from Ohio on January 17, 2011
A: Portable generators are normally stored inside and the B&S 30471 comes with a float style battery charger which is plugged into the generator when not in use. This allows the generator battery to have a sufficient charge when the generator is needed to start.
An OHV (Overhead Valve) engine is compact designed and generally makes the unit operate quieter. The Generac OHVI (Overhead Valve Industrial) engine is built robustly with premium power and high performance and comes with a fully pressurized oil lubrication system and spin-on filter. by Jim, Product Expert
Overall Rating
4.9
(Based on 35 Reviews)
Sort By
Jim Baugher, Product Expert Electric Generators Direct
Jim's Recommendation
An extremely popular generator in Florida. Most homes in Hurricane country are powered entirely by electricity -- no natural gas or propane fuel source.
Standby generators simply don't work in these situations because they need natural gas or propane to generate electricity.
Many homeowners would like a standby generator, but they don't want to install an unsightly propane tank in their back yard. Their only option is a portable gasoline-powered generator with a big gas tank.
The Generac GP17500E - 17,500 watt generator is the preferred choice because it's the largest portable generator available, generating enough juice to run a 5-ton air conditioner and a bunch more appliances.
March 30, 2012
Eric
Works As Advertised
Bought the setup from Generators Direct. I am very happy. We worked out what I needed etc. Generator works as advertised. KEEP the BOOKLET from MFG. You will need it for some fine tuning as it runs. You have to purchase the liftgate for Delivery. Freaking heavy does not cover the description.
Assembly is fairly easy with a friend or patient wife with a good back. You have a little assembly. Do buy MID to Premium gas for the puppy or else hello repairs over time. The ethenol is not your friend for small motors. It fired first time. I have been starting it every week and running it for around an hour plus or minus. It is loud. Guess what it's freaking huge.
As far as Gen Dir goes they did what they said. Was done way I expected. Money well spent. Got warm fuzzies as far as company goes. Good Luck
Bought the setup from Generators Direct. I am very happy. We worked out what I needed etc. Generator works as advertised. KEEP the BOOKLET from MFG. You will need it for some fine tuning as it runs. You have to purchase the liftgate for Delivery. Freaking heavy does not cover the description.
Assembly is fairly easy with a friend or patient wife with a good back. You have a little assembly. Do buy MID to Premium gas for the puppy or else hello repairs over time. The ethenol is not your friend for small motors. It fired first time. I have been starting it every week and running ... more
February 23, 2012
Bill
Generac 17,500 kW
Got lots of technical support in making the slection. Arrived promptly, setup was easy, a bit heavy had to use leverage to get the wheels on the axle ends. Once that was done the rest was no sweat. Started right up and ran my hangar door up and down with ease. Would recommend this generator to other pilot aircraft owners with electric hangar doors. Ever come back to the airport and find the power off and bad weather on the horizon. May be your car is inside the hangar as well. This is a great solution.
January 24, 2012
Mary Yelm, WA
Best Generator Ever!!!
I just survived 6 days without power and this generator kept us and our friends warm, with tv (plus surround sound), with an oven, and with clean laundry the whole time. I have an 1800 sq. ft. house with the only heat source being a heat pump. So a generator is an absolute must to keep us up and running. We had to turn the heat down to run the dryer but other than that I could have everything on as if nothing was wrong. If you want the best portable generator on the market then look no further.
I also loved that these guys will deliver it right to your door.
January 18, 2012
Maryann Arrien Putnam Valley, NY
Inlet Box Connection Too Tight - Wouldn't Twist
EGD Responds: We have experienced this before with 50-Amp power inlet boxes. Usually this only occurs the first few times you use the plug. Overtime, the plug will go in much easier. We offer a lube that is specifically designed for these type of connections. www.electricgeneratorsdirect.com/Camco-55013/p7457.html
As another review said, it is very tight in there for the wires. The inlet model I have ending in a 4, (model 64654) requires you to take the connector and the flip cover off, wire it, and reassemble with 3 screws in the bottom. Getting the 3 screws back in the threaded holes was tough. I had to take the unit off the wall, and brace the top of it against the house to get the 3 screws to go back in. If you have no other choice than this inlet box, be sure to trim the wires back as much as possible so you don't have to fight their spring tension.
The real problem came when I went to go plug the female end of the 50 amp generator cord into the inlet box. Try as I might it would not go in more than about 1/2 inch, and was not making a connection. I called Gen Tran and they said you really have to push it in hard to get it in. I made sure that the wires were not affecting the connector - they were pushed in and dressed adding no tension. Ultimately what I had to do was take the inlet box off the house again and brace the top of the box against the side of the house, and hit the end of the female connector 6 times with a hammer. I was happy to see it finally go in, but then it was so tight that it wouldn't even twist. So I am concerned how good a connection this is making. I fed current out from my panel, and I get proper voltage readings at the other end of my generator cord, but under load I wonder if that connection will heat up because it didn't twist like it's supposed to. But I figure it will get me through this winter until I can replace the 50 amp inlet box with another model.
The connector is in so tight that I just left it in there, and coiled the generator cord and put it in a contractor bag on the side of the house. But this is not doing what an inlet box is intended for. That's the connection that you want to make and break easily, and if anything leave the other end of the cord (in my case the straight blade 50 Amp connector) plugged into the outlet of the generator. On the Generac GP17500E the connector is on the bottom of the panel, so I'll be probably laying down in the snow to connect it. My original intention was to leave that connected and store the cord on top of the genny under its storage tarp. Ideally it's best to keep the cord indoors, though, because when it's very cold it's going to be hard to unbend that 6/4 SOOW cable.
In conclusion, if you are desperate for an inlet box, and this is the only one available you can make it work, but the design is just not the best. Gen Tran, to its credit, took down my comments so maybe it will affect other designs.
The Generac GP17500E Generator, by the way, assembled and started up like a charm. And it wasn't even very loud considering how powerful it is. Be sure to put in the foam pre-filter over the paper air filter, and provide a good ground for the genny. I found a nice 8' long copper coated grounding rod (a.k.a. electrode) at Home Depot for $11 and a brass clamp that fits on it with a screw connection for the ground wire.
EGD Responds: We have experienced this before with 50-Amp power inlet boxes. Usually this only occurs the first few times you use the plug. Overtime, the plug will go in much easier. We offer a lube that is specifically designed for these type of connections. www.electricgeneratorsdirect.com/Camco-55013/p7457.html
As another review said, it is very tight in there for the wires. The inlet model I have ending in a 4, (model 64654) requires you to take the connector and the flip cover off, wire it, and reassemble with 3 screws in the bottom. Getting the 3 screws back in the thre... more
December 02, 2011
Bekim Mt. Kisco, NY
Not Bad, Works As It Should
I ordered a couple of these a few weeks ago and just had them wired up. Connecting them was pretty straight forward so as to not make a mistake. The only concern I have is when I ordered them I got a different type made by PASS & SEYMOUR. I didn't want to send them back and make a big deal so I kept them. They seem to be okay.
September 20, 2011
Mike Ewing, NJ
GP 17500E
Worked out of the box as advertised zero problems used as power after Irene hit us in NJ. Had electrician hook up transfer panel and connected: 2 refrigerators 1 freezer, 1 wine fridge, 1st floor lighting and most outlets, 3 10K BTU window airs, Well pump (220v 20amp), Heater (oil with baseboard), basement lighting. Tested under load at 13,225 Watts gen held load without a problem. This is a keeper and I have recommended to others
September 14, 2011
James Franklin, VA
Upgrade
I was using a smaller generator to power essential circuits in my house after Irene, but found that to be tiresome to only have the freezers and a few lights on, so I decided to upgrade to the Generac 17.5 KW and I AM PLEASED WITH THE DECISION! This unit is AWESOME!!
It arrived as scheduled and was simple to assemble and set up. I had an electrician come and check all wiring and make sure everything worked as it should. I am now happy and assured that the next time the power goes out my wife and I can enjoy most of the appliances etc. that we enjoyed before the outage. Thank you EGD for your help!!
I was using a smaller generator to power essential circuits in my house after Irene, but found that to be tiresome to only have the freezers and a few lights on, so I decided to upgrade to the Generac 17.5 KW and I AM PLEASED WITH THE DECISION! This unit is AWESOME!!
It arrived as scheduled and was simple to assemble and set up. I had an electrician come and check all wiring and make sure everything worked as it should. I am now happy and assured that the next time the power goes out my wife and I can enjoy most of the appliances etc. that we enjoyed before the outage. Tha... more
September 13, 2011
Peter Pahrump, NV
Peter from Pahrump
The gas caddy is just what we needed for refueling our new 17.5 kw generator. A small part was missing in the box but was replaced by scepter very promptly. Great product, well made. Now we are ready for anything nature ( or others) throw at us.
September 04, 2011
Tom South Salem, NY
Great Generator
I purchased this generator after Hurricane Irene. I choose this generator because I don't have the ability to install a stanby unit. I don't have natural gas in my area and I didn't want a large propane tank in my yard and it was too costly to burry one.
The generator was delivered as advertised and in perfect condition. I unpacked it and assembled it myself. I would recommend that you have a second person to help. Prior to having the generator delivered I had an electrician install a manual transfer switch so I can use the 50 amp outlet and connect into my panel.
After assembly I started it up and connected it and it worked just fine. It is a beast of a generator weighing in at 400 pounds and that's before you fill the 16 gal fuel tank. It is a gas guzzler but that's the trade off if you don't have propane or natural gas. I would definitley recommed this generator. It seems to be very sturdy and durable.
Only time will tell how it will perform but as of now I am happy with my purchase. Generators Direct was extremely easy to deal with and they sent me all of the tracking information. Plus I bought a few accessories from them and the nice thing is whenever I need a maintenance kit for the generator I can get it from them.
I purchased this generator after Hurricane Irene. I choose this generator because I don't have the ability to install a stanby unit. I don't have natural gas in my area and I didn't want a large propane tank in my yard and it was too costly to burry one.
The generator was delivered as advertised and in perfect condition. I unpacked it and assembled it myself. I would recommend that you have a second person to help. Prior to having the generator delivered I had an electrician install a manual transfer switch so I can use the 50 amp outlet and connect into my panel.
... more
September 01, 2011
Daniel Mechanicsville, VA
Great
Got my unit from EGD about 3 years ago and love it so far. Had several storms during this time with week long power outages and it worked flawlessly, winter and summer. Power has been out all week due to Irene and the generator has been chugging along as needed, running the ac, TV, dishwasher, stove, washer, whatever we have needed. It does drink gas but that is my trade off, I would say between 1 and 1.5 gph under normal use for us. Am looking forward to getting our power back but until then this has helped alot.
August 24, 2011
Bill Trophy Club, TX
Generac 5375
I received the generator, unpacked and inspected it, assembled it with a little effort, started it (ran fine) had a master electrician hook it up to our breaker panels, tested it successfully, and am very satisfied.
The electrician did not think it would handle the starting load on our largest AC (6000 watts), especially during the summer when the head pressure was high. It handles one on the smaller ones with no problems, along with two refrigerators, lights, plugs etc.
It is a good product.
August 23, 2011
Jeff Stillwater, OK
I just bought my 2nd one...
We were running (9) 20 amp circuits now we can run (18)...
July 02, 2011
Dan Virginia Beach, VA
As Advertised
I've had the generator for 1 month and have not needed it but I'm sure I'll use it this hurricane season. The unit made it to my area in 2 days but due to a weekend it was delivered on Monday, which was fine with me. The ordering and delivery was FIRST RATE and I would recommend this company to anybody looking at purchasing a generator.
May 21, 2011
Ken Terry, MS
Fantastic Generator !!
This thing is awesome!! Will power the whole house........ AC, electric stove, dryer included. Well built, easy to set up and operate... If you want a generator that will do the whole job, this is it..
April 30, 2011
George Gilmour, IL
As Advertised
Ordered this generator after a 3 day mid-winter outage left me scrambling to keep the house and well house from freezing up. I just installed it a few weeks ago.
Hurricane force winds knocked the power out Thursday morning, with a Tuesday estimated restore. The generator started right up, and powered my entire marina business almost transparent to the fact I was on back up power. I shut it down every 6 hours to check the oil and re-fill the fuel tank.
The oil level did not change in 49 hours of running. Highly recommended to anyone who wants gasoline power, and does not want to commit to a bolt down type of unit.
Ordered this generator after a 3 day mid-winter outage left me scrambling to keep the house and well house from freezing up. I just installed it a few weeks ago.
Hurricane force winds knocked the power out Thursday morning, with a Tuesday estimated restore. The generator started right up, and powered my entire marina business almost transparent to the fact I was on back up power. I shut it down every 6 hours to check the oil and re-fill the fuel tank.
The oil level did not change in 49 hours of running. Highly recommended to anyone who wants gasoline powe... more
April 29, 2011
Mario Jessup, MD
Generator
I have not use the generator yet, I got it especially for the winters. I have started it a few time and like the way it runs.
April 03, 2011
Charles Mcpherson, KS
Power On The Job Site
I purchased the generator to run insulation equipment. So far it has performed great.
March 23, 2011
STEVE Rockville, MD
READY TO GO!
the 5735 was delivered 5 days after I ordered it. The trucker put it right next to my house. My son and I assembled it in about an hour and wheeled it to the back yard.
I had my electrician hook it up to my panel through the 50 amp outlet with an interlock so my whole house can run and had my ac, oven, water heater, home theater and other circuits on and it didn't flinch. I built a pressure treated platform and a little shed around it with access doors which hides it and cuts the sound in half.
The whole project cost me less than $4000! I hope I never have to use it (I will as I lose power several times a year, sometimes for days) but bring it on - I'm ready to go!!
the 5735 was delivered 5 days after I ordered it. The trucker put it right next to my house. My son and I assembled it in about an hour and wheeled it to the back yard.
I had my electrician hook it up to my panel through the 50 amp outlet with an interlock so my whole house can run and had my ac, oven, water heater, home theater and other circuits on and it didn't flinch. I built a pressure treated platform and a little shed around it with access doors which hides it and cuts the sound in half.
The whole project cost me less than $4000! I hope I never have... more
March 19, 2011
Craig New York, NY
Solid but deficiencies
Arrived just before Hurricane Igor hit Bermuda September 2010. I ran a single 30amp cord to 30 amp plug in wired into my mains. Ran for 21 hours like a champion, powered all essential systems, fridges freezers, water pump for showers plus some luxuries, TV, single split system AC for cooling and the like. It is great in that respect. However here are some things to be aware of, some of which I would have expected better from Generac, so thought I would share.
1. Two people needed for set up, this thing is heavy and getting the wheels on requires muscle.
2. It is too heavy to really be called portable. Unless smooth and level ground will need at least two strong people to move it and stairs are out of the question.
3. Generac says it is not weatherproof. Loads of health warnings saying it cannot be run inside, then some fine print that says don't run in the rain. This is downright frustrating, end result: unless you have built a shelter for it, it can only be used for sunny emergencies! Hurricanes usually come with rain!
4. Neither Generac nor any other provider that I could find sell a shield/shelter for a unit this size. So you have to build one. Not that I can't but...
5. Better still, invest the R&D to weatherproof it. I would have thought a weatherproof hinged cover for the control panel would be pretty straightforward.
6. Generac should sell a storage cover, this website should list it as an accessory.
7. Depending on the load this unit will consume a lot of gas. For 48hours use at half load (which I reckon is the maximum we could be without access to nearby operating gas stations) I figure on a full tank (16 gals) plus another 80 gallons. The most efficient method I have found is 6 gallon jerry jugs. I bought two of the 14 gal roll cans with pump dispenser and they don't work well. Hopeless unless the can is above the generator to gravity feed, and bulky and awkward to carry. So figure on 10 to 12 6 gal jerry jugs.
8. The unit does not have an alternator to keep the battery charged! So be sure to have a battery charger or buy a solar panel drip charger to keep it charged. I am going with both for redundancy.
EGD Responds: These large bore portables simply offer the brute strength required to run larger appliances where other back-up power options aren’t suitable. The stationary standbys that run on NG or LP don’t have the portability, shelter, sound & fuel storage issues like those cited here. If you have access to NG or LP, stationary is the way to go + you gain automatic operation.
Arrived just before Hurricane Igor hit Bermuda September 2010. I ran a single 30amp cord to 30 amp plug in wired into my mains. Ran for 21 hours like a champion, powered all essential systems, fridges freezers, water pump for showers plus some luxuries, TV, single split system AC for cooling and the like. It is great in that respect. However here are some things to be aware of, some of which I would have expected better from Generac, so thought I would share.
1. Two people needed for set up, this thing is heavy and getting the wheels on requires muscle.
Purchased generator online from Generators Direct and received it in quick time delivered to my door. Unpacked and was pleased to fine necessary oil and battery. Was also pleased to find extra oil and air filters.
Assembled wheels and handle, filled with oil and gas, then the problems began. Generator would not crank. Tried charging battery and using jumper battery, still no cranking. Called Generac and was given name of nearest service center 35 miles from my home. Loaded 400# generator in trailer and took to service center 1 week ago for repairs.
To date have heard nothing from service center concerning repairs, therefore the jury is still out on the generator. Glad it was not an emergency, yet.
Purchased generator online from Generators Direct and received it in quick time delivered to my door. Unpacked and was pleased to fine necessary oil and battery. Was also pleased to find extra oil and air filters.
Assembled wheels and handle, filled with oil and gas, then the problems began. Generator would not crank. Tried charging battery and using jumper battery, still no cranking. Called Generac and was given name of nearest service center 35 miles from my home. Loaded 400# generator in trailer and took to service center 1 week ago for repairs.
It's a bit of a gas guzzler but working great so far.
January 10, 2011
Brian Como, NC
Ready To Go
Started up right out the box, runs quietly. Impressive.
Haven't had the need to use it yet, but it comes highly recommended. Very comfortable knowing its there if I do.
December 16, 2010
Peter Matheson Pahrump, NV
Fantastic
My,my! It's one great big machine!! Arrived safely in perfect condition as I expected. Thank goodness for the option of tailgate delivery. It's heavy!
Unpacking was easy and instructions on attaching wheels and "D" handle easy to follow. Connected battery and added oil and gas and it fired up first kick. Fantastic.
I'm looking forward to the next step of getting it tied in to the house. I almost can't wait for the first outage!!
December 01, 2010
David Hawesville, KY
Built for Duty
I have been a Master Multi-Craft Electrician (electrical,electronics,instruments,and optical Como-tech.) for 32 years in Heavy Industry and 28 years in the Army and National Guard. Having worked with numerous power distribution systems, in and out of the US, civilian and military, I would highly recommend this unit to anyone looking for a Industrial Quality standby unit.
It will not run a large shop or office type building, (get a Generac Large Diesel Standby Unit) however this unit at 17k plus watts (70 amps @ 220vac) it will power everything you need in the average home or small workshop. It is a medium weight (400Lbs.) unit built in a compact and heavy-fabricated frame.
On the plus side the price was about 800 dollars less than other units of the same model and brand on the net!!! 2) It also had the wheel-kit included,(89 dollar extra on other units). 3) The battery was also included, (not on some units another 69 dollars).4)It also had all the literature included,easy start-up guide, oil, extra oil and air filter, etc. 5) It also has a handy eye-hook that you can use to boom it up with one cable,chain or sling for quick and easy mobility.
I checked the outputs with a scope and found them in the good range for stability, a must for sensitive electronics, ( I would still use a in-between power supply and ground system) The only outright negative I could see were the 50 amp breaker and 50 amp 4-prong output plug @220vac when the unit is rated at 72.9 amps @220vac, why not get the full potential out of the unit if possible.
If you are using this output you probably are not interested in the 110vac outlets, like me I have it plugged into the house 200amp panel through a disconnect switch outside. Also I have seen online and used units before that have a Tri-fuel carb added on the units this size down to 10k ( LP, Natural, Gas) It makes them very useful for long term stand-by continuous use.
All around I would rate this as very good to excellent, It is Compact, Sturdy,Medium-Wt., Dependable, and Priced Right!!!
Thanks
I have been a Master Multi-Craft Electrician (electrical,electronics,instruments,and optical Como-tech.) for 32 years in Heavy Industry and 28 years in the Army and National Guard. Having worked with numerous power distribution systems, in and out of the US, civilian and military, I would highly recommend this unit to anyone looking for a Industrial Quality standby unit.
It will not run a large shop or office type building, (get a Generac Large Diesel Standby Unit) however this unit at 17k plus watts (70 amps @ 220vac) it will power everything you need in the average home or sm... more
November 17, 2010
Kirk Auburn, CA
Highly Recommend
I bought this for emergency purposes because I have two houses on my property as well as a two well pumps and want to insure that everything in both houses will run in an emergency without any issues.
After receiving the delivery on time, I set it up using the 50 amp connection and tested while there was no emergency.
Works perfect!
If you're looking for a generator that you won't have to second guess if you have enough power, this is the one.
HIGHLY RECOMMEND!
October 21, 2010
Greg Flagstaff, AZ
Big Gen Needed
I was setting up my personal shop, I needed a gen to power the place and had put a 80 gallon 3 cylinder air compressor by Atlas, in there. Little did i know that the 7.5 hp electric motor would need a huge! 47 amps @ 230 volts!! to start.....GEESH
The specs for it said 29 amps... Yea right... whatever. Well after my 10,000 watt gen failed to start it I ordered this big Generac. It was fast and easy to set up and started like a dream with a push of a button. I plugged it into my breaker box, flipped the breakers, lights were all on , machinery powered up and BAM!!....the Air Compressor started right up.....YES!!
I was real tight seconds before I flipped the switch for the compressor....what if it did not work? what then? but all was good and I am off and running.
2 year warranty also....awesome.
I was setting up my personal shop, I needed a gen to power the place and had put a 80 gallon 3 cylinder air compressor by Atlas, in there. Little did i know that the 7.5 hp electric motor would need a huge! 47 amps @ 230 volts!! to start.....GEESH
The specs for it said 29 amps... Yea right... whatever. Well after my 10,000 watt gen failed to start it I ordered this big Generac. It was fast and easy to set up and started like a dream with a push of a button. I plugged it into my breaker box, flipped the breakers, lights were all on , machinery powered up and BAM!!....the ... more
October 08, 2010
FRANK Delray, FL
HOW TO USE ALL THE POWER THIS UNIT CAN GIVE!
I have three AC Units to feed as well as 3600 SF of house. I bought this generator to supply energy for a 5 Ton & a 3 Ton at the same time by using my two electric panels.
The AC units are connect to one panel with a 50 AMP cord and the 30 AMP cord connected to the second panel for most of the needs of the general house circuits.
The 17.5 KW is a POWERHOUSE.
September 07, 2010
GEORGE Cantonment, FL
Very, very happy it was so simple
Thank u so much. I'm very happy u people made it so simple.
I could not believe it shipped so quickly.
June 29, 2010
David Boren Alvin, TX
Good to have for Hurricane Season
Might get to use it this weekend if the hurricane goes a little North.....
June 24, 2010
Sid Beaumier Montgomery, TX
Questions about unit
1. 6-23-10 did new make ready - used the 2 quarts of oil provided (thank you - that is very nice to have on hand at assembly time) and was full per dip stick - on page 10 of owner's manual, it also says unit is full of oil when oil is up to threads of oil fill cover (called in and that is wrong - use dip stick to measure only) - needs to be changed.
2. 6-23-10 started unit - when run at high speed, control switch off), the cover over the exhaust area (large chrome cover that says HOT, vibrates A LOT AND IS VERY VERY LOUD - ANY SUGGESTION WHAT TO DO TO STOP THE VIBRATION AND LESSEN THE NOISE - wife does NOT like that!!!!!!!!!!.
3. The unit has rated amps of 73 - was hoping to have at least 60 amp usage - why does the unit have a 50 amp fuse for said applicable plug-in connection - I'm working with a licensed electrician for direct feed to house and wanted 60 amps - do I have 60 amp usage or limited to 50 amps because of said 50 amp fuse - why?
Please reply as soon as possible and electrician returning Friday, 6-25-10, a.m. to finish work.
EGD RESPONDS: For the best answers to your questions, would you please contact the folks at Generac directly? Their Tech Support number is (toll free) (888) 436-3722.
They have folks standing by to help sort out the amperage and noise issues you are experiencing. Since they are the manufacturer of your generator they know it better than anyone else.
They may ask for the serial number of your unit, so you will want to have that handy when you call.
The Tech Support folks will be able to answer your questions, and make a note of any Owner's Manual changes you suggest.
1. 6-23-10 did new make ready - used the 2 quarts of oil provided (thank you - that is very nice to have on hand at assembly time) and was full per dip stick - on page 10 of owner's manual, it also says unit is full of oil when oil is up to threads of oil fill cover (called in and that is wrong - use dip stick to measure only) - needs to be changed.
2. 6-23-10 started unit - when run at high speed, control switch off), the cover over the exhaust area (large chrome cover that says HOT, vibrates A LOT AND IS VERY VERY LOUD - ANY SUGGESTION WHAT TO DO TO STOP THE VIBRATION AND LESS... more
May 15, 2010
Jim Kline Massapequa, NY
What great service
I placed an order on a Friday and I received everything by the following Wednesday.
The smaller items came by UPS on Tuesday and the generator on Wednesday; everything was in perfect condition- what great service.
I was a little surprised at the size of the generator at first. It's big, but with the wheels on it's well balanced and pretty easy to move around for a 400 lb machine.
Putting it together was easy and after adding the oil and gas it started right up and ran very well and was only as loud as my old Powermate 3500 watt generator- not too bad for a machine this large; in idle mode it's very quiet.
So far I'm very satisfied with the service and products Electric Generators Direct provided me and would recommend your company to anyone who is looking for a generator at a great price.
I placed an order on a Friday and I received everything by the following Wednesday.
The smaller items came by UPS on Tuesday and the generator on Wednesday; everything was in perfect condition- what great service.
I was a little surprised at the size of the generator at first. It's big, but with the wheels on it's well balanced and pretty easy to move around for a 400 lb machine.
Putting it together was easy and after adding the oil and gas it started right up and ran very well and was only as loud as my old Powermate 3500 watt generator- not too... more
March 22, 2010
Jean Seiler Cohutta, GA
Bought 2 of these
Easy to set up and operate. Much quieter than my previous portable and that was only 4,500 watts.
Large fuel tank!
March 04, 2010
RAY MCKINSEY Hellam, PA
Great to work with
So far, so good. I've just had my generator for a few weeks, and one thing is the Start/Stop switch is like a rocker switch. If you're not careful you can engage the starter while the unit is running.
But other than that, all is good. Electric Generators Direct is great to work with, and I would use them again.
January 27, 2010
Brad Enroughty Richmond, VA
Awesome generator
My Dad is 91 years old. He bought one of these generators and had the Power Company wire for it. I keep up the maintenance on it.
It's an awesome generator, and works great.
If you plan for the probability of being out of power for an extended period, you need to plan for fuel. This unit has a 16 gallon fuel tank.
My only complaint is that this generator does not have an alternator to charge its own starting battery. I found this out when the battery went dead.
A plug-in trickle charger has solved this problem. The Generac call center response was excellent.
Air Compressors Direct
All Brands
Owners Manual
.jpg)
