Generac 50-Amp Power Transfer Switch System (12-16 Circuits)
Model: 6296
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- The Safest Way to Distribute Power To Your Home
- Eliminates dangerous backfeeds and electrical overloads
- 50-Amp Manual Transfer Kit For 12-16 Circuits
- Interchangeable breakers make it easy to reconfigure or expand
- Built-in Wattage Meter
- Track power input to ensure proper load balancing

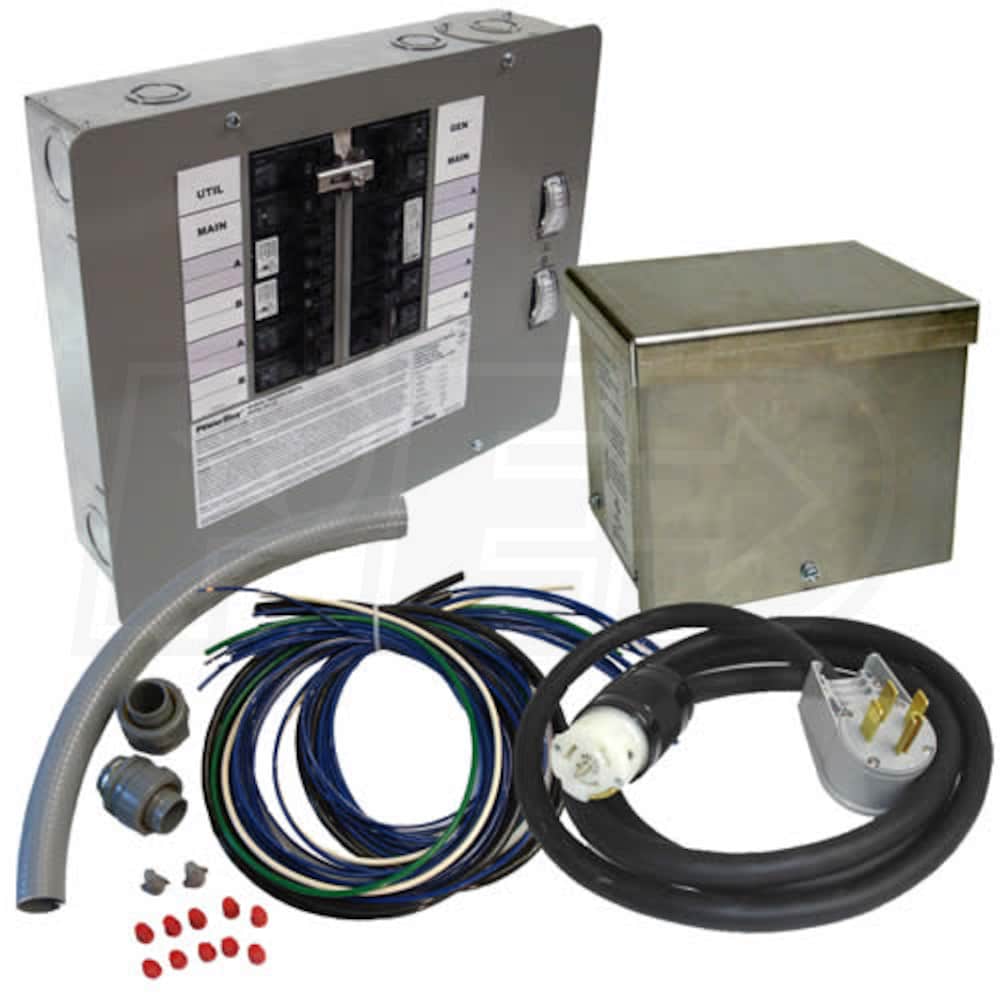

- Kit Includes:
- 50-Amp Manual Transfer Switch
- 50-Amp Power Inlet Box (Model 6344 Must Be Hardwired)
- 10' 50-Amp (L14-50/CS6364) Power Cord
- Wiring Harness & Connectors, Conduit and Fittings
- Manual
- Included Breakers
- (3) 15 Amp 1-Pole
- (3) 20 Amp 1-Pole
- (1) 20 Amp 2-Pole
- (1) 30 Amp 2-Pole
- (1) 50 Amp 2-Pole
- Please Note Requires 100-Amp 2-pole Main Breaker in Load Center
- 100-Amp Breaker Sold Separately
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
6296
Overview
Weight
28 Pounds
Consumer Warranty
1 Year
Product Length
14.375 Inches
Product Width
11.5 Inches
Product Height
3.375 Inches
UPC
696471062960
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Neutral Type
Floating
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
50A 240V
1
Plugs
NEMA 14-50R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Straight-Blade
Wire Gauge
6 Gauge
