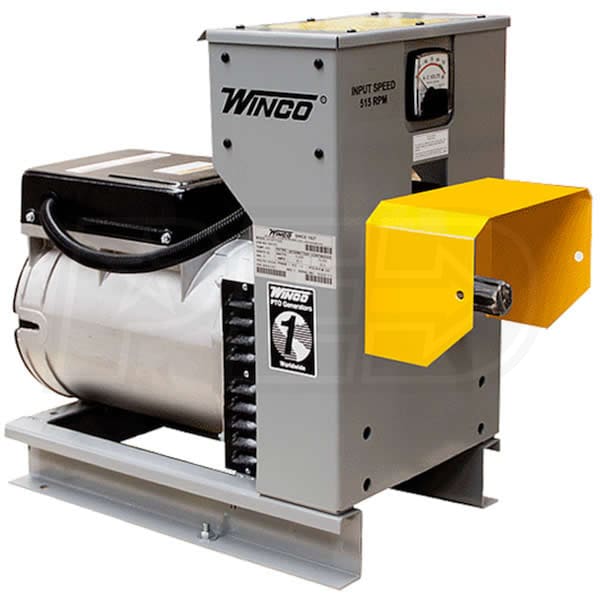

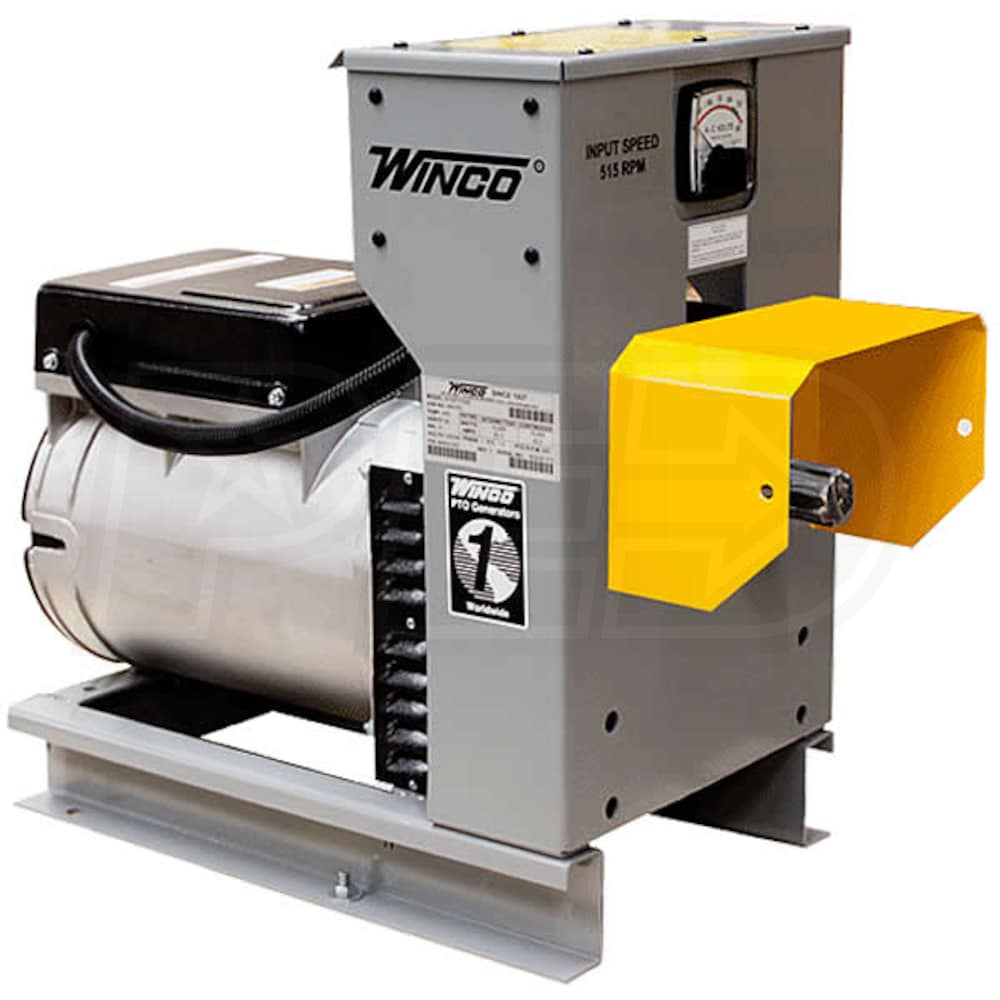

Winco W15PTOS - 15 kW Tractor-Driven PTO Generator (515/540 RPM)

Model:

99840-004

Recommended
Write a Review
$2,250.50
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Backordered
Estimated Availability January 28, 2022
Shipping to60601
Winco W15PTOS - 15 kW Tractor-Driven PTO Generator (515/540 RPM)
Winco W15PTOS - 15 kW Tractor-Driven PTO Generator (515/540 RPM)
Model: 99840-004
$2,250.50
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

PTO

Run Watts

15,000 Rated Watts

Surge Watts

18,000
Starting Watts

  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires 30-HP at the PTO to operate properly (515 rpm)
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • Brushless Alternator
  • Produces clean and safe electricity for sensitive electronics
  • Low harmonic content (<5%)
  • Mainline Circuit Breaker
  • Protects generator and appliances from overload
  • Large Voltmeter
  • Easily monitor your power usage right from your tractor seat
  • Cast Iron Gear Case
  • Rugged, high-quality material designed to weather the outdoors
  • 1-3/8 Six Spline
  • Connect tumbling bar (sold separately) between tractor and PTO
  • Mobility (sold separately)
  • Transport your PTO generator with a trailer or 3-point hitch
  • Full power 60A plug ships with the generator
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 14-60R
99840-004
specs product image PID-1180
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
15000 Watts
Surge Watts
18000 Watts
Rated Amps
63 Amps
Voltage Meter
Yes
Tractors HP
30 HP
PTO RPMs
515 RPM
Grade Type
Professional
Overview
Weight
255 Pounds
Consumer Warranty
1 Year
Product Length
33 Inches
Product Style
PTO Generator
Product Width
19 Inches
Product Height
20.2 Inches
Additional Model Numbers

W15PTOS, 99840-004

Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-60R
1

Reviews

(25)
Winco 99840-004 Reviews & Ratings

Product Q&A

(3)
Product Questions Answered by Jared, the Generator Expert
If the RPM speed determines the frequency, how do you know when you have the proper turning speed from the tractor?
Gary
from Ohio
June 06, 2018
I have a Kubota 2920 compact tractor with 29 HP overall and less at the PTO. Am I better off buying the 15kW and not maxing it out or buy a 10kW and have no HP issues but max the generator?
Todd
from North Carolina
March 07, 2014
With most 10kW and 15kW PTO driven generators driven at 540 RPM PTO and the Winco 10 and 15kW units driven at 515 RPM PTO, does that mean I could run my Kubota 38 h.p. at a lower RPM for the Winco to operate at full capacity or would my Kubota still have to still run at about the same RPM's as the 540 RPM PTO generators? What would be the difference in the rpm's between the two with my tractor for them to maintain the same load?
Jeff
from Georgia
December 09, 2013
