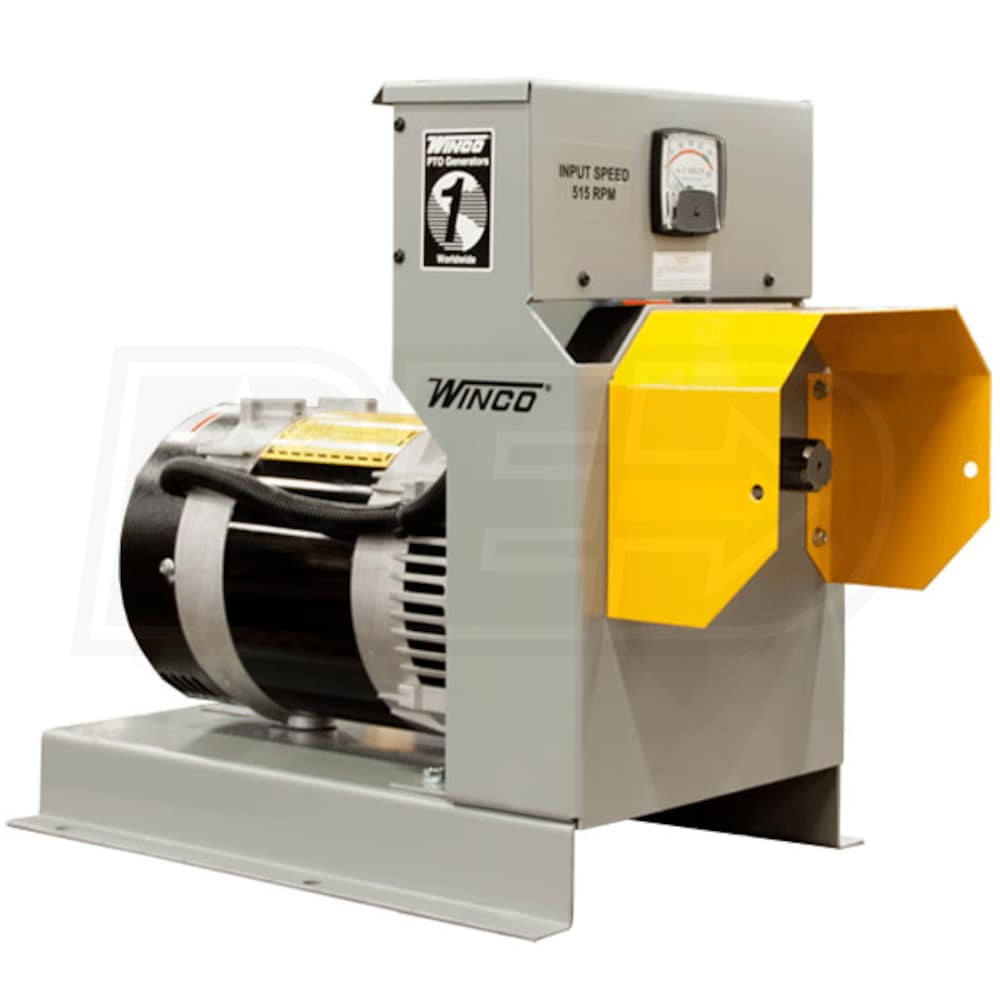

Winco W10PTOS - 10 kW Tractor-Driven PTO Generator (515/540 RPM)
Model: 99840-003
+
Share This Product
-
Product Description
-
6Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
10,000
Rated Watts
Surge Watts
10,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
10,000
Surge Watts
10,000 Starting Watts
Features
Features
- Convert Your Tractor Into a Generator
- Use your compact tractor engine to generate electricity
- Requires 20-HP at the PTO to operate properly
- Multiple Applications
- Generate electricity to power tools on the farm or ranch
- Backup your home, barn or buildings during a power outage
- Brushless Alternator
- Produces clean and safe electricity for sensitive electronics
- Low harmonic content (<5%)
- Mainline Circuit Breaker
- Protects generator and appliances from overload
- Large Voltmeter
- Easily monitor your power usage right from your tractor seat
- Cast Iron Gear Case
- Rugged, high-quality material designed to weather the outdoors
- 1-3/8” Six Spline
- Connect tumbling bar (sold separately) between tractor and PTO
- Mobility (sold separately)
- Transport your PTO generator with a trailer or 3-point hitch
- Full power 60A plug ships with the generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
10000 Watts
Surge Watts
10000 Watts
Rated Amps
42 Amps
Voltage Meter
Yes
Tractors HP
20 HP
PTO RPMs
515 RPM
Grade Type
Professional
Overview
Weight
166 Pounds
Consumer Warranty
1 Year
Product Style
PTO Generator
Product Length
33 Inches
Product Width
19 Inches
Product Height
20.2 Inches
Additional Model Numbers
W10PTOS, 99840-003
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-60R
1
Grade
Style
Run Watts
10,000
Rated Watts
Surge Watts
10,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
10,000
Surge Watts
10,000 Starting Watts
Features
Features
- Convert Your Tractor Into a Generator
- Use your compact tractor engine to generate electricity
- Requires 20-HP at the PTO to operate properly
- Multiple Applications
- Generate electricity to power tools on the farm or ranch
- Backup your home, barn or buildings during a power outage
- Brushless Alternator
- Produces clean and safe electricity for sensitive electronics
- Low harmonic content (<5%)
- Mainline Circuit Breaker
- Protects generator and appliances from overload
- Large Voltmeter
- Easily monitor your power usage right from your tractor seat
- Cast Iron Gear Case
- Rugged, high-quality material designed to weather the outdoors
- 1-3/8” Six Spline
- Connect tumbling bar (sold separately) between tractor and PTO
- Mobility (sold separately)
- Transport your PTO generator with a trailer or 3-point hitch
- Full power 60A plug ships with the generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
10000 Watts
Surge Watts
10000 Watts
Rated Amps
42 Amps
Voltage Meter
Yes
Tractors HP
20 HP
PTO RPMs
515 RPM
Grade Type
Professional
Overview
Weight
166 Pounds
Consumer Warranty
1 Year
Product Style
PTO Generator
Product Length
33 Inches
Product Width
19 Inches
Product Height
20.2 Inches
Additional Model Numbers
W10PTOS, 99840-003
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-60R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
10000 Watts
Surge Watts
10000 Watts
Rated Amps
42 Amps
Voltage Meter
Yes
Tractors HP
20 HP
PTO RPMs
515 RPM
Grade Type
Professional
Overview
Weight
166 Pounds
Consumer Warranty
1 Year
Product Style
PTO Generator
Product Length
33 Inches
Product Width
19 Inches
Product Height
20.2 Inches
Additional Model Numbers
W10PTOS, 99840-003
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-60R
1
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Will the W10PTOS work with my Kubota B2370 (rated for 17HP at rear PTO)?
Al
from New Jersey
December 18, 2016
Answer
The standard sizing for a PTO generator is 2HP for every 1kW of generator power. Based on this formula the 10kW unit will not work with your generator and the largest generator your tractor would be able to handle is 8.5kW. At this time the smallest PTO generator we offer is the 10kW unit.
Was this answer helpful?
Yes
0
No
3
+−
With most 10kW and 15kW PTO driven generators driven at 540 RPM PTO and the Winco 10 and 15kW units driven at 515 RPM PTO, does that mean I could run my Kubota 38 h.p. at a lower RPM for the Winco to operate at full capacity or would my Kubota still have to still run at about the same RPM's as the 540 RPM PTO generators? What would be the difference in the rpm's between the two with my tractor for them to maintain the same load?
Jeff
from Georgia
December 09, 2013
Answer
There is a possibility you would run your tractor at a lower RPM. However, we would not know what your tractor RPM would need to be running at to produce the proper RPM at your PTO. It is suggested that you contact the tractor manufacturer to find out what RPM the engine needs to run at to have the PTO operate at 515 RPM.
Was this answer helpful?
Yes
4
No
2
