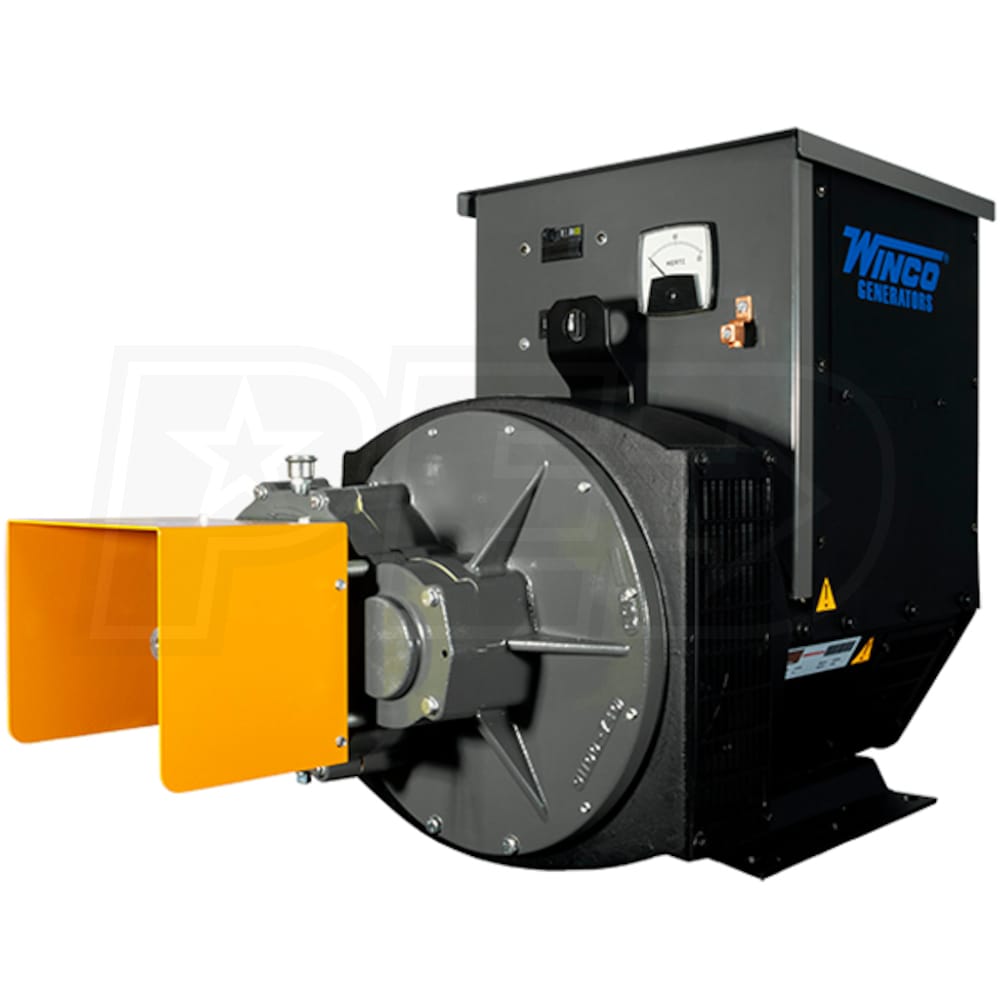

Winco 50PTOC4-04 - 50 kW Tractor-Driven PTO Generator (540 RPM) (120/208V 3-Phase)

Model:

205054-041

Write A Review
$7,737.20
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Winco 50PTOC4-04 - 50 kW Tractor-Driven PTO Generator (540 RPM) (120/208V 3-Phase)
Winco 50PTOC4-04 - 50 kW Tractor-Driven PTO Generator (540 RPM) (120/208V 3-Phase)
Model: 205054-041
$7,737.20
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

PTO

Run Watts

50,000 Rated Watts

Voltage

120/208 Three-Phase

  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires a 100-HP engine to operate properly
  • Multiple Applications (120/208V 3-Phase)
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • Low Harmonic Content (<8%)
  • Produces clean and safe electricity for sensitive electronics
  • Mainline Circuit Breaker
  • Protects generator and appliances from overload
  • Large Voltmeter
  • Easily monitor your power usage right from your tractor seat
  • Cast Iron Gear Case
  • Rugged, high-quality material designed to weather the outdoors
  • Full Power Anderson Style Receptacle (Includes Anderson Plug)
  • Perfect for hooking up a manual transfer switch
  • 1-3/8"- 6 Spline Input Shaft Size
  • Designed for the Winco 540 RPM tumbling bar (54326-1)
  • Mobility
  • Transport your PTO generator with a trailer (sold separately)
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 6-50R
Full Power Receptacle
205054-041
specs product image PID-99757
General Information
Product Category
Generator - PTO
Overview
Product Category
Generator - PTO
Weight
745 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Style
PTO Generator
Product Length
44 Inches
Product Width
28 Inches
Product Height
29 Inches
Additional Model Numbers

50PTOC4-04, 205054-041

Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
50000 Watts
Rated Amps
138 Amps
Voltage Meter
Yes
Tractors HP
100 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 6-50R
1
Full Power Receptacle
1
