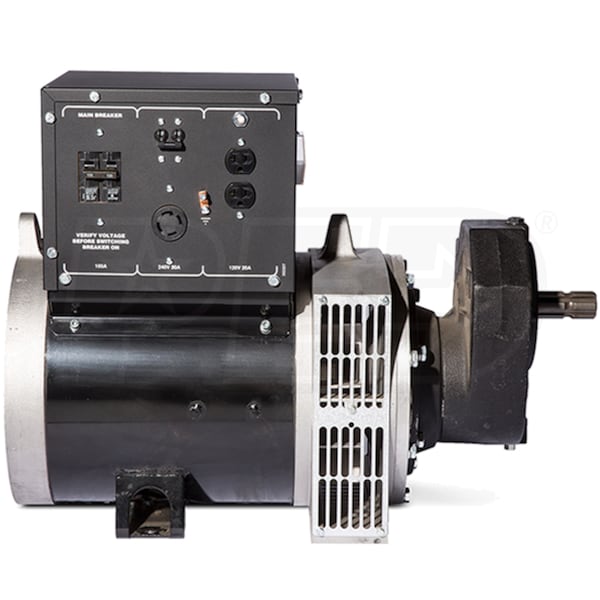

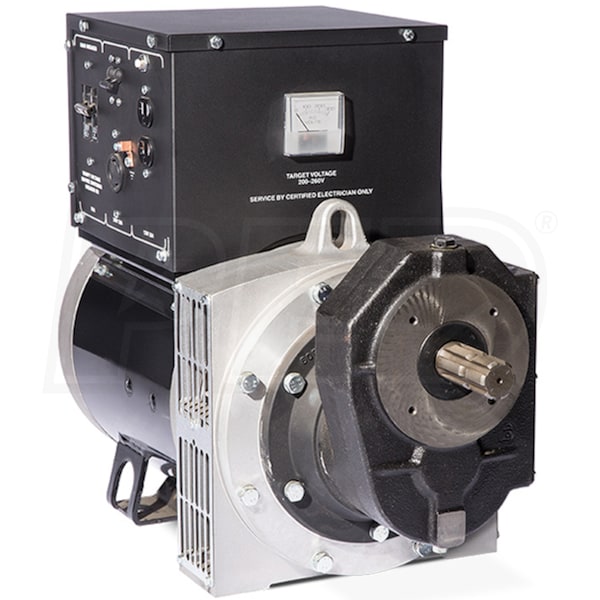

Voltmaster PTO30/25M - 25 kW Tractor-Driven PTO Generator (540 RPM)

Voltmaster PTO30/25M - 25 kW Tractor-Driven PTO Generator (540 RPM)
Our Price
Compare Prices
Shipping Info
Model: PTO30/25M
$4,399.00

Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Lift Gate Service -
Add-Ons
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Style
Run Watts
25,000
Rated Watts
Surge Watts
30,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
25,000
Surge Watts
30,000 Starting Watts


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires at least 50 PTO HP
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • 3600 RPM Brushless Alternator
  • Produces clean and safe electricity for sensitive electronics
  • Smooth Wave™
  • Provides <6% total harmonic distortion
  • Thermal/Magnet Circuit Breaker
  • Protects generator and appliances from overload
  • Standard Voltmeter
  • Makes it easy to monitor your power usage
  • Standard 1-3/8” Six Spline w/ Helical Gears
  • Connect tumbling bar (sold separately) between tractor and PTO
  • PTO safety shield
  • Full power 240-volt receptacle (Includes connector)
  • Lifting eye
  • Product Must be mounted to a trailer or concrete slab.
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA L14-30R
Full Power Receptacle
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Surge Watts
30000 Watts
Rated Watts
25000 Watts
Rated Amps
104 Amps
Voltage Meter
Yes
Lifting Eye
Yes
Tractors HP
50 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L14-30R
1
Full Power Receptacle
1
Overview
Weight
303 Pounds
Product Style
PTO Generator
Product Length
29 Inches
Product Width
13.75 Inches
Product Height
21 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Grade
Style
Run Watts
25,000
Rated Watts
Surge Watts
30,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
25,000
Surge Watts
30,000 Starting Watts


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires at least 50 PTO HP
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • 3600 RPM Brushless Alternator
  • Produces clean and safe electricity for sensitive electronics
  • Smooth Wave™
  • Provides <6% total harmonic distortion
  • Thermal/Magnet Circuit Breaker
  • Protects generator and appliances from overload
  • Standard Voltmeter
  • Makes it easy to monitor your power usage
  • Standard 1-3/8” Six Spline w/ Helical Gears
  • Connect tumbling bar (sold separately) between tractor and PTO
  • PTO safety shield
  • Full power 240-volt receptacle (Includes connector)
  • Lifting eye
  • Product Must be mounted to a trailer or concrete slab.
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA L14-30R
Full Power Receptacle
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Surge Watts
30000 Watts
Rated Watts
25000 Watts
Rated Amps
104 Amps
Voltage Meter
Yes
Lifting Eye
Yes
Tractors HP
50 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L14-30R
1
Full Power Receptacle
1
Overview
Weight
303 Pounds
Product Style
PTO Generator
Product Length
29 Inches
Product Width
13.75 Inches
Product Height
21 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Specs
+−
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA L14-30R
Full Power Receptacle
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Surge Watts
30000 Watts
Rated Watts
25000 Watts
Rated Amps
104 Amps
Voltage Meter
Yes
Lifting Eye
Yes
Tractors HP
50 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L14-30R
1
Full Power Receptacle
1
Overview
Weight
303 Pounds
Product Style
PTO Generator
Product Length
29 Inches
Product Width
13.75 Inches
Product Height
21 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(3)
+−
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+−
How does the voltmast PTO 30/25M-25kw generator compare to the Winco 25PTOC-3 ? The voltmaster is brushless would thet be a better type?
Robert Horton
from Texas
January 08, 2013
Answer
Brushless is only better from a maintenance perspective. I'm old school - I prefer brushes due to waveform quality and no field excitation issues to speak of. If the machine is turning, it's producing power. In your case, if hours of run time are significant, you may be better brushless.
+−
I see where you recoment units looked at and give simaler units to look at. I dont see where you recoment this unit. Voltmaster PTO 30/25M? this unit is brushless, would that be better than a brush type generator. I have a Kubota M6040 with 57 PTO hp
Robert Horton
from Texas
January 08, 2013
Answer
We don't recommend all units - only 3 machines in each class/style. This unit is very well built and is brushless. We'd have no reservations in sliding you into a machine like this one.
+−
Jim, I have a 43HP 4CYL Kubota. I know this size will handle my needs, but will my tractor handle it?
ED ZIRINGER
from Virginia
July 17, 2012
Answer
This unit requires a 50hp or larger engine to operate properly. You may want to look towards a slightly smaller unit.
Something along the lines of the IMD 22Kw unit would be suitable. That model number is PTO 22-S.
