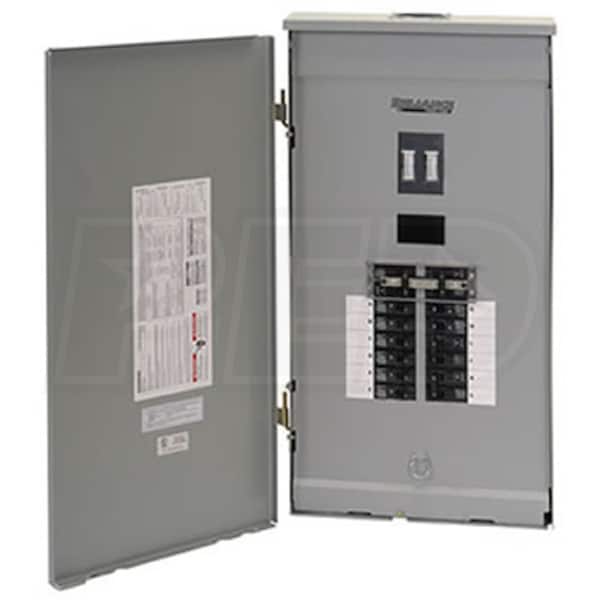

Reliance Controls 100-Amp Prewired Outdoor Transfer Panel w/ Wattmeters

Reliance Controls 100-Amp Prewired Outdoor Transfer Panel w/ Wattmeters
Model: TRC1005CRP1
$449.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Tax-Free (Except IL)

No Sales Tax* (Except IL)$449.99Buy Now
No Sales Tax* (Except IL)$449.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Reliance Panel/Link«
  • Combines a circuit panel and a transfer switch together
  • Perfect for new construction and/or renovation
  • Built-in wattage meter helps you manage load
  • 12 Total Circuits
  • Six 15-Amp Single Pole Circuits
  • Two 20-Amp Single Pole Circuits
  • One 20-Amp Double Pole Circuit
  • One 30-Amp Double Pole Circuit
  • This transfer panel is designed for hardwired installation.
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
100 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 120V
2
20A 240V
1
30A 240V
1
Overview
Made in USA
Yes
Weight
47 Pounds
Product Length
29 Inches
Product Width
14.5 Inches
Product Height
4.5 Inches
Consumer Warranty
2 Years
Features
Features
  • Reliance Panel/Link«
  • Combines a circuit panel and a transfer switch together
  • Perfect for new construction and/or renovation
  • Built-in wattage meter helps you manage load
  • 12 Total Circuits
  • Six 15-Amp Single Pole Circuits
  • Two 20-Amp Single Pole Circuits
  • One 20-Amp Double Pole Circuit
  • One 30-Amp Double Pole Circuit
  • This transfer panel is designed for hardwired installation.
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
100 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 120V
2
20A 240V
1
30A 240V
1
Overview
Made in USA
Yes
Weight
47 Pounds
Product Length
29 Inches
Product Width
14.5 Inches
Product Height
4.5 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
100 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 120V
2
20A 240V
1
30A 240V
1
Overview
Made in USA
Yes
Weight
47 Pounds
Product Length
29 Inches
Product Width
14.5 Inches
Product Height
4.5 Inches
Consumer Warranty
2 Years
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Mike, the Generator Expert
icon-social-fb1
+
I am looking at the TRC1005crp1 outdoor transfer panel and would like to find out how it is wired into the circuits I want to power? I guess what I need is a diagram of how it works. I have 12 circuits I want to be able to power from my propane generator.
Al Kruger
from Arizona
January 23, 2014
Answer
The Reliance Controls TRC1005CRP1 is designed to operate as a sub-panel. This transfer switch comes completely wired with the following circuit configurations;
6 - 15A/120V
2 - 20A/120V
1 - 20A/240V
1 - 30A/240V

It is important to understand that this transfer panel will need to be supported by a 100A 2-pole breaker from your main circuit panel. Whichever circuits you wish to support must be re-located to this transfer switch.

We do not have wiring diagrams for this panel, however you can find the installation instructions by following the provided link; TR Series Installation Instructions
