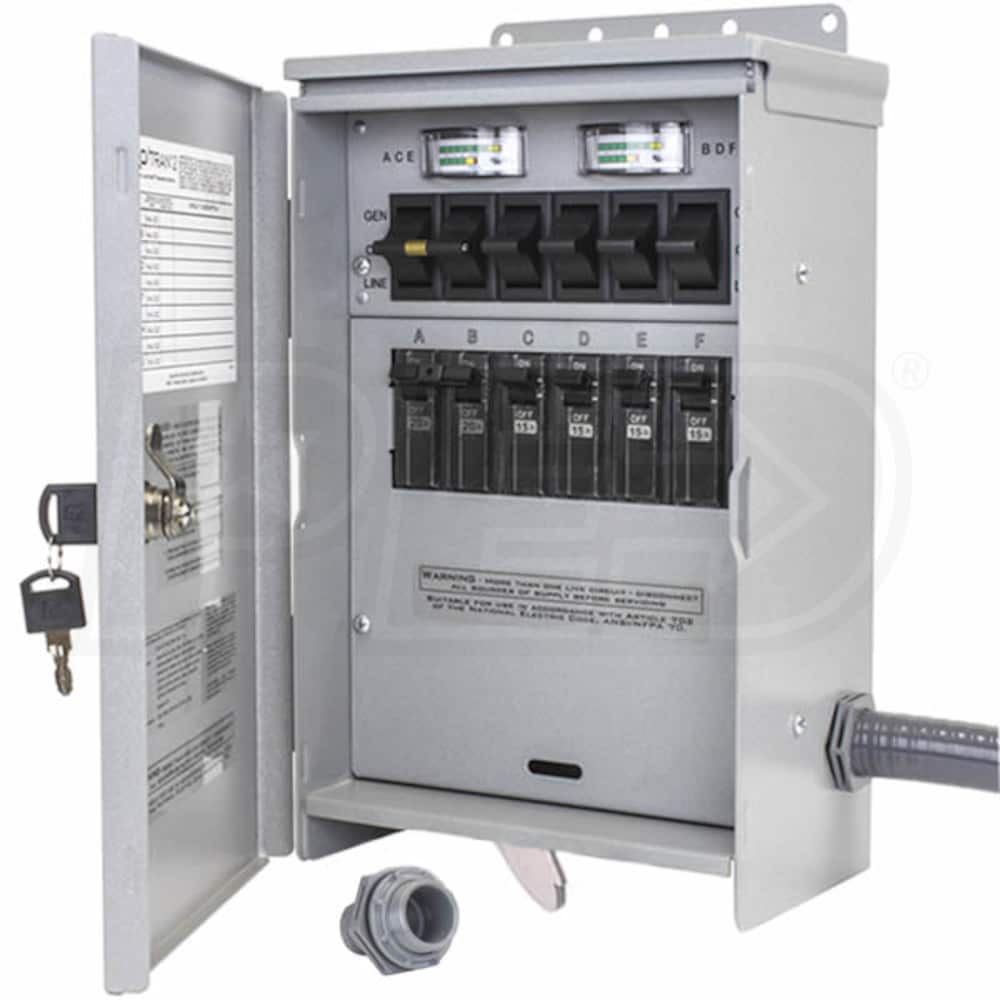

Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 6-Circuit) Outdoor Transfer Switch w/ Wattmeters & Inlet

Model:

R306A

Write a Review
$319.99
Factory-Direct
Ships in 4-6 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.

Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 6-Circuit) Outdoor Transfer Switch w/ Wattmeters & Inlet
Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 6-Circuit) Outdoor Transfer Switch w/ Wattmeters & Inlet
Model: R306A
$319.99
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Type

Manual

Amp Rating

30

Circuits

6

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R

  • Pro/Tran® 2 30A 6-Circuit 120/240V Outdoor Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • Non-Defeatable (Break-Before-Make) Double-Throw Switch
  • Eliminates dangerous backfeeds and electrical overloads
  • 6 Total Circuits (1" Interchangable Style)
  • (1) 20A 2-Pole & (4) 15A 1-Pole
  • NEW Color-Coded Built-In Wattage Meters
  • Helps you balance and manager generator load
  • Factory Installed (L14-30) Power Inlet w/ Flip-Lid
  • Easily connect your generator cord on bottom of switch
  • NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
  • Gasketd design, provides liquid tight protection in all seasons
  • Key lockable door prevents tampering & unauthorized use
  • 16" Flexible, Non-Metalic Liquid-Tight Conduit (1") w/ Fittings
  • (5) Combination 1/2" & 3/4" knockouts for easier installation
  • Factor-marked, color-coded wires simplifies installation
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • •Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA L14-30R
R306A
specs product image PID-61718
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Conduit Length
16
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
18 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13 Inches
Product Width
8 Inches
Product Height
5 Inches
UPC
815181012786
Transfer Switch Circuits
15A 120V
4
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
