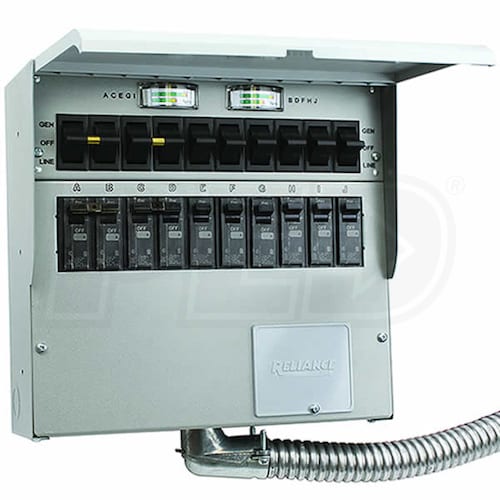

Reliance Controls Pro/Tran 2 - 50-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers
Model: A510C
Recommended
4.9 out of 54.9 out of 54.9 out of 54.9 out of 54.9 out of 5
Number of Reviews(14)
Write a Review
$369.00
Factory-Direct
Ships in 4-6 Weeks
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Available Add-Ons
Learn More Installation
Share
  • Product Description
  • 14
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Manual
Amp Rating
50
Circuits
10
Enclosure
NEMA 1R
Type
Manual
Amp Rating
50
Circuits
10
Enclosure
NEMA 1R
Features
Features
  • Pro/Tran® 2 50-Amp 10-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • Multiple Circuits
  • (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
  • Eliminates dangerous backfeeds and electrical overloads
  • Safest Way to Distribute Power
  • 10 Single-Pole Circuits or 5 Double-Pole Circuits
  • (10) Total Circuits (1" Interchangable Style)
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Hinged, Non-Metalic Cover
  • Protects toggle switches/breakers & provides a finished appearance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • *Requires 50-Amp Power Inlet Box (PB50) (Sold Separately)
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Standard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5- Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012236
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Type
Manual
Amp Rating
50
Circuits
10
Enclosure
NEMA 1R
Type
Manual
Amp Rating
50
Circuits
10
Enclosure
NEMA 1R
Features
Features
  • Pro/Tran® 2 50-Amp 10-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • Multiple Circuits
  • (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
  • Eliminates dangerous backfeeds and electrical overloads
  • Safest Way to Distribute Power
  • 10 Single-Pole Circuits or 5 Double-Pole Circuits
  • (10) Total Circuits (1" Interchangable Style)
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Hinged, Non-Metalic Cover
  • Protects toggle switches/breakers & provides a finished appearance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • *Requires 50-Amp Power Inlet Box (PB50) (Sold Separately)
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Standard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5- Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012236
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012236
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Reviews
(14)
+
Reliance Controls A510C Reviews & Ratings
100% of Reviewers Recommend This Product
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
Can this unit be hard-wired?
Terry
from West Virginia
June 13, 2018
Answer
This model has to be hard-wired to the inlet box and the desired circuits from your service panel.
