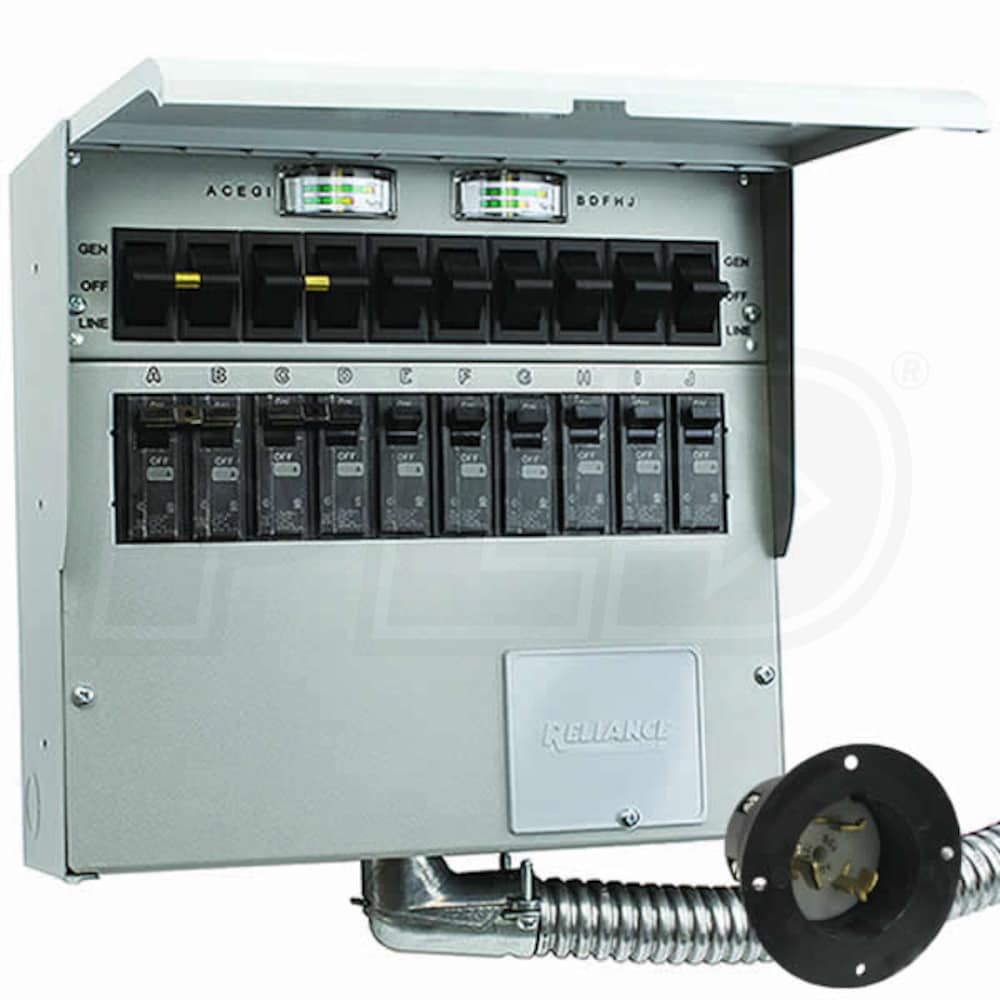

Reliance Controls Pro/Tran2 - 50-Amp (120/240V 10-Circuit) Indoor Transfer Switch w/ Wattmeters & Inlet

Reliance Controls Pro/Tran2 - 50-Amp (120/240V 10-Circuit) Indoor Transfer Switch w/ Wattmeters & Inlet
Our Price
Compare Prices
Shipping Info
Model: A510A
$476.58

Only 1 In-Stock
Ships Thursday, Oct 17th
Shipping Crate Icon
Free Shipping

Only 1 In-Stock
Ships Thursday, Oct 17th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Manual
Amp Rating
CS6369 (50-Amp Twistlock)
Circuits
10
Enclosure
NEMA 1R
Type
Manual
Amp Rating
50
Circuits
10
Enclosure
NEMA 1R
Features
Features
  • Pro/Tran® 2 50-Amp 10-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • (10) Total Circuits (1" Interchangable Style)
  • (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet (included)
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • Easily re-configured in the field for multiple 2-pole circuits
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5- Year Limited Warranty
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012212
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 120V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6369 - 50-Amp Twistlock
1
Type
Manual
Amp Rating
CS6369 (50-Amp Twistlock)
Circuits
10
Enclosure
NEMA 1R
Type
Manual
Amp Rating
50
Circuits
10
Enclosure
NEMA 1R
Features
Features
  • Pro/Tran® 2 50-Amp 10-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • (10) Total Circuits (1" Interchangable Style)
  • (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet (included)
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • Easily re-configured in the field for multiple 2-pole circuits
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5- Year Limited Warranty
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012212
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 120V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6369 - 50-Amp Twistlock
1
Product Specs
+
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012212
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 120V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6369 - 50-Amp Twistlock
1
