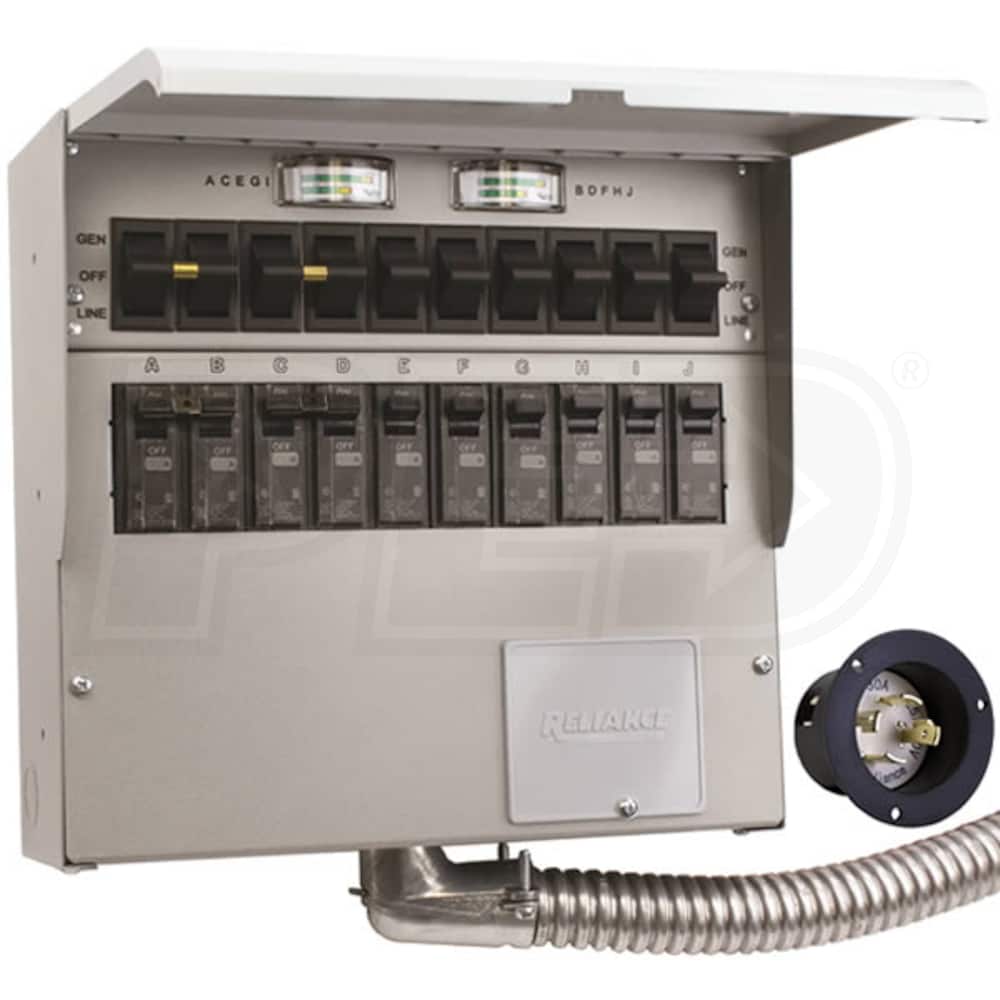

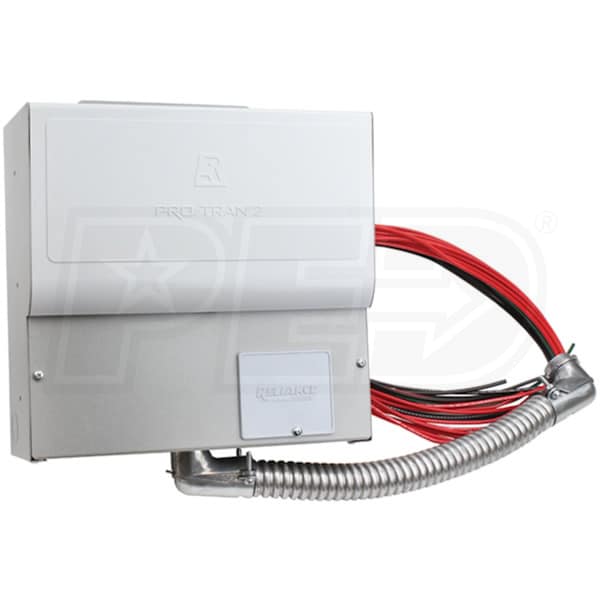

Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers & Inlet

Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers & Inlet
Model: A310A
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (2)
Write A Review
$389.99
In-Stock
Ships Tuesday, Sep 25th

In-Stock $389.99Buy Now
$389.99Visit Site
In-Stock
Ships Tuesday, Sep 25th
Shipping Info
Shipping Info
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Manual
Amp Rating
NEMA L14-30R
Circuits
10
Enclosure
NEMA 1R
Type
Manual
Amp Rating
30
Circuits
10
?>
Enclosure
NEMA 1R
Features
Features
  • Pro/Tran® 2 30-Amp 10-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • Multiple Circuit Combinations
  • (6) 15A 1-pole, (1) 20A 2-pole and (1) 30A 2-pole
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • (10) Total Circuits (1" Interchangable Style)
  • Mix any combination of single and double pole circuits
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet (Included)
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5-Year Limited Warranty
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Overview
Made in USA
Yes
Weight
20 Pounds
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Consumer Warranty
5 Years
UPC
815181012175
Type
Manual
Amp Rating
NEMA L14-30R
Circuits
10
Enclosure
NEMA 1R
Type
Manual
Amp Rating
30
Circuits
10
?>
Enclosure
NEMA 1R
Features
Features
  • Pro/Tran® 2 30-Amp 10-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • Multiple Circuit Combinations
  • (6) 15A 1-pole, (1) 20A 2-pole and (1) 30A 2-pole
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • (10) Total Circuits (1" Interchangable Style)
  • Mix any combination of single and double pole circuits
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet (Included)
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5-Year Limited Warranty
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Overview
Made in USA
Yes
Weight
20 Pounds
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Consumer Warranty
5 Years
UPC
815181012175
Product Specs
+
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Overview
Made in USA
Yes
Weight
20 Pounds
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Consumer Warranty
5 Years
UPC
815181012175
