Reliance Controls A306A
Reliance Controls A306A
Hover to zoom
1 Of 5

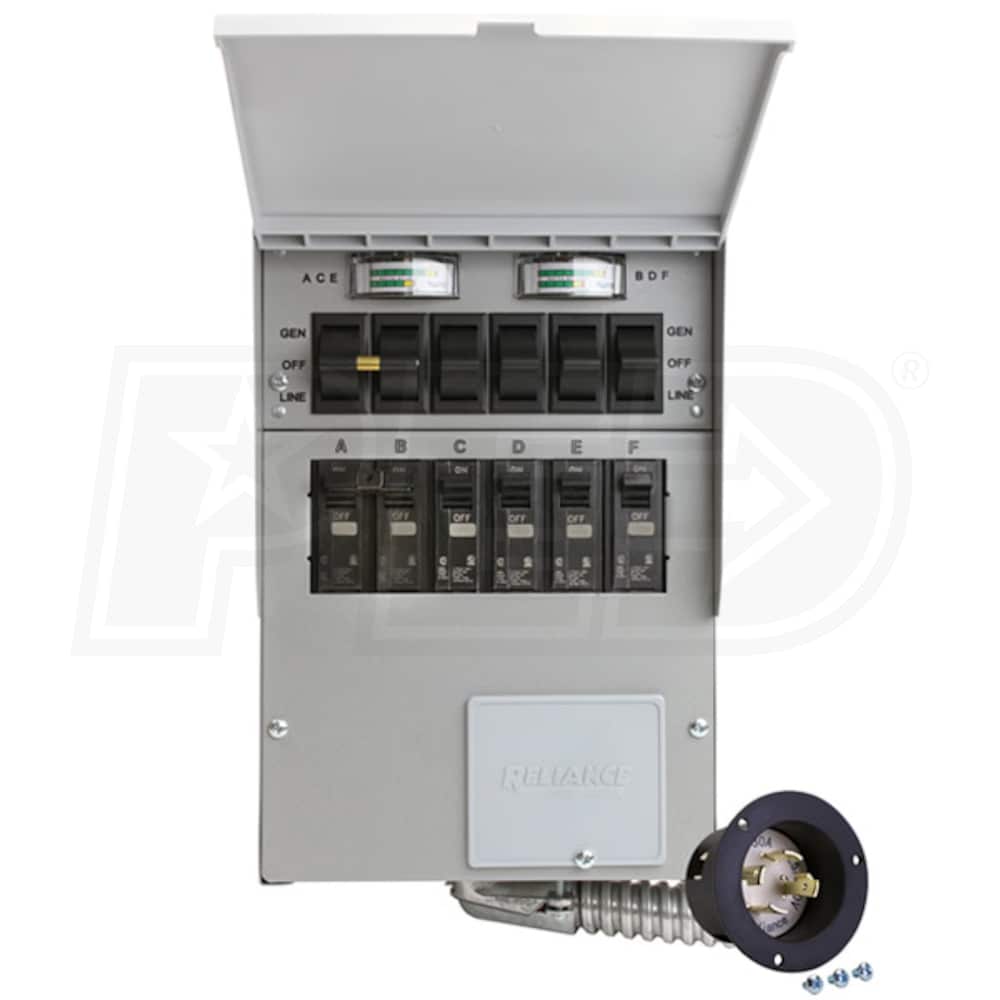

Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 6-Circuit) Transfer Switch w/ Interchangeable Breakers & Inlet
Model: A306A
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(2)
Write a Review
Q&A (1)
$229.99
Holiday Shipping Schedule
Holiday Schedule -
Factory-Direct
Ships in 4-6 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Available Add-Ons
Learn More Installation
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Type
Manual
Amp Rating
NEMA L14-30R
Circuits
6
Enclosure
NEMA 1R
Type
Manual
Amp Rating
30
Circuits
6
Enclosure
NEMA 1R
Features
Features
  • Pro/Tran® 2 30-Amp 6-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • 6 Total Circuits (1" Interchangable Style)
  • (1) 30A 2-Pole, (2) 20A 1-Pole & (2) 15A 1-Pole
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet (included)
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • Easily re-configured in the field for multiple 2-pole circuits
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5- Year Limited Warranty
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
14 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
11.25 Inches
Product Width
7.75 Inches
Product Height
4.5 Inches
UPC
815181012342
Transfer Switch Circuits
15A 120V
2
20A 120V
2
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Type
Manual
Amp Rating
NEMA L14-30R
Circuits
6
Enclosure
NEMA 1R
Type
Manual
Amp Rating
30
Circuits
6
Enclosure
NEMA 1R
Features
Features
  • Pro/Tran® 2 30-Amp 6-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • 6 Total Circuits (1" Interchangable Style)
  • (1) 30A 2-Pole, (2) 20A 1-Pole & (2) 15A 1-Pole
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet (included)
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • Easily re-configured in the field for multiple 2-pole circuits
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5- Year Limited Warranty
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
14 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
11.25 Inches
Product Width
7.75 Inches
Product Height
4.5 Inches
UPC
815181012342
Transfer Switch Circuits
15A 120V
2
20A 120V
2
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
14 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
11.25 Inches
Product Width
7.75 Inches
Product Height
4.5 Inches
UPC
815181012342
Transfer Switch Circuits
15A 120V
2
20A 120V
2
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Reviews
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
(2)
+−
Reliance Controls A306A Reviews & Ratings
Product Q&A
(1)
+−
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+−
Does the Reliance Controls A306A transfer switch transfer the neutral?
M C
from California
October 20, 2020
Answer
The switch does not transfer the neutral. If there is a fault with your generator, it terminates at the generator not the panel. If you had a floating neutral, the fault would terminate at the panel/switch. Most manual transfer switches do not mention this because it is determined by the generator, not the switch.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
