Product Description
+−
Features
Features
- Safest Way to Distribute Power
- Eliminates dangerous back feeds and electrical overloads
- Everything but the Electrician

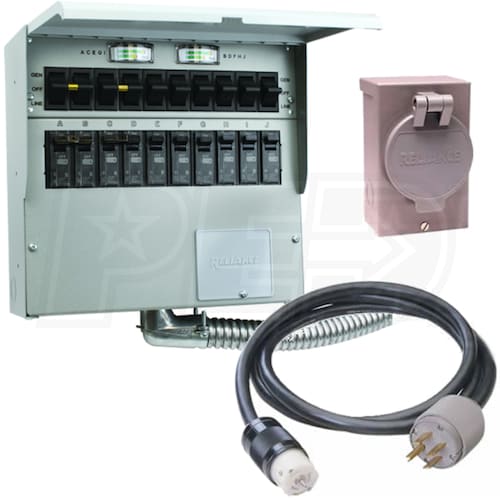

- 50-amp transfer switch, power inlet box and 10 ft. cord
- Energize Hardwired Appliances
- Supplies electricity to furnace fans and interior lights
- 10 Total Circuits
- Six 1-Pole @ 15 Amps
- Two 2-Pole @ 20 Amps
- UL Listed
- Certified for use by Underwriter Laboratories
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
45 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13.75 Inches
Product Width
7 Inches
Product Height
4.5 Inches
Transfer Switch Circuits
15A 120V
6
20A 240V
2
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 14-50R
1
Cord
Cord Length
10 feet
Features
Features
- Safest Way to Distribute Power
- Eliminates dangerous back feeds and electrical overloads
- Everything but the Electrician
- 50-amp transfer switch, power inlet box and 10 ft. cord
- Energize Hardwired Appliances
- Supplies electricity to furnace fans and interior lights
- 10 Total Circuits
- Six 1-Pole @ 15 Amps
- Two 2-Pole @ 20 Amps
- UL Listed
- Certified for use by Underwriter Laboratories
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
45 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13.75 Inches
Product Width
7 Inches
Product Height
4.5 Inches
Transfer Switch Circuits
15A 120V
6
20A 240V
2
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 14-50R
1
Cord
Cord Length
10 feet
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
45 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13.75 Inches
Product Width
7 Inches
Product Height
4.5 Inches
Transfer Switch Circuits
15A 120V
6
20A 240V
2
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 14-50R
1
Cord
Cord Length
10 feet
