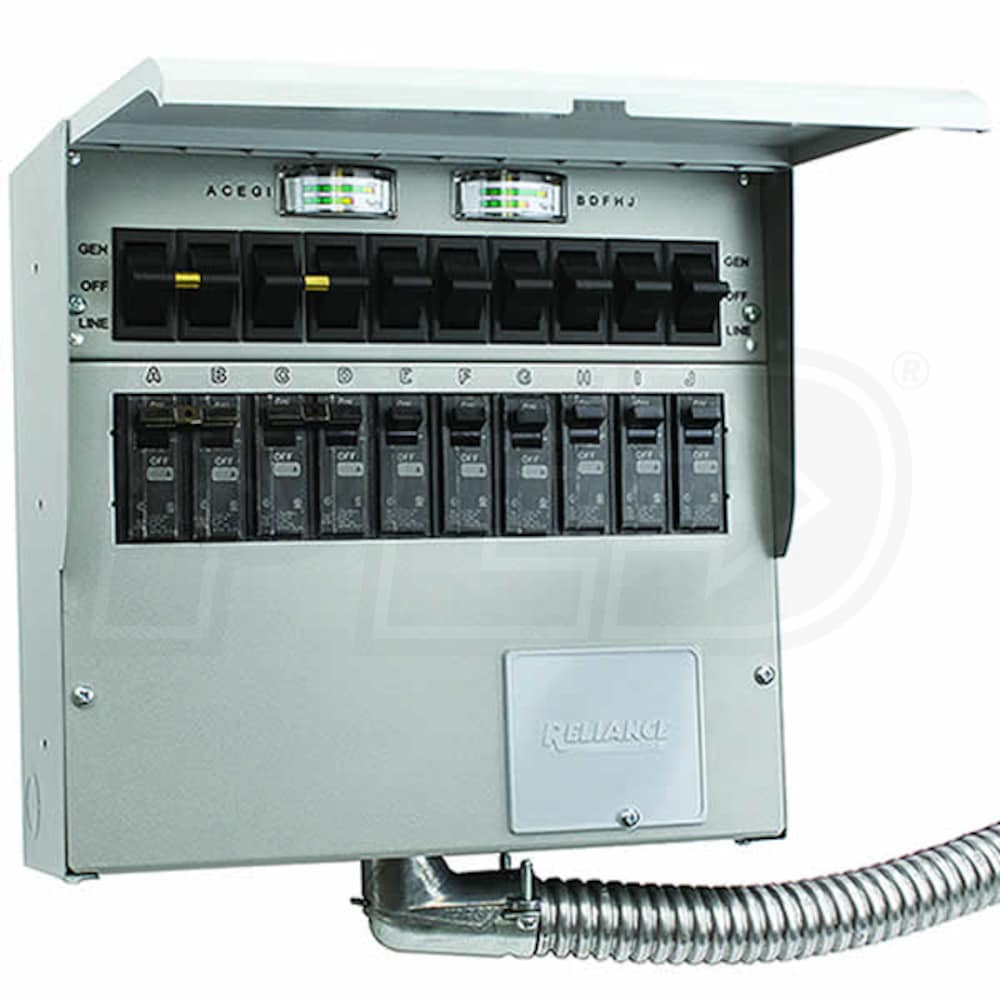

Reliance Controls Pro/Tran2 - 50-Amp (120/240V 10-Circuit) Indoor Transfer Switch w/ Wattmeters

Reliance Controls Pro/Tran2 - 50-Amp (120/240V 10-Circuit) Indoor Transfer Switch w/ Wattmeters
Model: 510C
$423.30
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Tax-Free (Except IL)

No Sales Tax* (Except IL)$423.30Buy Now
No Sales Tax* (Except IL)$476.58Visit Site
Factory-Direct
Ships in 2-5 Business Days
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Manual
Amp Rating
50
Circuits
10
Enclosure
NEMA 1R
Type
Manual
Amp Rating
50
Circuits
10
?>
Enclosure
NEMA 1R
Features
Features
  • Pro/Tran® 2 50-Amp 10-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • 10 Total Circuits (1" Interchangable Style)
  • (1) 20A 2-Pole and (8) 15A 1-Pole
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • Easily re-configured in the field for multiple 2-pole circuits
  • *Note - Transfer Switch Is Designed For Hardwired Installation
  • 50-Amp (PB50) power inlet box needed to connect power cord
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5- Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
8
20A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Made in USA
Yes
Weight
15 Pounds
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Consumer Warranty
5 Years
UPC
815181012052
Type
Manual
Amp Rating
50
Circuits
10
Enclosure
NEMA 1R
Type
Manual
Amp Rating
50
Circuits
10
?>
Enclosure
NEMA 1R
Features
Features
  • Pro/Tran® 2 50-Amp 10-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • 10 Total Circuits (1" Interchangable Style)
  • (1) 20A 2-Pole and (8) 15A 1-Pole
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • Easily re-configured in the field for multiple 2-pole circuits
  • *Note - Transfer Switch Is Designed For Hardwired Installation
  • 50-Amp (PB50) power inlet box needed to connect power cord
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5- Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
8
20A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Made in USA
Yes
Weight
15 Pounds
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Consumer Warranty
5 Years
UPC
815181012052
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
8
20A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Made in USA
Yes
Weight
15 Pounds
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Consumer Warranty
5 Years
UPC
815181012052
