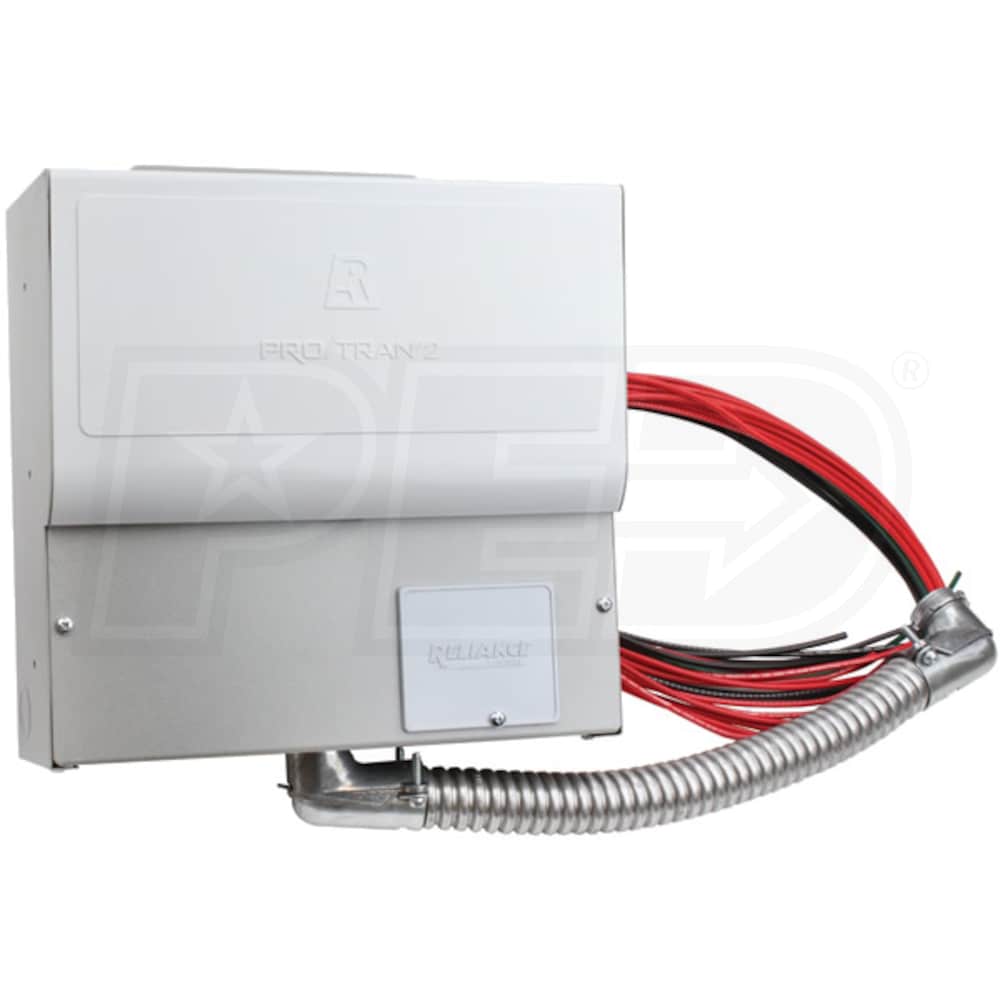

Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 8-Circuit) Transfer Switch w/ Wattmeters

Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 8-Circuit) Transfer Switch w/ Wattmeters
Model: 308C
$346.20
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Tax-Free (Except IL)

Factory-Direct
Ships in 2-5 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Shipping Info
Shipping Info
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Manual
Amp Rating
30
Circuits
8
Enclosure
NEMA 1R
Features
Features
  • Pro/Tran® 2 30-Amp 8-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • (8) Total Circuits (1" Interchangable Style)
  • (1) 20A 2-Pole & (6) 15A 1-Pole
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • Easily re-configured in the field for multiple 2-pole circuits
  • *Note - Transfer Switch Is Designed For Hardwired Installation
  • 30-Amp (L14-30) power inlet box needed to connect power cord
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
8
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Made in USA
Yes
Weight
13 Pounds
Product Length
11 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Consumer Warranty
5 Years
UPC
815181012441
Type
Manual
Amp Rating
30
Circuits
8
Enclosure
NEMA 1R
Features
Features
  • Pro/Tran® 2 30-Amp 8-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • (8) Total Circuits (1" Interchangable Style)
  • (1) 20A 2-Pole & (6) 15A 1-Pole
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • Easily re-configured in the field for multiple 2-pole circuits
  • *Note - Transfer Switch Is Designed For Hardwired Installation
  • 30-Amp (L14-30) power inlet box needed to connect power cord
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
8
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Made in USA
Yes
Weight
13 Pounds
Product Length
11 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Consumer Warranty
5 Years
UPC
815181012441
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
8
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Made in USA
Yes
Weight
13 Pounds
Product Length
11 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Consumer Warranty
5 Years
UPC
815181012441
