On Sale

Reliance Controls 308A
Reliance Controls 308A
Hover to zoom
1 Of 5

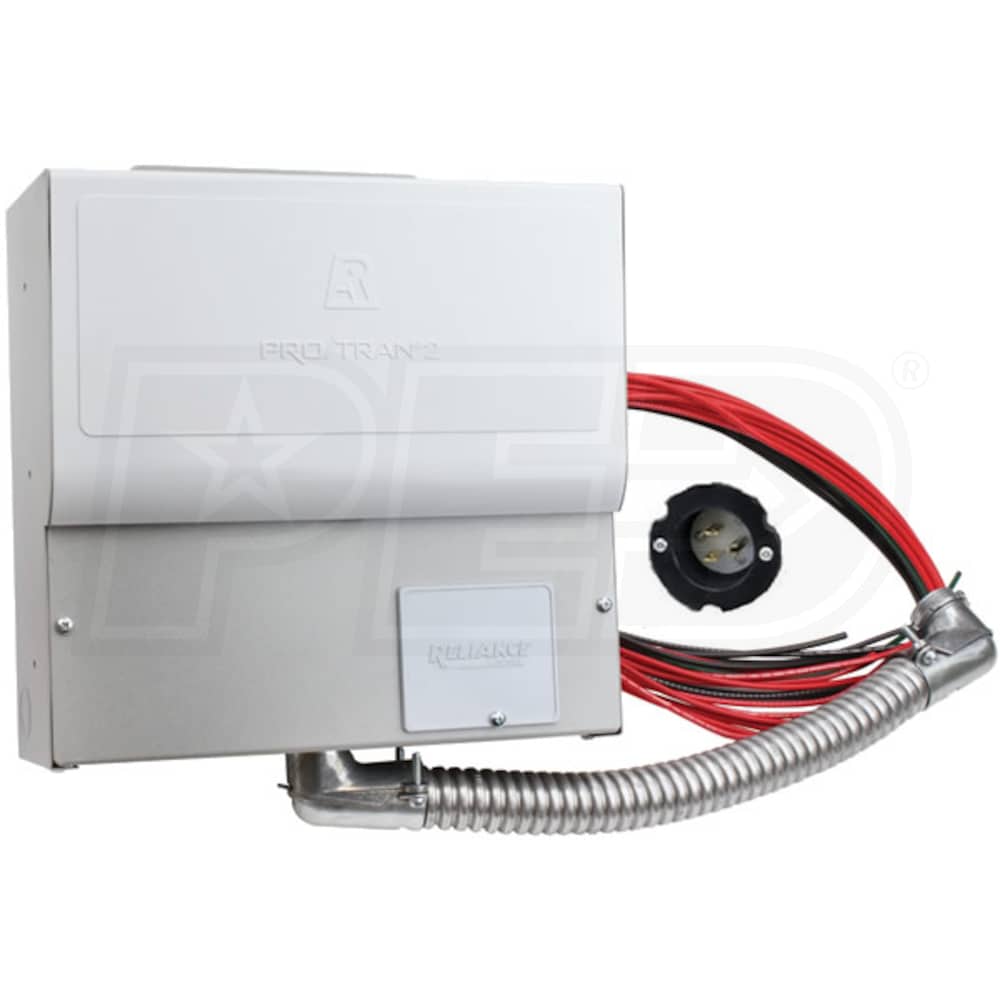

Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 8-Circuit) Transfer Switch w/ Wattmeters & Inlet

Model:

308A

Write a Review
$304.99
Was $351.99
Factory-Direct
Ships in 8-12 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.

Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 8-Circuit) Transfer Switch w/ Wattmeters & Inlet
Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 8-Circuit) Transfer Switch w/ Wattmeters & Inlet
Model: 308A
$304.99
Was $351.99
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Type

Manual

Amp Rating

30

Circuits

8

Voltage

120/240 Single-Phase

Enclosure

NEMA 1R

  • Pro/Tran® 2 30-Amp 8-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • (8) Total Circuits (1" Interchangable Style)
  • (1) 20A 2-Pole, (2) 20A 1-Pole & (4) 15A 1-Pole
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet (included)
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • Easily re-configured in the field for multiple 2-pole circuits
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA L14-30R
308A
specs product image PID-50918
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
8
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
13 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
11 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012427
Transfer Switch Circuits
15A 120V
4
20A 120V
2
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
