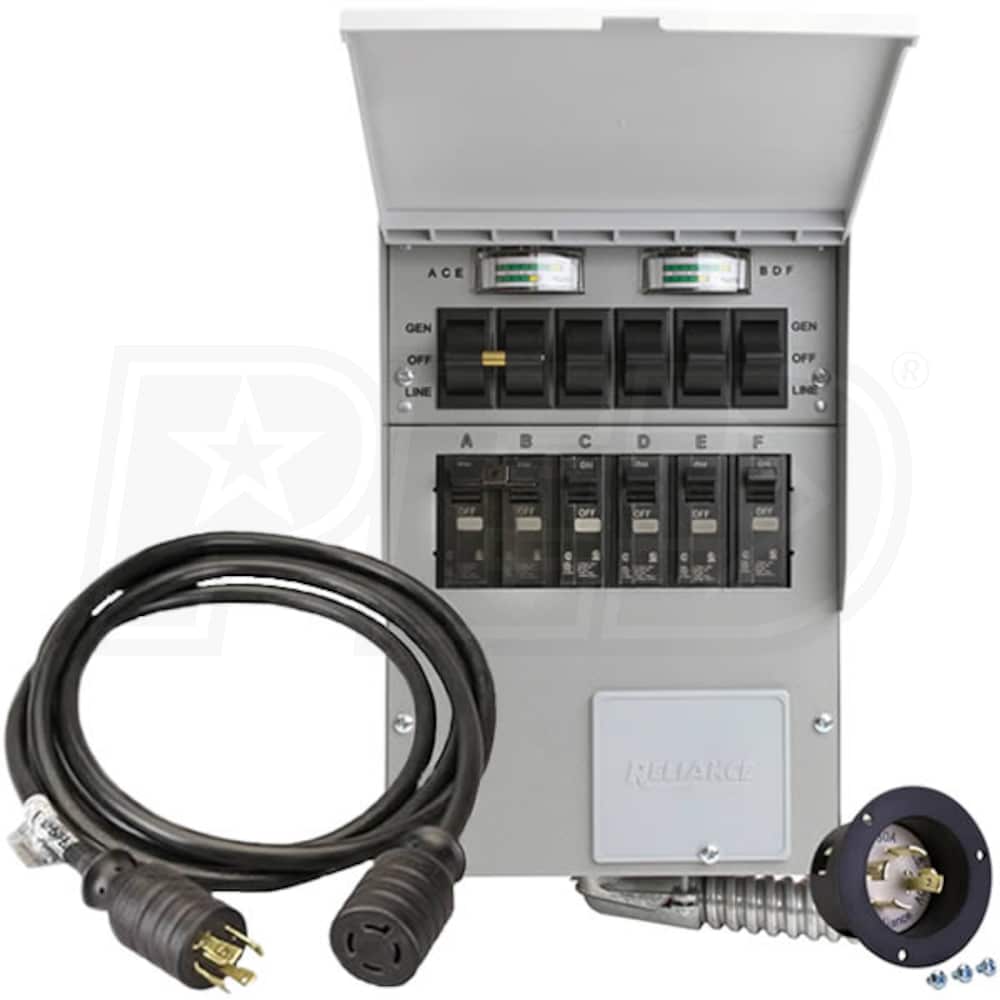

Reliance Controls Pro/Tran 2 - 20-Amp (6-Circuit) Indoor Power Transfer Switch Kit w/ 25' Cord

Reliance Controls Pro/Tran 2 - 20-Amp (6-Circuit) Indoor Power Transfer Switch Kit w/ 25' Cord
Our Price
Compare Prices
Shipping Info
Model: 206AK
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (2)
Write A Review
$319.00

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.

Factory-Direct
Ships in 2-5 Business Days
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Reliance 20-Amp 6-Circuit Power Transfer Kit
  • Eliminates dangerous backfeeds and electrical overloads
  • Pro/Tran® 2 20-Amp 6-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • 6 Total Circuits (1" Interchangable Style)
  • (4) 15A 1-Pole and (1) 20A 2-Pole
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet (included)
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • 25' 20-Amp (L14-20) Generator Power Cord
  • Heavy-Duty, rubber molded design rated up to 5000w @ 240V
  • Safety & Certifications
  • Certified to UL Stanard 1008 & Meets All Req'd 702 NEC ANSI/NFPA 70
  • 5-Year Limited Warranty
Specifications
Plugs
NEMA L14-20R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
5000 Watts
Rated Amps
20 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
6
Max Generator Input
20 Amps
Maximum Wattage
5000 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
4
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-20R
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Overview
Made in USA
Yes
Weight
20 Pounds
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Consumer Warranty
5 Years
UPC
815181012694
