Pramac 36kW Industrial Diesel Standby Generator w/ Yanmar Engine

Pramac 36kW Industrial Diesel Standby Generator w/ Yanmar Engine
Our Price
Compare Prices
Shipping Info
Model: GRW35Y
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Shop All Food Truck Generators
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii, California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Style
Run Watts
36,000
Rated Watts
Surge Watts
36,000
Starting Watts
Fuel
Engine
Yanmar
Grade
Professional
Style
RV
Run Watts
36,000
Surge Watts
36,000 Starting Watts
Fuel
Diesel
Engine
Yanmar
Features
Features

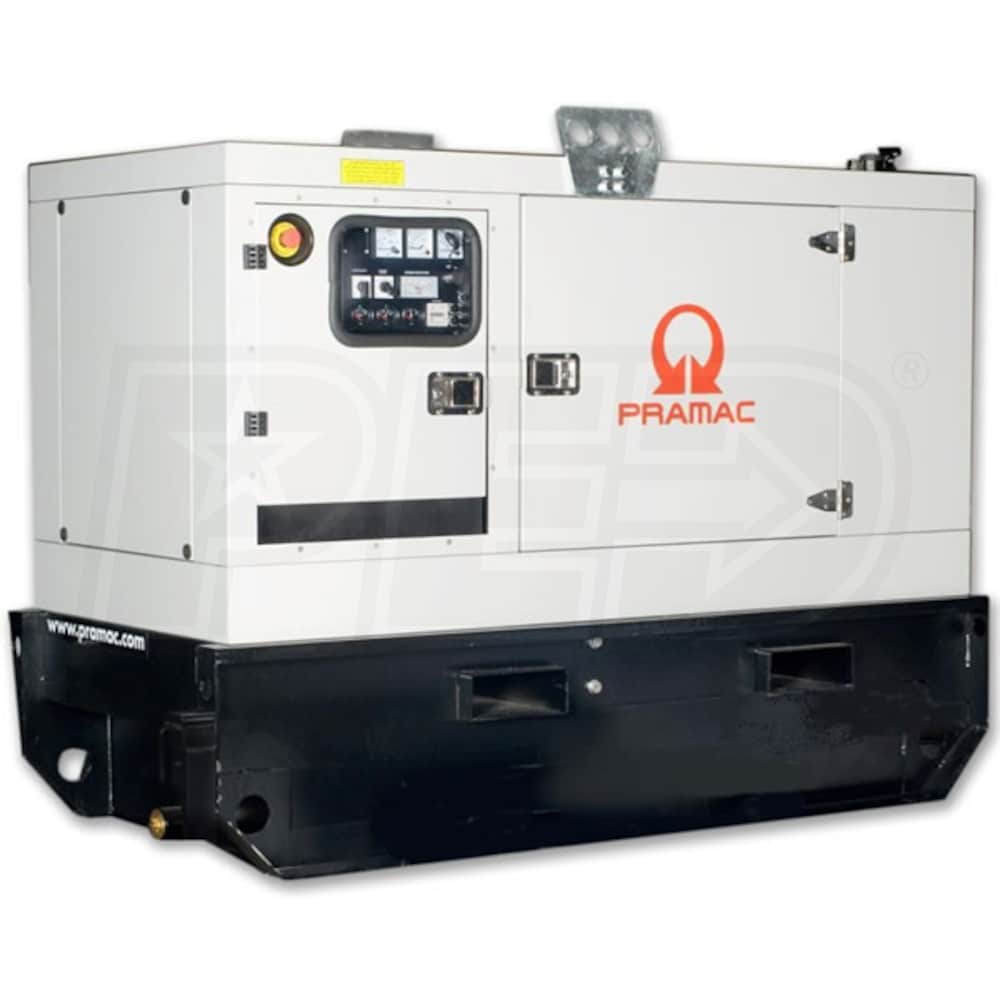

  • Pramac Industrial GRW Series Skid-Mounted Diesel Generator
  • Suitable for most applications; Home Standby & Jobsite
  • 3.3L Yanmar Inline 4-Cylinder Liquid-Cooled Diesel Engine
  • 1800 RPM design provides reliability and fuel efficiency
  • Large 95-Gallon Integral Single-Wall Fuel Tank
  • Allows for up to 50 hours of run time @ 3/4 load

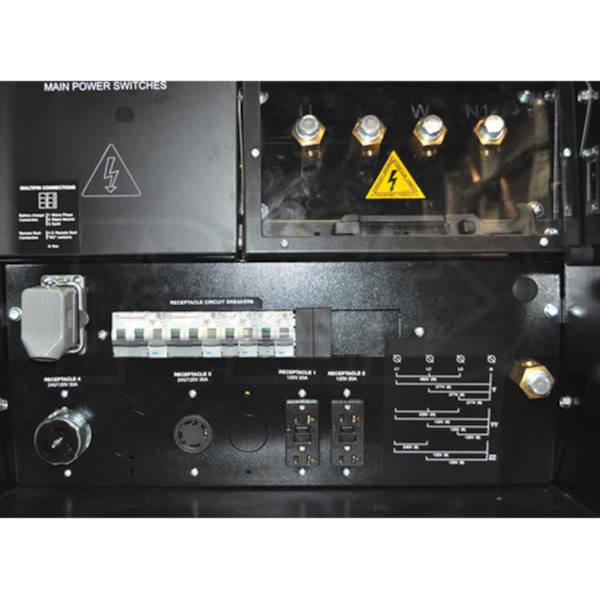

  • Voltage Selector Switch - 240V (1-Phase), 208V & 480V (3-Phase)
  • Ready for manual or auto-start operation (2-wire)

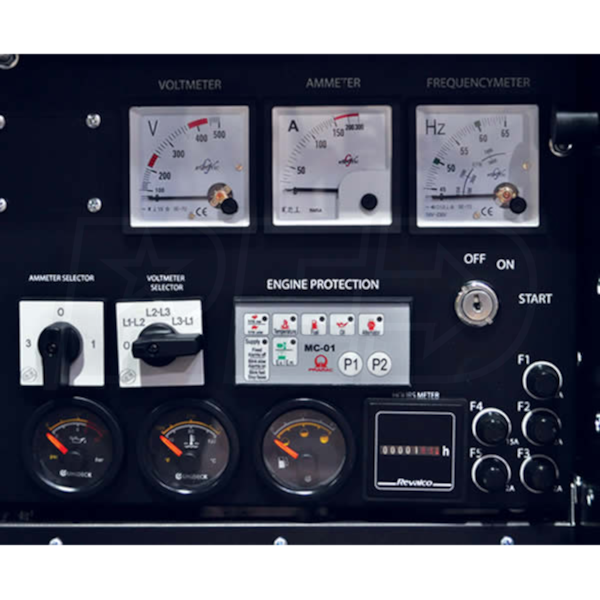

  • Manual Control Panel w/ Analog Gauges
  • Provides easy monitoring of genset operation
  • Lockable, see-through door and start/stop selector w/ key
  • High Performance Sound Attenuation
  • Integral residential-type muffler reduces sound level to 65 dB(A)
  • Single-Key Secured Access To Components
  • Makes it easy to service and prevents tampering
  • Galvanized Skids Frame

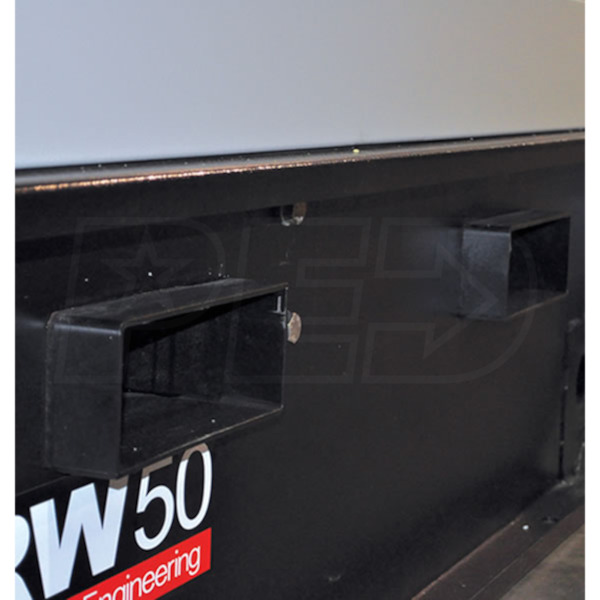

  • Fork lift pockets allow for easy transportation
  • Includes Battery Trickle Charger
  • Compatible w/ RTR GRW15Y-GRW50Y Trailer (Sold Separately)
  • 1-Year Limited Warranty - Crane Recommended For Delivery
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
36000 Watts
Surge Watts
36000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
3 gallons/hr
Tank Size
95 Gallons
Run Time @ 50% Load
61.8 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included (800 CCA)
Grade Type
Professional
Engine
Engine Brand
Yanmar
Starting System
12v Auto Start
CC
3300 CC
Consumer Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Made in USA
No
Weight
2286 Pounds
Product Style
RV Generator
Product Length
82.7 Inches
Product Width
38.8 Inches
Product Height
62.4 Inches
Consumer Warranty
1 Year
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
CS6369 - 50-Amp Twistlock
1
Grade
Style
Run Watts
36,000
Rated Watts
Surge Watts
36,000
Starting Watts
Fuel
Engine
Yanmar
Grade
Professional
Style
RV
Run Watts
36,000
Surge Watts
36,000 Starting Watts
Fuel
Diesel
Engine
Yanmar
Features
Features
  • Pramac Industrial GRW Series Skid-Mounted Diesel Generator
  • Suitable for most applications; Home Standby & Jobsite
  • 3.3L Yanmar Inline 4-Cylinder Liquid-Cooled Diesel Engine
  • 1800 RPM design provides reliability and fuel efficiency
  • Large 95-Gallon Integral Single-Wall Fuel Tank
  • Allows for up to 50 hours of run time @ 3/4 load
  • Voltage Selector Switch - 240V (1-Phase), 208V & 480V (3-Phase)
  • Ready for manual or auto-start operation (2-wire)
  • Manual Control Panel w/ Analog Gauges
  • Provides easy monitoring of genset operation
  • Lockable, see-through door and start/stop selector w/ key
  • High Performance Sound Attenuation
  • Integral residential-type muffler reduces sound level to 65 dB(A)
  • Single-Key Secured Access To Components
  • Makes it easy to service and prevents tampering
  • Galvanized Skids Frame
  • Fork lift pockets allow for easy transportation
  • Includes Battery Trickle Charger
  • Compatible w/ RTR GRW15Y-GRW50Y Trailer (Sold Separately)
  • 1-Year Limited Warranty - Crane Recommended For Delivery
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
36000 Watts
Surge Watts
36000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
3 gallons/hr
Tank Size
95 Gallons
Run Time @ 50% Load
61.8 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included (800 CCA)
Grade Type
Professional
Engine
Engine Brand
Yanmar
Starting System
12v Auto Start
CC
3300 CC
Consumer Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Made in USA
No
Weight
2286 Pounds
Product Style
RV Generator
Product Length
82.7 Inches
Product Width
38.8 Inches
Product Height
62.4 Inches
Consumer Warranty
1 Year
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
CS6369 - 50-Amp Twistlock
1
Product Specs
+−
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
36000 Watts
Surge Watts
36000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
3 gallons/hr
Tank Size
95 Gallons
Run Time @ 50% Load
61.8 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included (800 CCA)
Grade Type
Professional
Engine
Engine Brand
Yanmar
Starting System
12v Auto Start
CC
3300 CC
Consumer Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Made in USA
No
Weight
2286 Pounds
Product Style
RV Generator
Product Length
82.7 Inches
Product Width
38.8 Inches
Product Height
62.4 Inches
Consumer Warranty
1 Year
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
CS6369 - 50-Amp Twistlock
1
