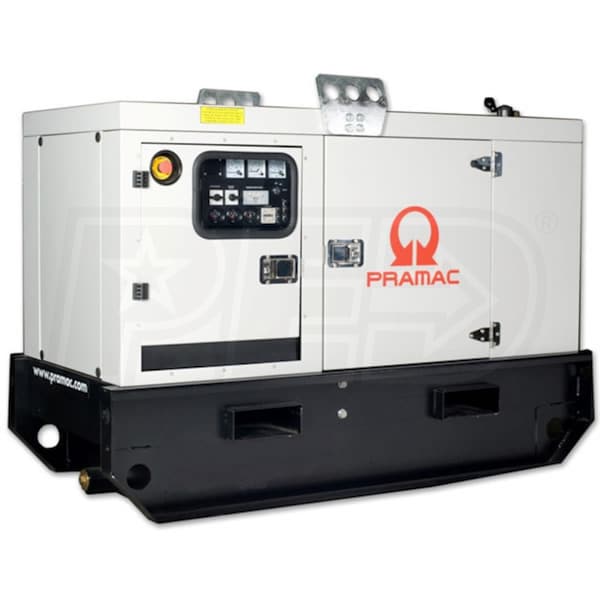

Pramac 19kW Industrial Diesel Standby Generator w/ Yanmar Engine

Model:

GRW25Y

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Pramac 19kW Industrial Diesel Standby Generator w/ Yanmar Engine
Pramac 19kW Industrial Diesel Standby Generator w/ Yanmar Engine
Model: GRW25Y
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Grade

Professional

Style

RV

Run Watts

19,000 Rated Watts

Surge Watts

19,000
Starting Watts

Fuel

Diesel

Engine

Yanmar

  • Pramac Industrial GRW Series Skid-Mounted Diesel Generator
  • Suitable for most applications; Home Standby & Jobsite
  • 2.2L Yanmar Inline 4-Cylinder Liquid-Cooled Diesel Engine
  • 1800 RPM design provides reliability and fuel efficiency
  • Large 53-Gallon Integral Single-Wall Fuel Tank
  • Allows for up to 47 hours of run time @ 3/4 load

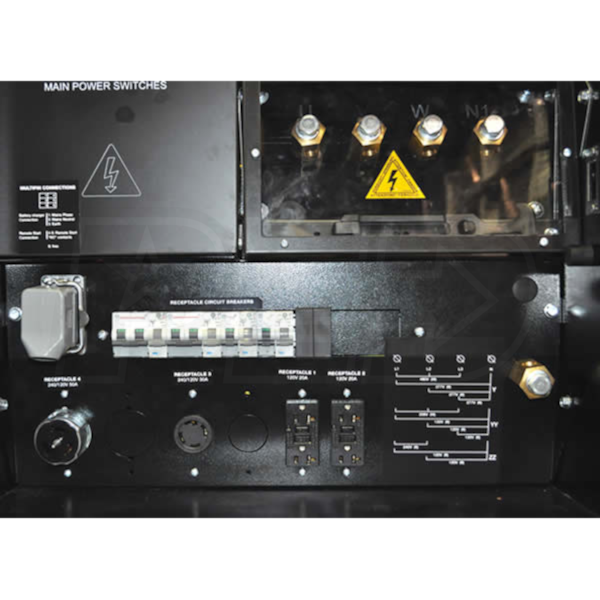

  • Voltage Selector Switch - 240V (1-Phase), 208V & 480V (3-Phase)
  • Ready for manual or auto-start operation (2-wire)

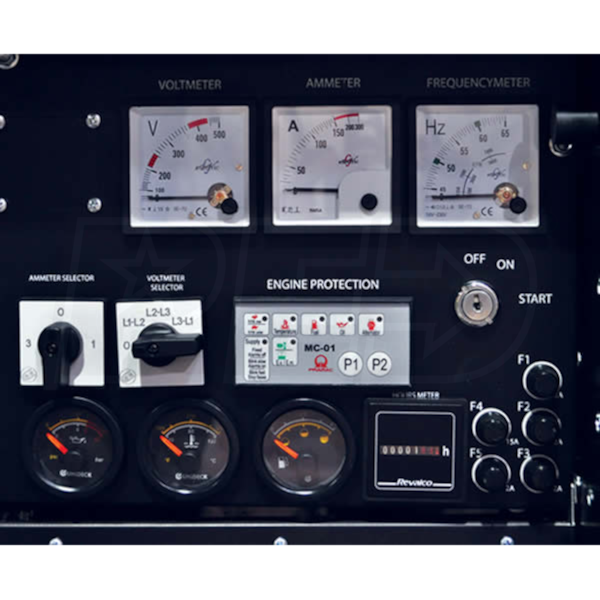

  • Manual Control Panel w/ Analog Gauges
  • Provides easy monitoring of genset operation
  • Lockable, see-through door and start/stop selector w/ key
  • High Performance Sound Attenuation
  • Integral residential-type muffler reduces sound level to 65 dB(A)
  • Single-Key Secured Access To Components
  • Makes it easy to service and prevents tampering
  • Galvanized Skids Frame

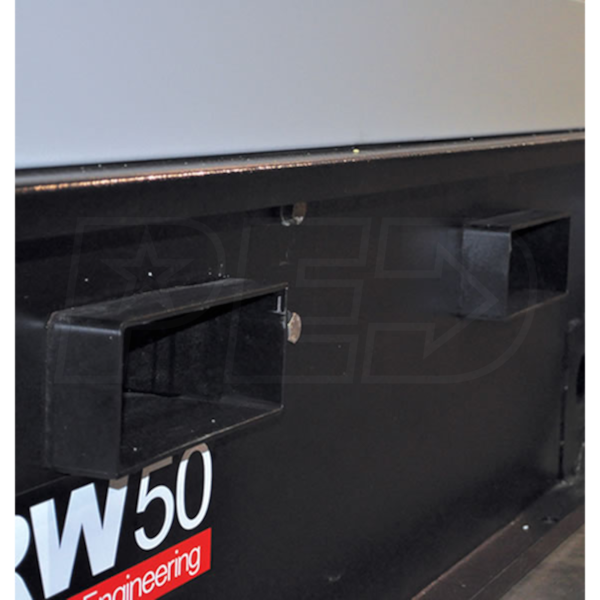

  • Fork lift pockets allow for easy transportation
  • Includes Battery Trickle Charger
  • Compatible w/ RTR GRW15Y-GRW50Y Trailer (Sold Separately)
  • 1-Year Limited Warranty - Crane Recommended For Delivery

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
CS6369 (50-Amp Twistlock)
GRW25Y
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
19000 Watts
Surge Watts
19000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
1.25 gallons/hr
Tank Size
53 Gallons
Run Time @ 50% Load
58.3 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included (800 CCA)
Grade Type
Professional
Engine
Engine Brand
Yanmar
Starting System
12v Auto Start
CC
2200 CC
Consumer Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
2174 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Length
74.8 Inches
Product Style
RV Generator
Product Width
35.7 Inches
Product Height
53.5 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
CS6369 - 50-Amp Twistlock
1
