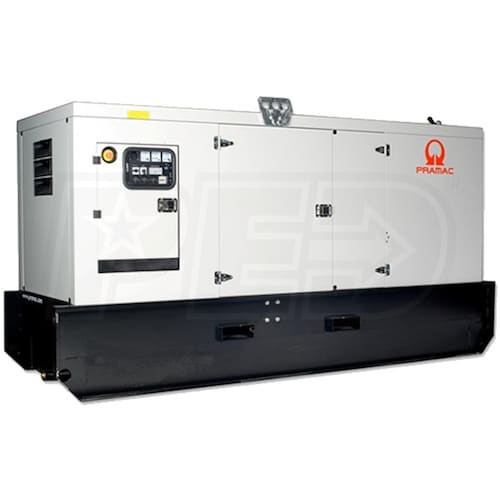

Pramac 143kW Industrial Diesel Standby Generator w/ Perkins Engine

Pramac 143kW Industrial Diesel Standby Generator w/ Perkins Engine
Our Price
Compare Prices
Shipping Info
Model: GRW160P
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii, California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
143,000
Rated Watts
Surge Watts
143,000
Starting Watts
Fuel
Engine
Perkins
Grade
Professional
Style
RV
Run Watts
143,000
Surge Watts
143,000 Starting Watts
Fuel
Diesel
Engine
Perkins
Features
Features
  • Pramac Industrial GRW Series Skid-Mounted Diesel Generator
  • Suitable for most applications; Home Standby & Jobsite
  • 6.6L Perkins Inline 6-Cylinder Liquid-Cooled Turbo-Diesel Engine
  • 1800 RPM design provides reliability and fuel efficiency
  • Large 260-Gallon Integral Single-Wall Fuel Tank
  • Allows for up to 37 hours of run time @ 3/4 load
  • Voltage Selector Switch - 240V (1-Phase), 208V & 480V (3-Phase)
  • Ready for manual or auto-start operation (2-wire)

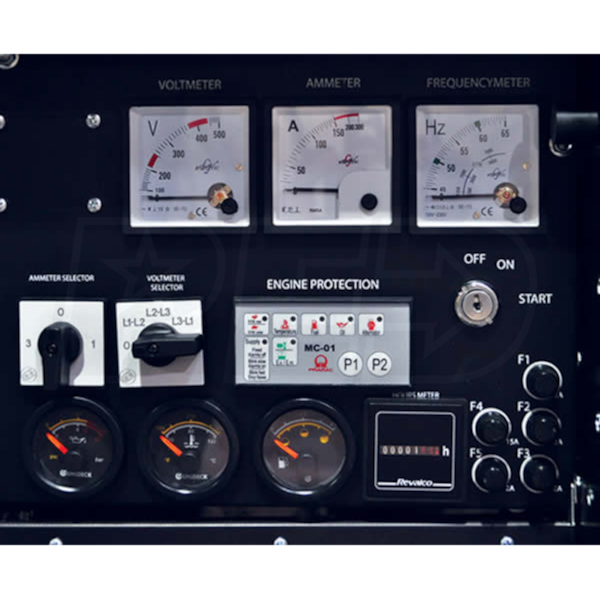

  • Manual Control Panel w/ Analog Gauges
  • Provides easy monitoring of genset operation
  • Lockable, see-through door and start/stop selector w/ key
  • High Performance Sound Attenuation
  • Integral residential-type muffler reduces sound level to 72 dB(A)
  • Single-Key Secured Access To Components
  • Makes it easy to service and prevents tampering
  • Galvanized Skids Frame

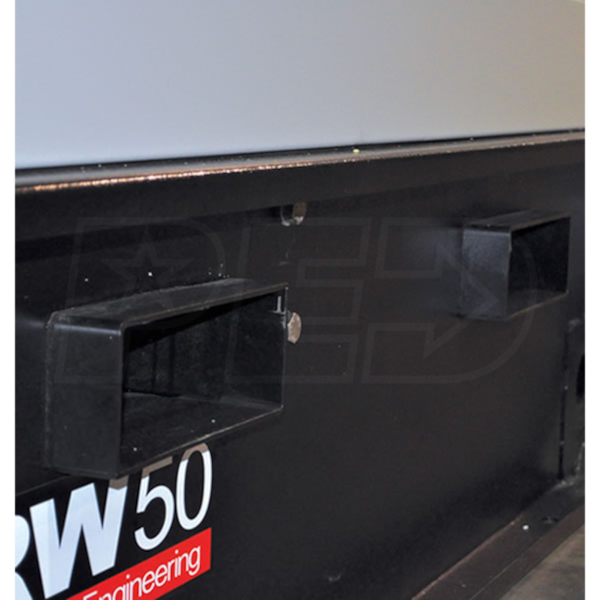

  • Fork lift pockets allow for easy transportation
  • Includes Battery Trickle Charger
  • Compatible w/ RTR GRW160P-GRW200P Trailer (Sold Separately)
  • 1-Year Limited Warranty - Crane Recommended For Delivery
Specifications

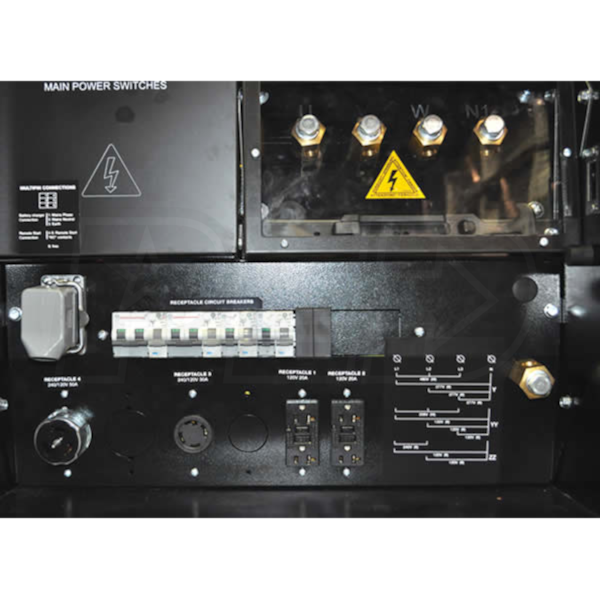

Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
143000 Watts
Surge Watts
143000 Watts
Fuel Type
Diesel
Tank Size
260 Gallons
Run Time @ 50% Load
46.3 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Perkins
Starting System
12v Auto Start
CC
6600 CC
Consumer Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
6290 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Style
RV Generator
Product Length
143.7 Inches
Product Width
51.6 Inches
Product Height
76.2 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
CS6369 - 50-Amp Twistlock
1
Grade
Style
Run Watts
143,000
Rated Watts
Surge Watts
143,000
Starting Watts
Fuel
Engine
Perkins
Grade
Professional
Style
RV
Run Watts
143,000
Surge Watts
143,000 Starting Watts
Fuel
Diesel
Engine
Perkins
Features
Features
  • Pramac Industrial GRW Series Skid-Mounted Diesel Generator
  • Suitable for most applications; Home Standby & Jobsite
  • 6.6L Perkins Inline 6-Cylinder Liquid-Cooled Turbo-Diesel Engine
  • 1800 RPM design provides reliability and fuel efficiency
  • Large 260-Gallon Integral Single-Wall Fuel Tank
  • Allows for up to 37 hours of run time @ 3/4 load
  • Voltage Selector Switch - 240V (1-Phase), 208V & 480V (3-Phase)
  • Ready for manual or auto-start operation (2-wire)
  • Manual Control Panel w/ Analog Gauges
  • Provides easy monitoring of genset operation
  • Lockable, see-through door and start/stop selector w/ key
  • High Performance Sound Attenuation
  • Integral residential-type muffler reduces sound level to 72 dB(A)
  • Single-Key Secured Access To Components
  • Makes it easy to service and prevents tampering
  • Galvanized Skids Frame
  • Fork lift pockets allow for easy transportation
  • Includes Battery Trickle Charger
  • Compatible w/ RTR GRW160P-GRW200P Trailer (Sold Separately)
  • 1-Year Limited Warranty - Crane Recommended For Delivery
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
143000 Watts
Surge Watts
143000 Watts
Fuel Type
Diesel
Tank Size
260 Gallons
Run Time @ 50% Load
46.3 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Perkins
Starting System
12v Auto Start
CC
6600 CC
Consumer Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
6290 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Style
RV Generator
Product Length
143.7 Inches
Product Width
51.6 Inches
Product Height
76.2 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
CS6369 - 50-Amp Twistlock
1
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
143000 Watts
Surge Watts
143000 Watts
Fuel Type
Diesel
Tank Size
260 Gallons
Run Time @ 50% Load
46.3 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Perkins
Starting System
12v Auto Start
CC
6600 CC
Consumer Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
6290 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Style
RV Generator
Product Length
143.7 Inches
Product Width
51.6 Inches
Product Height
76.2 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
CS6369 - 50-Amp Twistlock
1
