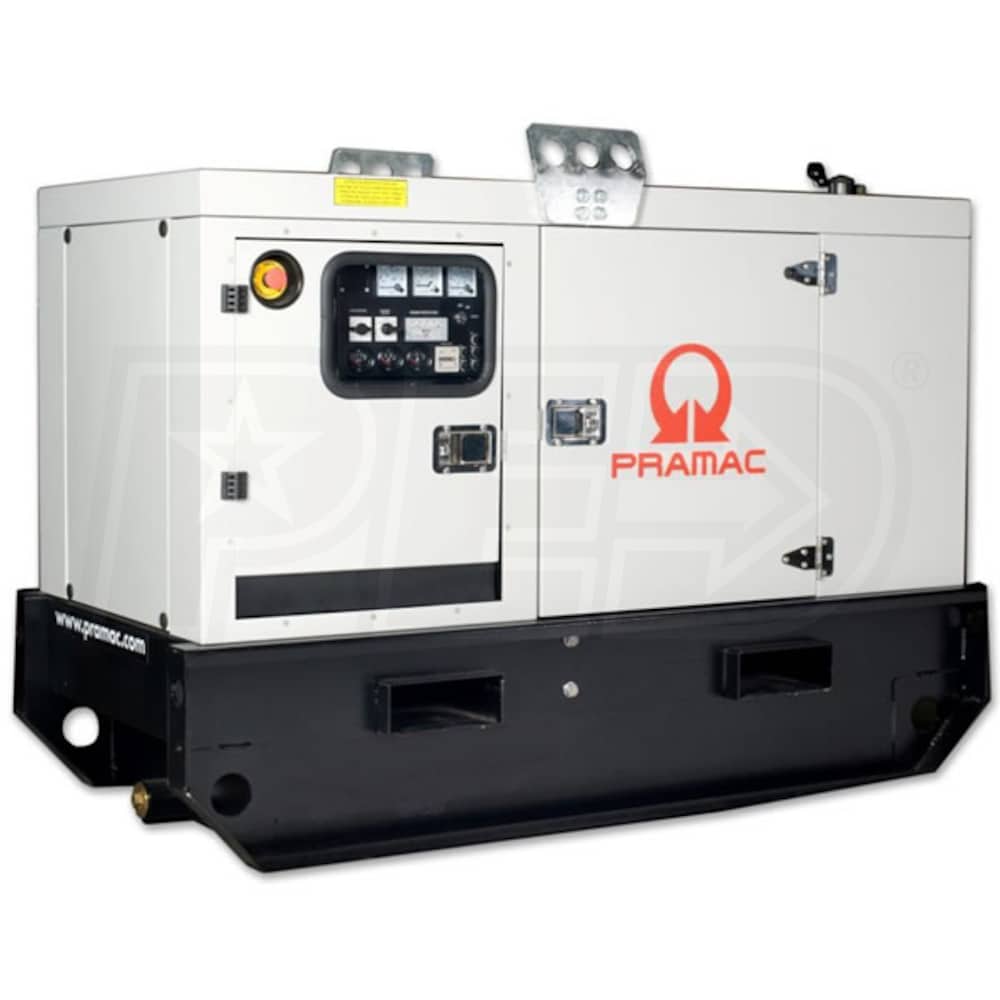

Pramac 13kW Industrial Diesel Standby Generator w/ Yanmar Engine
Pramac 13kW Industrial Diesel Standby Generator w/ Yanmar Engine
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
13,000
Rated Watts
Surge Watts
13,000
Starting Watts
Fuel
Engine
Yanmar
Grade
Professional
Style
RV
Run Watts
13,000
Surge Watts
13,000 Starting Watts
Fuel
Diesel
Engine
Yanmar
Features
Features
- Pramac Industrial GRW Series Skid-Mounted Diesel Generator
- Suitable for most applications; Home Standby & Jobsite
- 1.6L Yanmar Inline 3-Cylinder Liquid-Cooled Diesel Engine
- 1800 RPM design provides reliability and fuel efficiency
- Large 53-Gallon Integral Single-Wall Fuel Tank
- Allows for up to 62.2 hours of run time @ 3/4 load
- Designed For Multiple Applications
- Ready for manual or auto-start operation (2-wire)

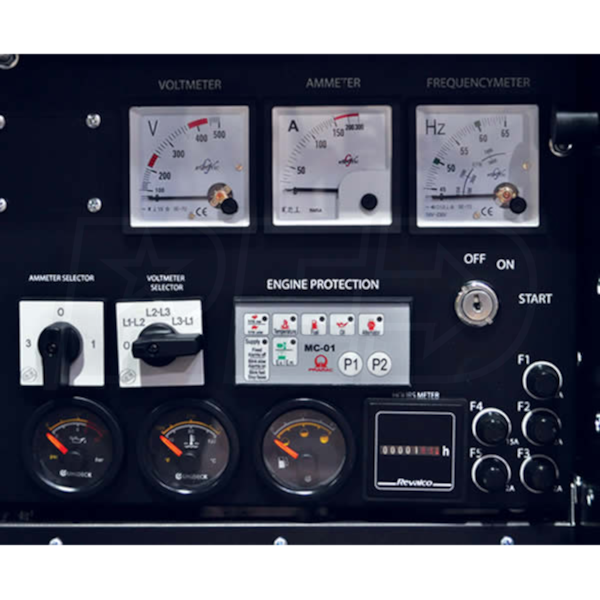

- Manual Control Panel w/ Analog Gauges
- Provides easy monitoring of genset operation
- Lockable, see-through door and start/stop selector w/ key
- High Performance Sound Attenuation
- Integral residential-type muffler reduces sound level to 65 dB(A)
- Single-Key Secured Access To Components
- Makes it easy to service and prevents tampering

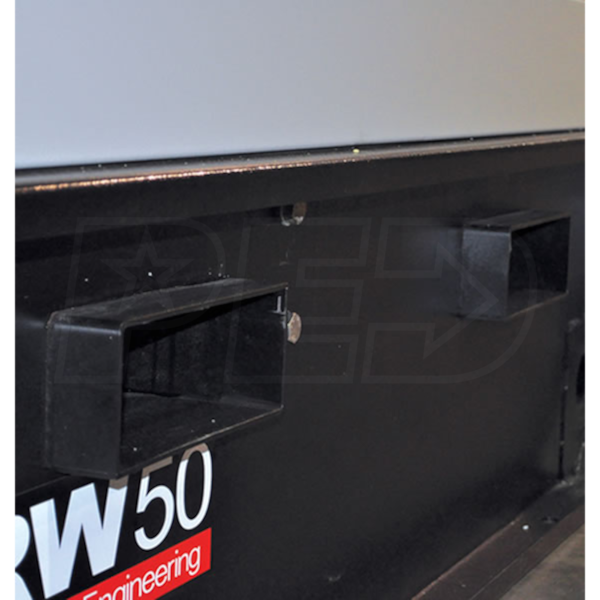

- Galvanized Skids Frame
- Fork lift pockets allow for easy transportation
- Includes Battery Trickle Charger
- Compatible w/ RTR GRW15Y-GRW50Y Trailer (Sold Separately)
- 1-Year Limited Warranty -Crane Recommended For Delivery
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
13000 Watts
Surge Watts
13000 Watts
Fuel Type
Diesel
Rated Amps
54 Amps
Diesel Fuel Consumption @ 50% Load
1.25 gallons/hr
Tank Size
53 Gallons
Run Time @ 50% Load
77.6 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included (800 CCA)
Grade Type
Professional
Engine
Engine Brand
Yanmar
Starting System
12v Auto Start
CC
1600 CC
Consumer Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
1993 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Style
RV Generator
Product Length
74.8 Inches
Product Width
35.7 Inches
Product Height
53.5 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
CS6369 - 50-Amp Twistlock
1
