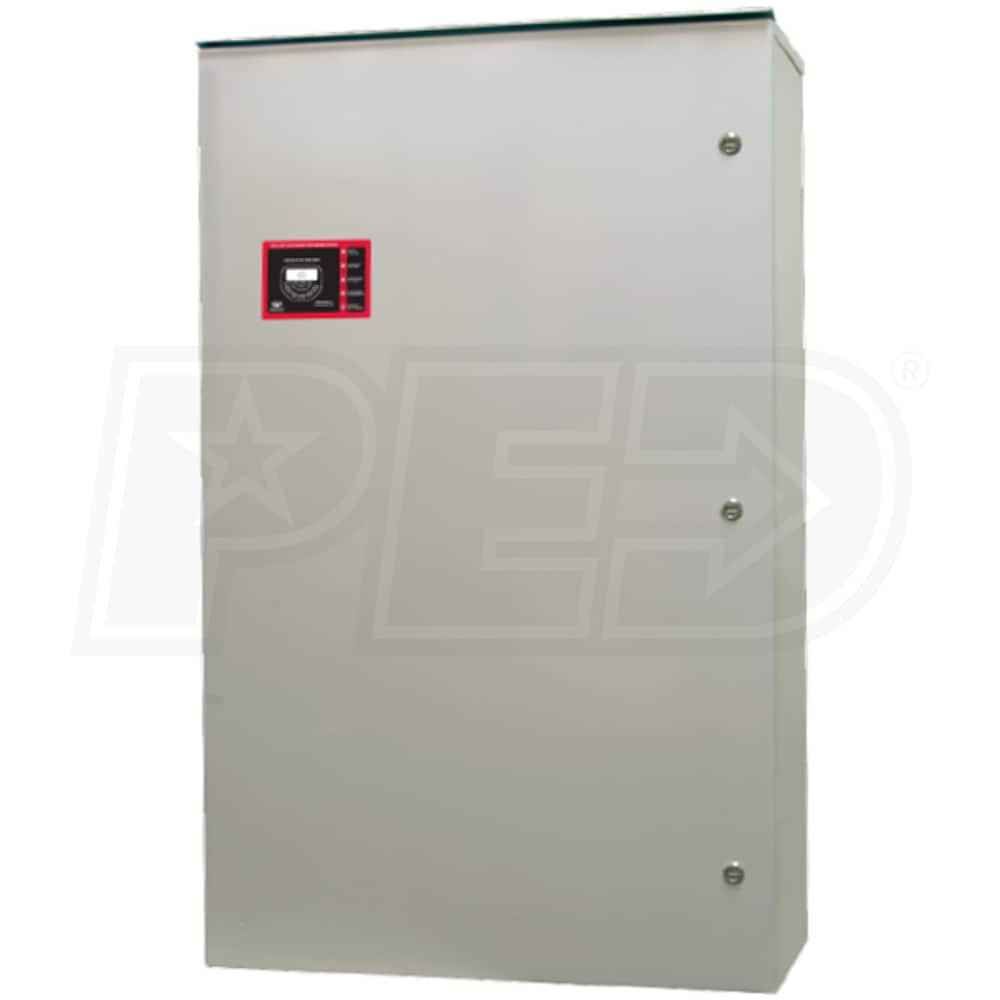

Milbank Vigilant Series 200-Amp Outdoor Automatic Transfer Switch

Milbank Vigilant Series 200-Amp Outdoor Automatic Transfer Switch



Product Discontinued Product Discontinued
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Standard
Amp Rating
200
Load Mgmt.
Enclosure
NEMA 3R
Type
Standart
?>
Enclosure
NEMA 3R


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 200-Amp Vigilant Series Outdoor Automatic Transfer Switch
  • Automatically transfers critical loads during an outage
  • Double Throw, Mechanically Interlocked Switch
  • Provides a rugged, contractor design for reliable switching
  • VTSC100 Logic Controller Board w/ Internal Test Switch
  • Designed to provide all basic transfer switch control functions
  • VTSC100 Controller Features
  • Powered from genset battery for isolation against line transients
  • Integrated voltage and frequency sensing
  • Adjustable transfer delays using on-board potentiometers
  • Fused remote start contact relays
  • Adjustable drop-out & pick-up values for voltage and frequency
  • Galvanized NEMA 3 Outdoor Enclosure
  • Provides 2x the life span of regular steel enclosures
  • Conformally Coated Controller Board
  • An effective barrier against moisture, fungus & contaminants
  • Operator Interface w/ External Access
  • Easy-to-use, 7-day exerciser, Accessible from outside the switch
  • No need to open the door to adjust clock or view switch status
  • ***2 Wire Start/Remote Start
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Service Disconnect
No
Max Utility Input
2000 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
55 Pounds
Product Length
16 Inches
Product Width
14 Inches
Product Height
7 Inches
Consumer Warranty
5 Years
UPC
78457269060
Type
Standard
Amp Rating
200
Load Mgmt.
Enclosure
NEMA 3R
Type
Standart
?>
Enclosure
NEMA 3R


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 200-Amp Vigilant Series Outdoor Automatic Transfer Switch
  • Automatically transfers critical loads during an outage
  • Double Throw, Mechanically Interlocked Switch
  • Provides a rugged, contractor design for reliable switching
  • VTSC100 Logic Controller Board w/ Internal Test Switch
  • Designed to provide all basic transfer switch control functions
  • VTSC100 Controller Features
  • Powered from genset battery for isolation against line transients
  • Integrated voltage and frequency sensing
  • Adjustable transfer delays using on-board potentiometers
  • Fused remote start contact relays
  • Adjustable drop-out & pick-up values for voltage and frequency
  • Galvanized NEMA 3 Outdoor Enclosure
  • Provides 2x the life span of regular steel enclosures
  • Conformally Coated Controller Board
  • An effective barrier against moisture, fungus & contaminants
  • Operator Interface w/ External Access
  • Easy-to-use, 7-day exerciser, Accessible from outside the switch
  • No need to open the door to adjust clock or view switch status
  • ***2 Wire Start/Remote Start
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Service Disconnect
No
Max Utility Input
2000 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
55 Pounds
Product Length
16 Inches
Product Width
14 Inches
Product Height
7 Inches
Consumer Warranty
5 Years
UPC
78457269060
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Service Disconnect
No
Max Utility Input
2000 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
55 Pounds
Product Length
16 Inches
Product Width
14 Inches
Product Height
7 Inches
Consumer Warranty
5 Years
UPC
78457269060
