Milbank Vigilant Series 100-Amp Outdoor Automatic Transfer Switch

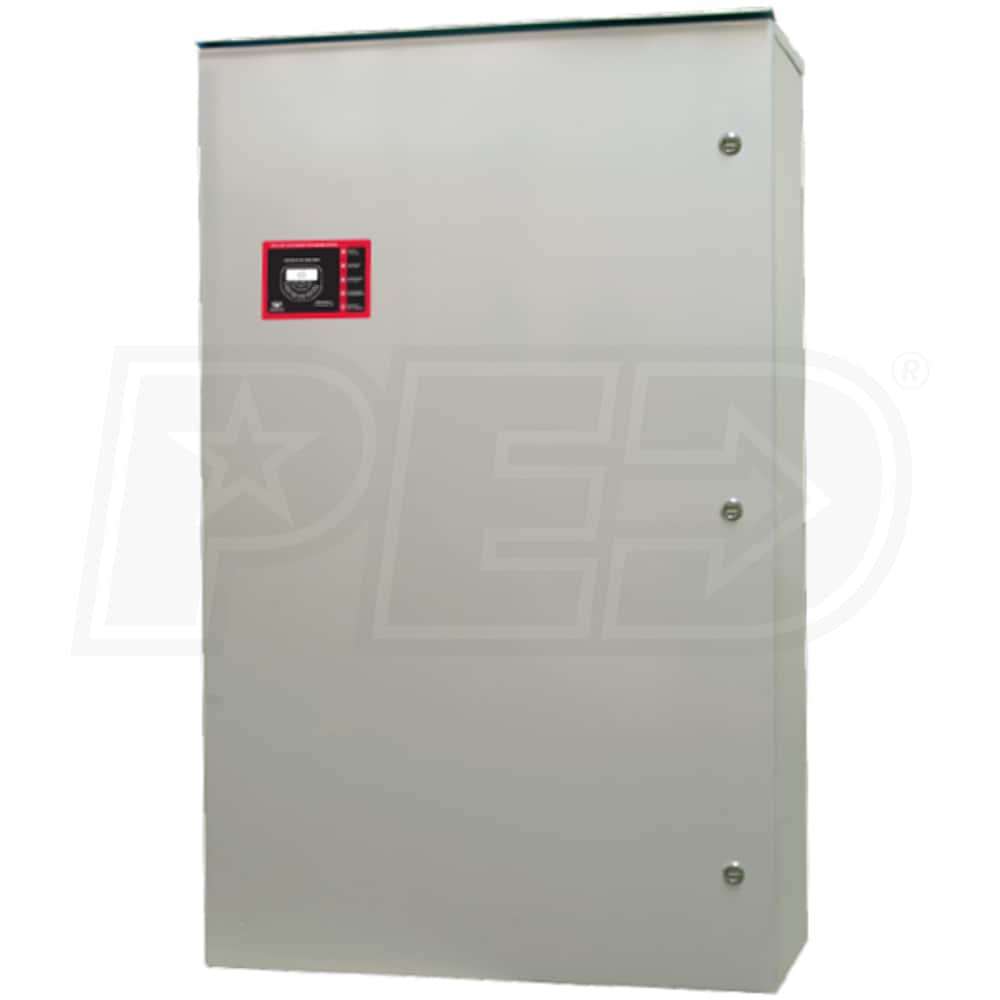

Milbank Vigilant Series 100-Amp Outdoor Automatic Transfer Switch



Product Discontinued Product Discontinued
Share
  • Product Description
  • 1
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Type
Standard
Amp Rating
100
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Type
Standart
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 100-Amp Vigilant Series Outdoor Automatic Transfer Switch
  • Automatically transfers critical loads during an outage
  • Double Throw, Mechanically Interlocked Switch
  • Provides a rugged, contractor design for reliable switching
  • VTSC100 Logic Controller Board w/ Internal Test Switch
  • Designed to provide all basic transfer switch control functions
  • VTSC100 Controller Features
  • Powered from genset battery for isolation against line transients
  • Integrated voltage and frequency sensing
  • Adjustable transfer delays using on-board potentiometers
  • Fused remote start contact relays
  • Adjustable drop-out & pick-up values for voltage and frequency
  • Galvanized NEMA 3 Outdoor Enclosure
  • Provides 2x the life span of regular steel enclosures
  • Conformally Coated Controller Board
  • An effective barrier against moisture, fungus & contaminants
  • Operator Interface w/ External Access
  • Easy-to-use, 7-day exerciser, Accessible from outside the switch
  • No need to open the door to adjust clock or view switch status
  • ***2 Wire Start/Remote Start
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
24000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
Overview
Weight
25 Pounds
Product Length
16 Inches
Product Width
14 Inches
Product Height
6 Inches
Consumer Warranty
5 Years
UPC
78457269077
Type
Standard
Amp Rating
100
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Type
Standart
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
