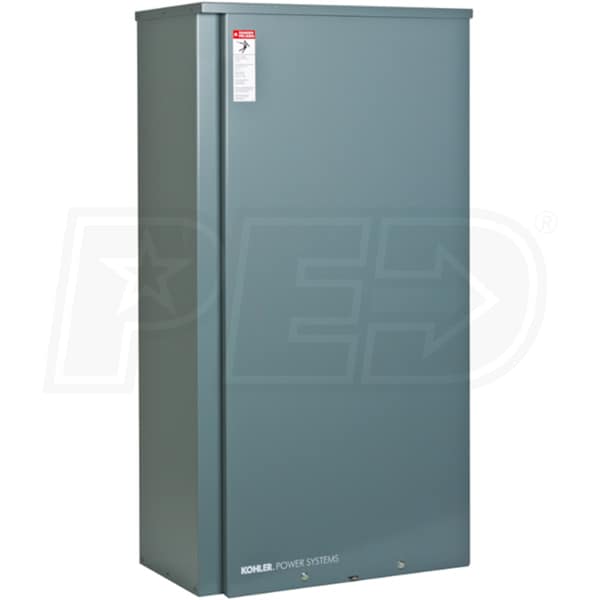

Kohler RXT Series 200-Amp Outdoor Automatic Transfer Switch (277/480V 3-Phase)
Model: RXT-JMTC-0200A-QS1
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$1,223.00
Holiday Shipping Schedule
Holiday Schedule -
Free Lift Gate
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Learn More Installation
Direct Dollars
Earn up to 10% back in Direct Dollars
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Standard
Amp Rating
200
Load Mgmt.
Enclosure
Type
Standard
Features
Features
  • Kohler RXT Series 200-Amp Automatic Transfer Switch
  • For use w/ 48RCL 277/480V 3-Phase models
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Standard Installation
  • Requires a sub-panel for overload protection
  • Rated at 200-Amps @ 277/480-Volts
  • 5-Year Limited Warranty
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Transfer Switch Style
Standard Installation
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Overview
Weight
30 Pounds
Consumer Warranty
5 Years
Product Depth
9 Inches
Product Width
18.2 Inches
Product Height
26.9 Inches
UPC
650531125484
Additional Model Numbers
RXT-JMTC-0200A, RXT-JMTC-0200A-QS1
Type
Standard
Amp Rating
200
Load Mgmt.
Enclosure
Type
Standard
Features
Features
  • Kohler RXT Series 200-Amp Automatic Transfer Switch
  • For use w/ 48RCL 277/480V 3-Phase models
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Standard Installation
  • Requires a sub-panel for overload protection
  • Rated at 200-Amps @ 277/480-Volts
  • 5-Year Limited Warranty
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Transfer Switch Style
Standard Installation
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Overview
Weight
30 Pounds
Consumer Warranty
5 Years
Product Depth
9 Inches
Product Width
18.2 Inches
Product Height
26.9 Inches
UPC
650531125484
Additional Model Numbers
RXT-JMTC-0200A, RXT-JMTC-0200A-QS1
