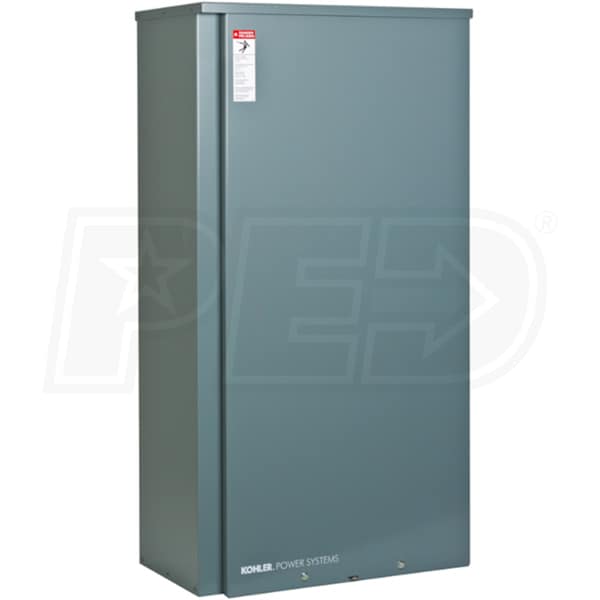

Kohler RXT Series 400-Amp Outdoor Automatic Transfer Switch (Service Disconnect)
Model: RXT-JFNC-0400ASE
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews(1)
Write a Review
$2,699.00
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Learn More Installation
Share
  • Product Description
  • 1
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Service Disconnect
Amp Rating
400
Load Mgmt.
Enclosure
NEMA 3R
Type
Service Disconnect
Enclosure
NEMA 3R
Features
Features
  • Kohler RXT Series 400-Amp Automatic Transfer Switch
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Service Entrance Rated
  • Includes disconnect circuit breakers on both sources
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Rated at 400-Amps @ 240-Volts
  • 5-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
101 Pounds
Consumer Warranty
5 Years
Product Depth
12.9 Inches
Product Width
22 Inches
Product Height
42.3 Inches
UPC
650531125262
Type
Service Disconnect
Amp Rating
400
Load Mgmt.
Enclosure
NEMA 3R
Type
Service Disconnect
Enclosure
NEMA 3R
Features
Features
  • Kohler RXT Series 400-Amp Automatic Transfer Switch
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Service Entrance Rated
  • Includes disconnect circuit breakers on both sources
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Rated at 400-Amps @ 240-Volts
  • 5-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
101 Pounds
Consumer Warranty
5 Years
Product Depth
12.9 Inches
Product Width
22 Inches
Product Height
42.3 Inches
UPC
650531125262
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
101 Pounds
Consumer Warranty
5 Years
Product Depth
12.9 Inches
Product Width
22 Inches
Product Height
42.3 Inches
UPC
650531125262
