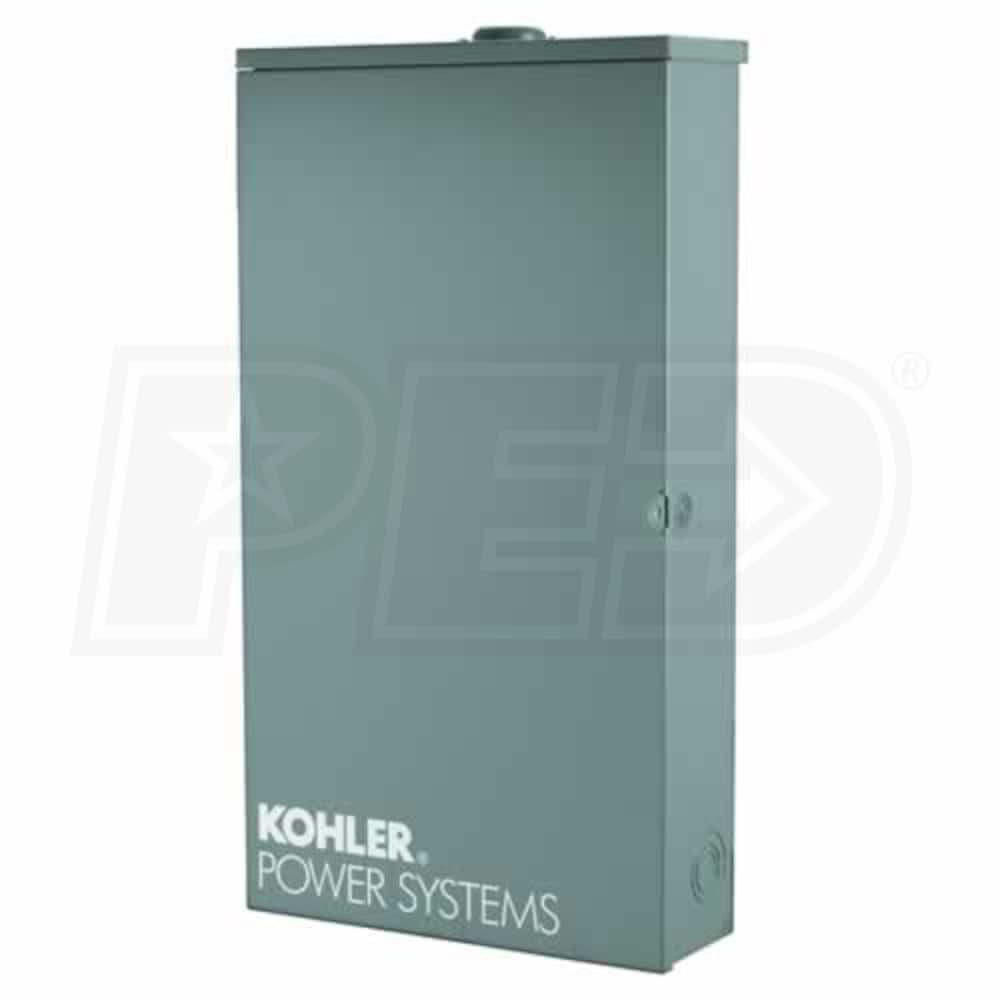

Kohler RDT Series 400-Amp Automatic Transfer Switch (Service Disconnect)
Model: RDT-CFNC-400ASE
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$2,743.00
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Learn More Installation
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Service Disconnect
Amp Rating
400
Load Mgmt.
Not Included
Enclosure
NEMA 3R
Type
Service Disconnect
Load Mgmt.
Not Included
Enclosure
NEMA 3R
Features
Features
  • Standard Features
  • Service Entrance Rated
  • UL listed and CSA certified
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 3R (outdoor) enclosure
  • MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
  • 5-year limited warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Included
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
101 Pounds
Consumer Warranty
5 Years
Product Depth
10.6 Inches
Product Width
22 Inches
Product Height
42 Inches
UPC
650531171955
Additional Model Numbers
RDT-CFNC-0400ASE, RDT-CFNC-400ASE
Type
Service Disconnect
Amp Rating
400
Load Mgmt.
Not Included
Enclosure
NEMA 3R
Type
Service Disconnect
Load Mgmt.
Not Included
Enclosure
NEMA 3R
Features
Features
  • Standard Features
  • Service Entrance Rated
  • UL listed and CSA certified
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 3R (outdoor) enclosure
  • MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
  • 5-year limited warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Included
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
101 Pounds
Consumer Warranty
5 Years
Product Depth
10.6 Inches
Product Width
22 Inches
Product Height
42 Inches
UPC
650531171955
Additional Model Numbers
RDT-CFNC-0400ASE, RDT-CFNC-400ASE
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Included
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
101 Pounds
Consumer Warranty
5 Years
Product Depth
10.6 Inches
Product Width
22 Inches
Product Height
42 Inches
UPC
650531171955
Additional Model Numbers
RDT-CFNC-0400ASE, RDT-CFNC-400ASE
Reviews
(1)
+
Kohler RDT-CFNC-400ASE Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
Hey Jim, I'm upgrading my service to a 400 amp. and while doing so would like to install a transfer switch. I'm looking at the Generac @ RTSD400A3, it seens to have some nice features and would fit nicely in the space available. The Generator would be installed later. Would this unit be compatible with all generator manufactures? I like Kolher generators would there be any issues? Thanks
Randy Stubbs
from Maryland
February 24, 2012
Answer
Unfortunately these products are proprietary so Generac only works with Generac and Kohler only works with Kohler. If you are planning on purchasing a Kohler generator you will need to purchase a Kohler switch.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
