Kohler RDT-CFNC-0100A
Kohler RDT-CFNC-0100A
Hover to zoom
1 Of 5

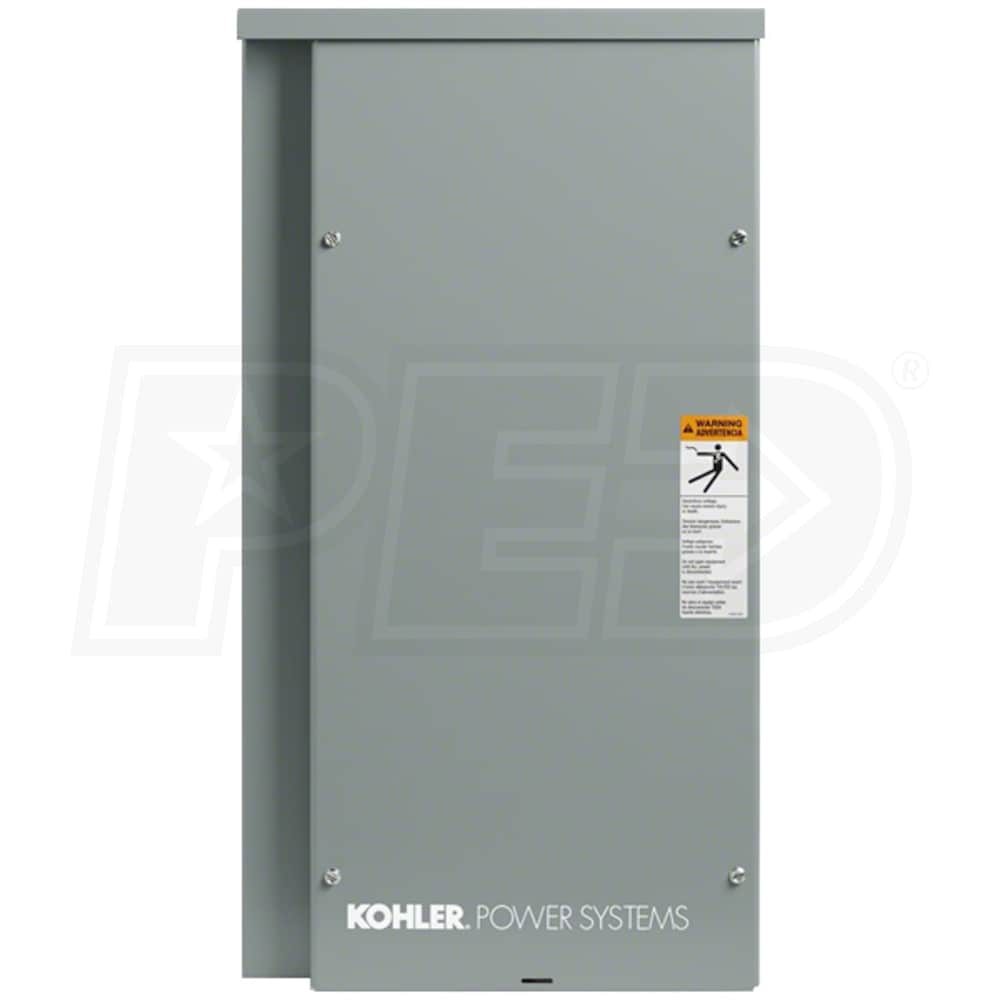

Kohler RDT Series 100-Amp Outdoor Automatic Transfer Switch
Model: RDT-CFNC-0100A
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$637.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 3-5 Days
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Available Add-Ons
Learn More Installation
Share
  • Product Description
  • 1
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Standard
Amp Rating
100
Load Mgmt.
Enclosure
NEMA 3R
Type
Standart
Enclosure
NEMA 3R
Features
Features
  • Standard Features
  • UL listed and CSA certified
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 3R (outdoor) enclosure
  • MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
  • 5-year limited warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
2 Poles
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
Overview
Weight
15 Pounds
Consumer Warranty
5 Years
Product Depth
7 Inches
Product Width
13.4 Inches
Product Height
24.1 Inches
UPC
650531125071
Type
Standard
Amp Rating
100
Load Mgmt.
Enclosure
NEMA 3R
Type
Standart
Enclosure
NEMA 3R
Features
Features
  • Standard Features
  • UL listed and CSA certified
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 3R (outdoor) enclosure
  • MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
  • 5-year limited warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
2 Poles
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
Overview
Weight
15 Pounds
Consumer Warranty
5 Years
Product Depth
7 Inches
Product Width
13.4 Inches
Product Height
24.1 Inches
UPC
650531125071
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
2 Poles
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
Overview
Weight
15 Pounds
Consumer Warranty
5 Years
Product Depth
7 Inches
Product Width
13.4 Inches
Product Height
24.1 Inches
UPC
650531125071
