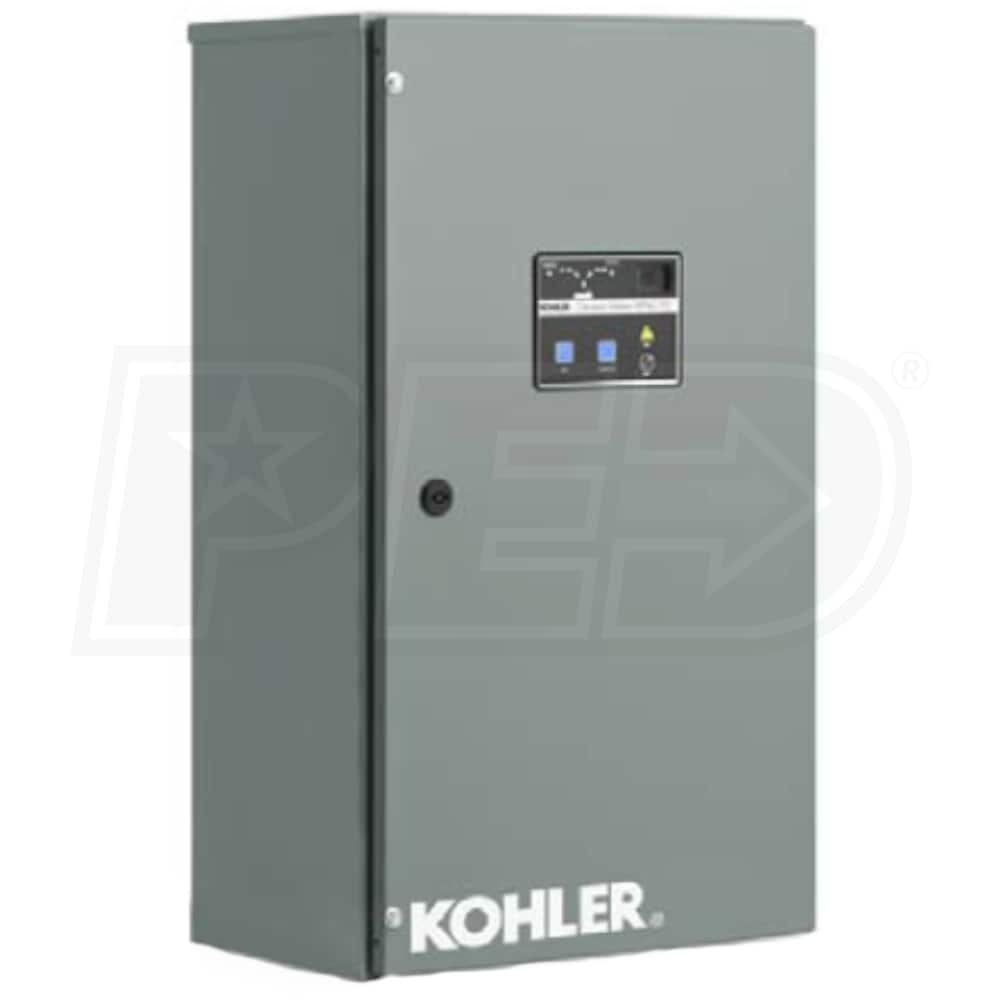

Kohler KSS-Series 800-Amp Automatic Transfer Switch w/ MPAC 750 Controller (120/240V 3-Phase)

Model:

KSS-JFTC-0800S-QS1

Write A Review
$7,953.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
synchrony card logo
$140 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Kohler KSS-Series 800-Amp Automatic Transfer Switch w/ MPAC 750 Controller (120/240V 3-Phase)
Kohler KSS-Series 800-Amp Automatic Transfer Switch w/ MPAC 750 Controller (120/240V 3-Phase)
Model: KSS-JFTC-0800S-QS1
$7,953.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

800

Load Mgmt.

Voltage

120/240 Three-Phase

Enclosure

NEMA 3R

  • Kohler KSS-Series 800-Amp Automatic Transfer Switch
  • Compatible with all Kohler 120/240V 3-phase generators
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Lockable, approved for indoor & outdoor installations
  • Double-Throw, Mechanically Interlocked Design (BBM)
  • Provides a rugged, contractor design for reliable switching
  • Decision-MakerŪ MPAC 750 Controller w/ LED Indicators
  • Source available, switch positions, service req'd (faults) & "not in auto"
  • Ability to program voltage pickup/dropout settings & time delays
  • Programmable 7-Day Generator Exerciser
  • Easy setup so you can pick the time that works best for you
  • Individual "Test" & "Exercise" push-buttons for added convenience
  • Added Features
  • High withstand/closing ratings for use with specific breakers only (see spec)
  • Front-accessible contacts for easy inspection
  • Standard Installation
  • Requires a sub-panel for overload protection
  • Rated at 800-Amps @ 240V
  • Please See Spec Sheet For Codes/Standards/Certifications
  • Standard 1-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

KSS-JFTC-0800S-QS1
specs product image PID-117476
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
498 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
20.3 Inches
Product Width
34 Inches
Product Height
76.1 Inches
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
800 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
800 Amps
Max Generator Input
800 Amps
UL Listed
Yes
