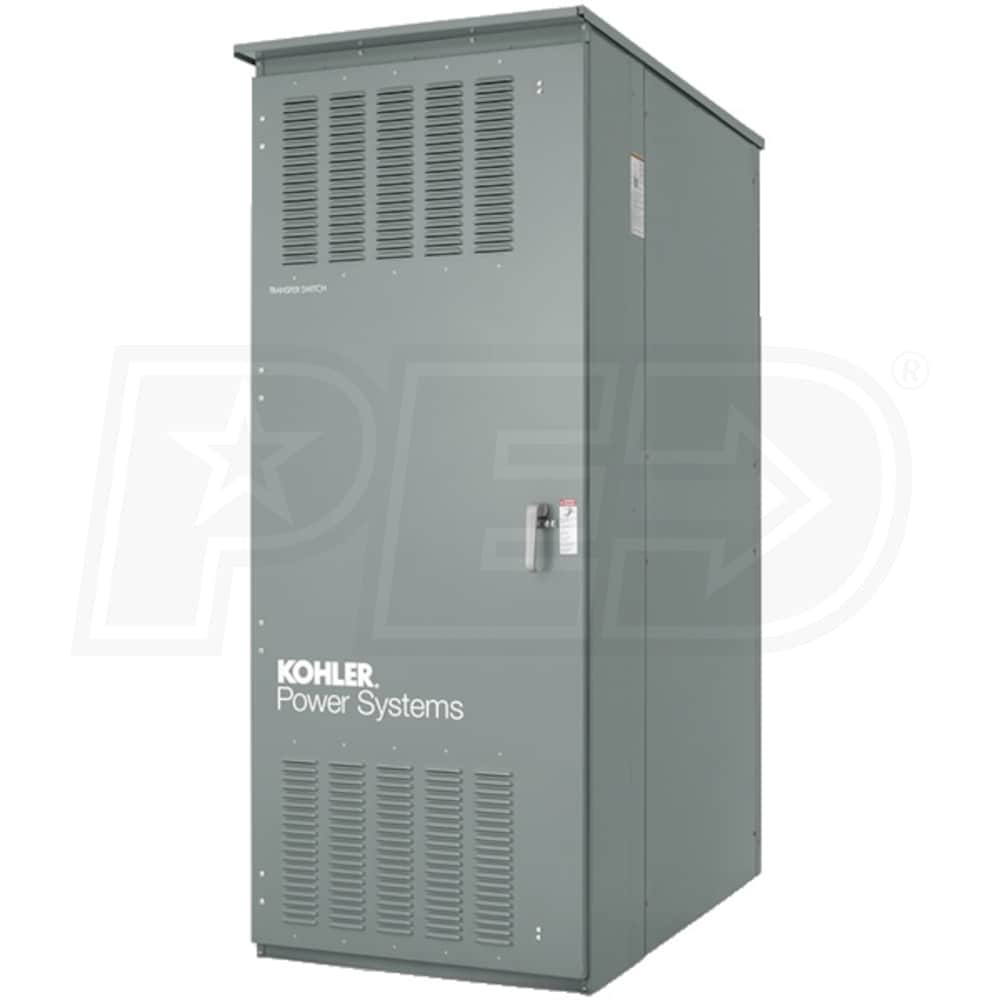

Kohler KEP-Series 600-Amp Automatic Transfer Switch (Service Disconnect)
Model: KEP-DFNC-0600S
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$8,099.00
Lift Gate
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Learn More Installation
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Service Disconnect
Amp Rating
600
Load Mgmt.
Enclosure
NEMA 3R
Type
Service Disconnect
Enclosure
NEMA 3R
Features
Features
  • Kohler KEP-Series 600-Amp Automatic Transfer Switch
  • Compatible with all Kohler 120/240V 1-phase generators
  • Service Entrance Rated - 2-Position Switch w/ Padlockable Cover
  • Eliminates need to have a separate, upstream utility source CB/disc.
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Lockable, approved for indoor & outdoor installations
  • Heavy-Duty Brushless Gear Motor & Operating Mechanism
  • Mechanical interlocking, for long life with minimal maintenance
  • Decision-MakerŪ MPAC 1500 Controller w/ Backlit 4-Line LCD
  • Allows for easy programming & status viewing right on the door
  • Source available, switch positions, service req'd (faults) & "not in auto"
  • Fully-Programmable w/ Modbus Communication Standard
  • Vol/Hz pickup/dropout, time delays, generator exerciser
  • RS-485/Ethernet communication standard & 2 in-puts/2 ou-tputs
  • Separate Utility & Generator Set Power Switching Units
  • Provide redundancy and allows for quick, easy service
  • Fully enclosed silver alloy contacts provide high withstand rating
  • Rated at 600-Amps @ 240V
  • Please See Spec Sheet For Codes/Standards/Certifications
  • Standard 1-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
144000 Watts
Rated Amps
600 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
600 Amps
Max Generator Input
600 Amps
Maximum Wattage
144000 Watts
UL Listed
Yes
Overview
Weight
441 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
19.1 Inches
Product Width
39.2 Inches
Product Height
48 Inches
UPC
650531170293
Type
Service Disconnect
Amp Rating
600
Load Mgmt.
Enclosure
NEMA 3R
Type
Service Disconnect
Enclosure
NEMA 3R
Features
Features
  • Kohler KEP-Series 600-Amp Automatic Transfer Switch
  • Compatible with all Kohler 120/240V 1-phase generators
  • Service Entrance Rated - 2-Position Switch w/ Padlockable Cover
  • Eliminates need to have a separate, upstream utility source CB/disc.
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Lockable, approved for indoor & outdoor installations
  • Heavy-Duty Brushless Gear Motor & Operating Mechanism
  • Mechanical interlocking, for long life with minimal maintenance
  • Decision-MakerŪ MPAC 1500 Controller w/ Backlit 4-Line LCD
  • Allows for easy programming & status viewing right on the door
  • Source available, switch positions, service req'd (faults) & "not in auto"
  • Fully-Programmable w/ Modbus Communication Standard
  • Vol/Hz pickup/dropout, time delays, generator exerciser
  • RS-485/Ethernet communication standard & 2 in-puts/2 ou-tputs
  • Separate Utility & Generator Set Power Switching Units
  • Provide redundancy and allows for quick, easy service
  • Fully enclosed silver alloy contacts provide high withstand rating
  • Rated at 600-Amps @ 240V
  • Please See Spec Sheet For Codes/Standards/Certifications
  • Standard 1-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
144000 Watts
Rated Amps
600 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
600 Amps
Max Generator Input
600 Amps
Maximum Wattage
144000 Watts
UL Listed
Yes
Overview
Weight
441 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
19.1 Inches
Product Width
39.2 Inches
Product Height
48 Inches
UPC
650531170293
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
144000 Watts
Rated Amps
600 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
600 Amps
Max Generator Input
600 Amps
Maximum Wattage
144000 Watts
UL Listed
Yes
Overview
Weight
441 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
19.1 Inches
Product Width
39.2 Inches
Product Height
48 Inches
UPC
650531170293
