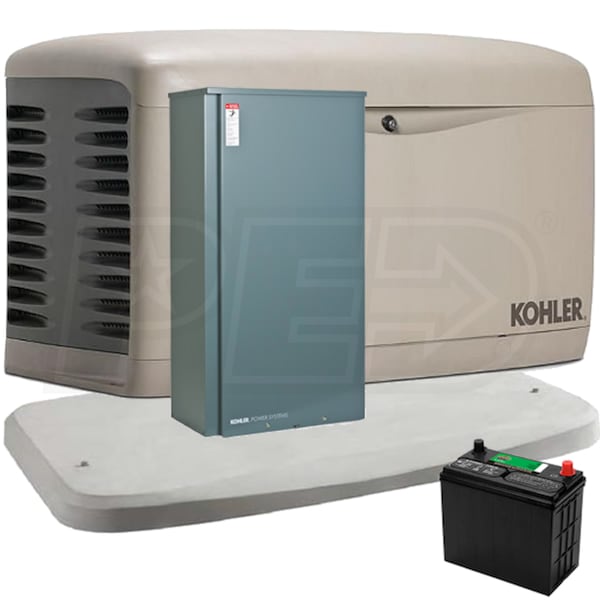

Kohler 20kW Composite Standby Generator System (200A Service Disc. w/ Load Shedding) + 3" Mounting Pad + Battery

Model:

EGD-20RESCL-200SELSKIT

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kohler 20kW Composite Standby Generator System (200A Service Disc. w/ Load Shedding) + 3
Kohler 20kW Composite Standby Generator System (200A Service Disc. w/ Load Shedding) + 3" Mounting Pad + Battery
Model: EGD-20RESCL-200SELSKIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

20,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Kohler

  • Kohler 20RESCL Air-Cooled Standby Generator System
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • Premium 5-Year / 2000 Hour Limited Warranty
  • Backed by Kohler's extraordinary reliability & performance

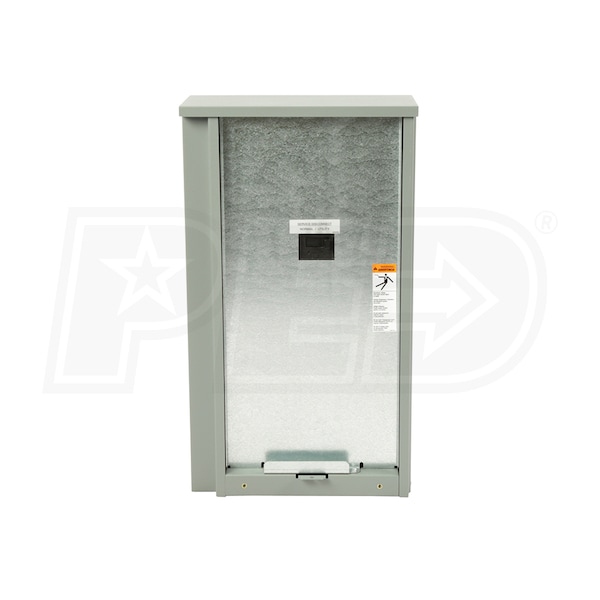

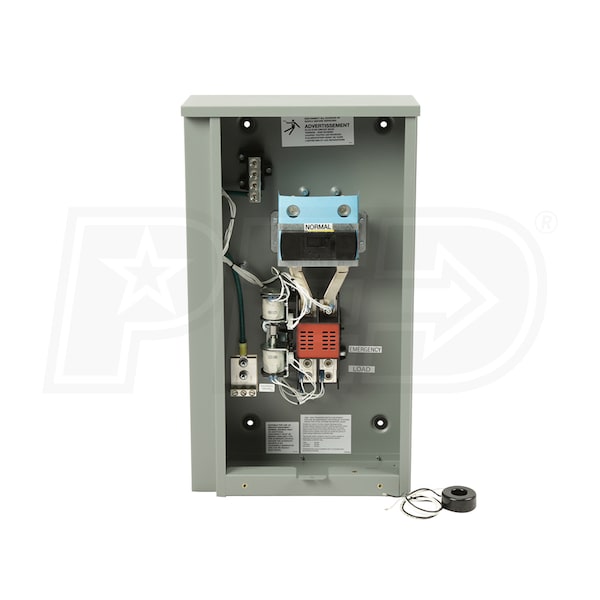

  • RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch
  • Mounts between meter and main service panel
  • Built-In Load Shed - Manage (2) HVAC + (4) Non-Essential loads***
  • Fast Response Time & PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Kohler generators restore power in as little as 10 seconds
  • Cleaner Power for Sensitive Electronics
  • Protects sophisticated electronics with low distortion (THD)
  • RDC2 Controller
  • Provides advanced control, system monitoring & diagnostics
  • 2.5-Amp 120V battery charger - eliminates separate 6-Amp charger
  • 2-Line Backlit LCD Digital Display & Real-Time Clock To Set Weekly Exercise
  • No More Codes - Easy to read local data access in all lighting conditions
  • Compatible w/ OnCue Plus & OnCue Plus Wireless Generator Management Systems
  • Real-time power status and the ability to manage your entire backup system
  • Kohler Command PRO® OHV Engine
  • Runs on clean-burning Natural Gas or LPG
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx 69 dB(A) @ 23 ft.
  • Exclusive 100% Corrosion-Proof Composite Enclosure & Polymer Base
  • Will not rust - even in harsh seaside environments
  • ^^^Not Compatible For Off-Grid Applications^^^
  • Approved for stationary standby applications in locations served by a reliable utility source
  • Includes Kohler® 3 Concrete Mounting Pad
  • Allows for easy installation of your Kohler® standby generator
  • Also Includes Interstate Group 51 12-Volt Battery
  • ***Requires PRM (Sold Separately)
  • Product Includes
    • (1) Kohler 20RESCL-200SELS 20kW Composite Standby Generator System (200A Service Disc. w/ Load Shedding) (20RESCL-200SELS)
    • (1) Kohler 3" Concrete Mounting Pad for 14 / 20 RESA/RESAL & 20RESC/RESCL Standby Generators (GM90969)
    • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (V51-6)
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Kohler 20RESCL-200SELS 20kW Composite Standby Generator System (200A Service Disc. w/ Load Shedding) (20RESCL-200SELS)
  • (1) Kohler 3" Concrete Mounting Pad for 14 / 20 RESA/RESAL & 20RESC/RESCL Standby Generators (GM90969)
  • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (V51-6)
EGD-20RESCL-200SELSKIT
specs product image PID-82384
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m Learn More
69 Run (64 Test) dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Included
Enclosure
Composite
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
500 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
20RESCL-200SELS
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m Learn More
69 Run (64 Test) dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (500 CCA)
Enclosure
Composite
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
500 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Product Specs
Frequency
60 Hertz
Overview
Weight
190 Pounds
Product Length
54 Inches
Product Width
31 Inches
Product Height
3 Inches
