Kohler 24RCLA - 23kW Emergency Standby Power Generator (120/208V Three-Phase)

Model:

24RCLA-QS2

Write a Review
$11,175.00
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 16-20 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
synchrony card logo
$196 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Kohler 24RCLA - 23kW Emergency Standby Power Generator (120/208V Three-Phase)
Kohler 24RCLA - 23kW Emergency Standby Power Generator (120/208V Three-Phase)
Model: 24RCLA-QS2
$11,175.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

23,000 Rated Watts

Voltage

120/208 Three-Phase

Fuel

LP/Natural Gas

Engine

Kohler

  • 23kW (LPG) / 21kW (NG) Liquid-Cooled Standby Generator
  • For commercial buildings with 120/208V 3-Phase service
  • Premium 5-Year / 2000 Hour Limited Warranty
  • Backed by Kohler's extraordinary reliability & performance
  • Brushless-Alternator For High Quality, Cleaner Generator Power
  • Advanced voltage / Hz regulation prevents unstable power
  • Protects sophisticated electronics with ultra-low distortion (THD)
  • RDC2 Digital Controller - Controls Generator & RXT Transfer Switch*
  • Provides advanced control, system monitoring & diagnostics
  • Electronic speed control and digital voltage regulation (DVR)
  • Built-in 2.5 amp battery charger
  • 2-Line Backlit LCD Digital Display
  • Easy to read local data access in all lighting conditions
  • Programmable exerciser for weekly or bi-weekly self-testing
  • 2.2L Liquid-Cooled Engine (1800 RPM)
  • Runs on clean burning Natural Gas or LP fuel
  • Simple field conversion while maintaining emission certification
  • Sound-Attenuating Aluminum Enclosure
  • Fade, scratch, & corrosion-resistant powder-baked finish
  • Meets 181 MPH wind load rating
  • "Quieter" Cooling System
  • Electronic fan, internal silencer & acoustic insulation
  • Keeps dB under 61 @ 7M (23') during normal operation

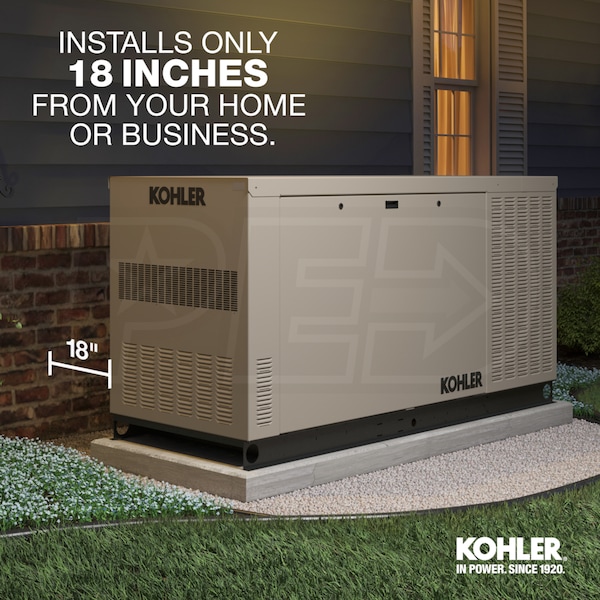

  • Meets NFPA 37 4.1.4 Requirements For Reduced Setback
  • Can be installed within 18" of structure
  • GFCI Service Outlet
  • Ideal for powering heater kits or for powering service tools

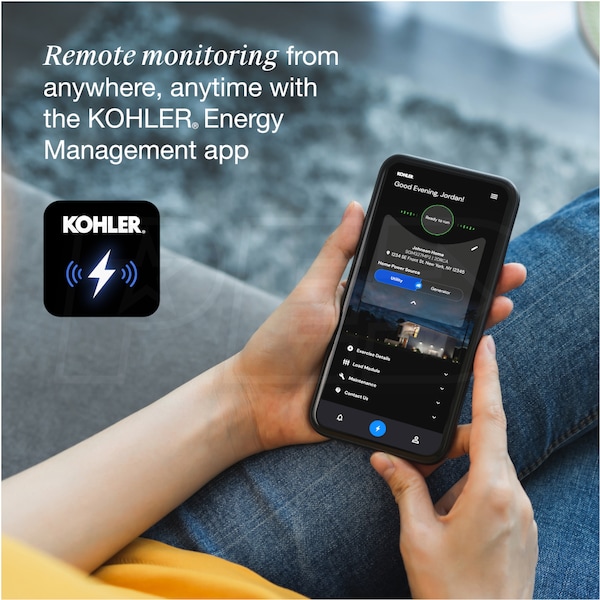

  • Standard OnCue® Plus Generator Management Systems
  • Real-time power status and the ability to manage your entire backup system
  • ***Not Compatible For Off-Grid Applications***
  • Approved for stationary standby applications in locations served by a reliable utility source
  • *Requires Automatic Transfer Switch (Sold Separately)
  • ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
24RCLA-QS2
specs product image PID-114822
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
23000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
21000 Watts
LP Power Capacity
23000 Watts
NG Fuel Consumption @ 50% Load
199 ft³/hr
NG Fuel Consumption @ 100% Load
301 ft³/hr
LP Fuel Consumption @ 50% Load
2.4 gallons/hr
LP Fuel Consumption @ 100% Load
3.2 gallons/hr
Rated Amps
81 Amps
Decibel Rating @ 7m Learn More
53 Test (61 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (630 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
Grade Type
Emergency
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
2200 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
1260 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
74 Inches
Product Style
Standby Generator
Product Width
32.9 Inches
Product Height
45.1 Inches
Plugs
NEMA 5-20R - GFCI
1
