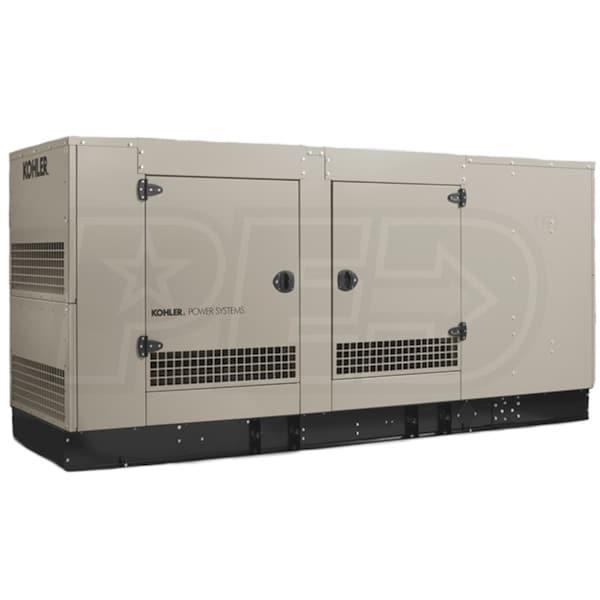

Kohler 150ERESC-MV12 - 150 kW Emergency Standby Power Generator (Steel) (244/480V 3-Phase)
Model: 150ERESC-MV12
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
150,000
Rated Watts
Voltage
277/480 Three-Phase
Fuel
Engine
PSI
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
150,000
Voltage
277/480 Three-Phase
Fuel
LP/Natural Gas
Engine
PSI
Features
Features
- Kohler 150ERESC Light Commercial Emergency Generator
- For commercial buildings with 277/480V 3-Phase service
- Industrial-Grade PSI 8.8L Turbocharged V-8 Engine (1800 RPM)
- A powerful, reliable & fuel efficient motor that's built to last
- Remarkable Power Quality
- Exceptional voltage & frequency regulation w/ ultra-low THD
- Clean power for even the most sensitive electronics
- Fast-Response X Excitation System
- Easily handle full loads within 7-10 seconds
- Kohler® AMP402 Controller
- Provides advanced control, system monitoring & diagnostics
- Digital Display & Menu For Local Data Access
- Remote communication through a PC via network or serial confg.
- Sound-Attenuating Steel Enclosure
- Fade, scratch, & corrosion-resistant textured e-coat paint
- Internal silencer & acoustic insulation keeps dB under 73 @ 7M
- Includes Pre-Installed Block Heater
- Provides easier generator starting & quicker warm up times
- Added Features
- Electronic Governor, Battery Rack & Cables
- Oil drain extension, Local emerengcy stop buttown & Owner's Manual
- ***Not Compatible For Off-Grid Applications***
- Approved for stationary standby applications in locations served by a reliable utility source
- Industry-Leading 5 Year or 2000 Hour Standby Warranty
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Watts
150000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
150000 Watts
LP Power Capacity
139000 Watts
NG Fuel Consumption @ 50% Load
1102 ft³/hr
NG Fuel Consumption @ 100% Load
1965 ft³/hr
LP Fuel Consumption @ 50% Load
11.3 gallons/hr
LP Fuel Consumption @ 100% Load
20.2 gallons/hr
Rated Amps
226 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
73 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (630 CCA)
Enclosure
Steel
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
PSI
Starting System
12v Auto Start
CC
8800 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
4183 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
139 Inches
Product Width
45.4 Inches
Product Height
66.8 Inches
Grade
Style
Run Watts
150,000
Rated Watts
Voltage
277/480 Three-Phase
Fuel
Engine
PSI
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
150,000
Voltage
277/480 Three-Phase
Fuel
LP/Natural Gas
Engine
PSI
Features
Features
- Kohler 150ERESC Light Commercial Emergency Generator
- For commercial buildings with 277/480V 3-Phase service
- Industrial-Grade PSI 8.8L Turbocharged V-8 Engine (1800 RPM)
- A powerful, reliable & fuel efficient motor that's built to last
- Remarkable Power Quality
- Exceptional voltage & frequency regulation w/ ultra-low THD
- Clean power for even the most sensitive electronics
- Fast-Response X Excitation System
- Easily handle full loads within 7-10 seconds
- Kohler® AMP402 Controller
- Provides advanced control, system monitoring & diagnostics
- Digital Display & Menu For Local Data Access
- Remote communication through a PC via network or serial confg.
- Sound-Attenuating Steel Enclosure
- Fade, scratch, & corrosion-resistant textured e-coat paint
- Internal silencer & acoustic insulation keeps dB under 73 @ 7M
- Includes Pre-Installed Block Heater
- Provides easier generator starting & quicker warm up times
- Added Features
- Electronic Governor, Battery Rack & Cables
- Oil drain extension, Local emerengcy stop buttown & Owner's Manual
- ***Not Compatible For Off-Grid Applications***
- Approved for stationary standby applications in locations served by a reliable utility source
- Industry-Leading 5 Year or 2000 Hour Standby Warranty
- ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Watts
150000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
150000 Watts
LP Power Capacity
139000 Watts
NG Fuel Consumption @ 50% Load
1102 ft³/hr
NG Fuel Consumption @ 100% Load
1965 ft³/hr
LP Fuel Consumption @ 50% Load
11.3 gallons/hr
LP Fuel Consumption @ 100% Load
20.2 gallons/hr
Rated Amps
226 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
73 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (630 CCA)
Enclosure
Steel
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
PSI
Starting System
12v Auto Start
CC
8800 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
4183 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
139 Inches
Product Width
45.4 Inches
Product Height
66.8 Inches
Product Specs
+−
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Watts
150000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
150000 Watts
LP Power Capacity
139000 Watts
NG Fuel Consumption @ 50% Load
1102 ft³/hr
NG Fuel Consumption @ 100% Load
1965 ft³/hr
LP Fuel Consumption @ 50% Load
11.3 gallons/hr
LP Fuel Consumption @ 100% Load
20.2 gallons/hr
Rated Amps
226 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
73 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (630 CCA)
Enclosure
Steel
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
PSI
Starting System
12v Auto Start
CC
8800 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
4183 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
139 Inches
Product Width
45.4 Inches
Product Height
66.8 Inches
