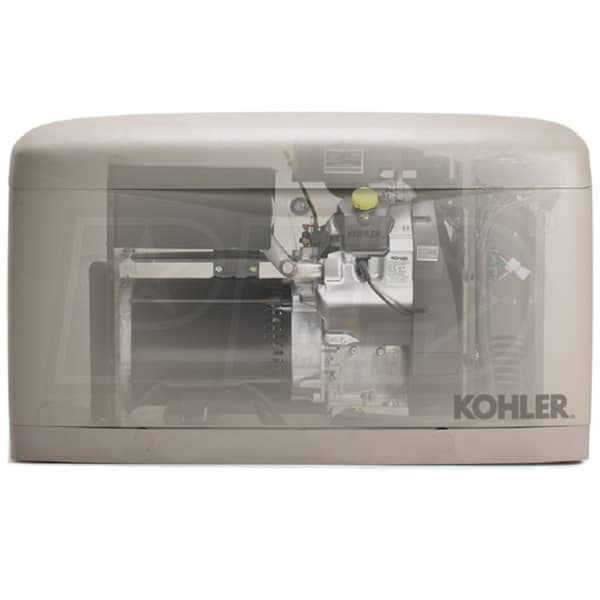

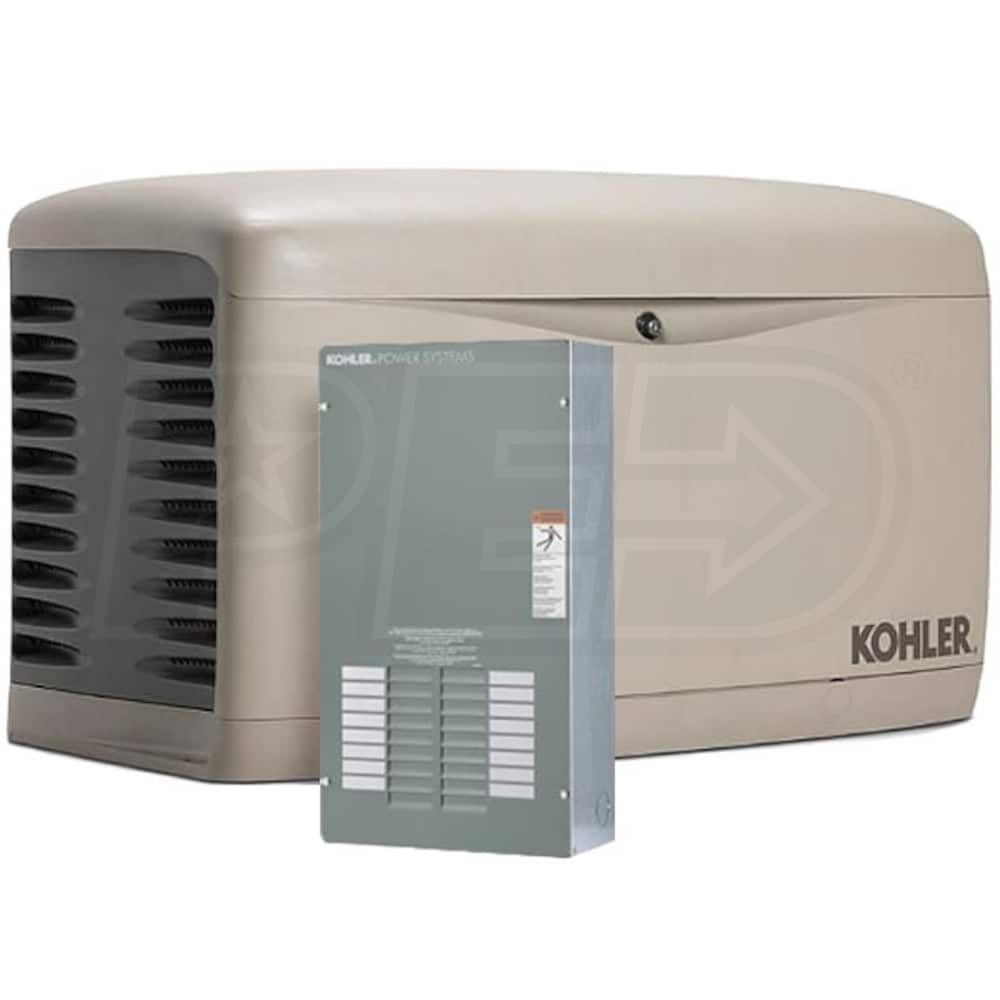

Kohler 14KW Composite Standby Generator System (100A Indoor 16-Circuit Switch)

Kohler 14KW Composite Standby Generator System (100A Indoor 16-Circuit Switch)
Our Price
Compare Prices
Shipping Info
Model: 14RESAL
(Based on expert analysis, manufacturer ratings and customer reviews)
4.6 out of 54.6 out of 54.6 out of 54.6 out of 54.6 out of 5
Number of Reviews (17)
Write A Review
$3,909.00
Only 5 In-Stock
Ships Tuesday, Nov 13th
Free Shipping
Free Lift Gate Service -
$100 Mail-In Rebate - Click Here For Printable Form
Switch Options
Add-Ons
+$99.99

In-Stock Free Shipping$3,909.00Buy Now
$3,909.00Visit Site
Only 5 In-Stock
Ships Tuesday, Nov 13th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 17
    Reviews
  • 9
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
14,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
14,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Kohler


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Includes 100-Amp Indoor Auto Switch w/ 16 Circuits-RXT-JFNC-0100B

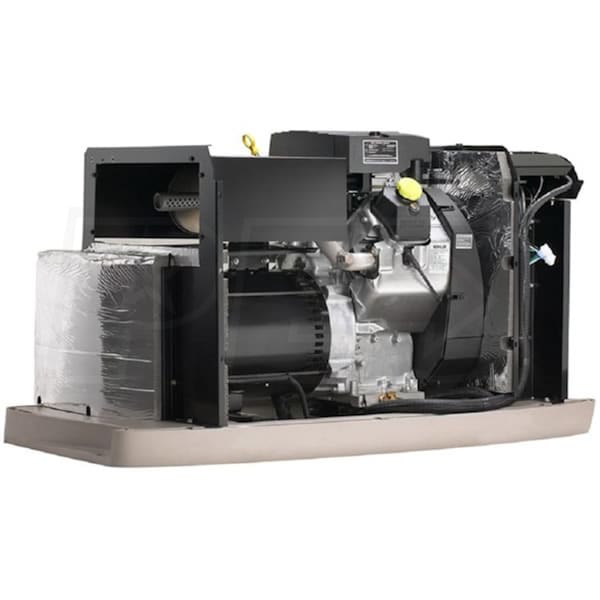

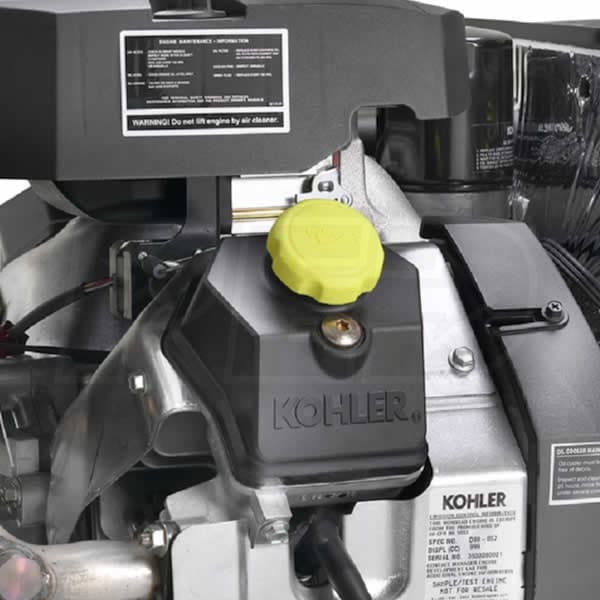

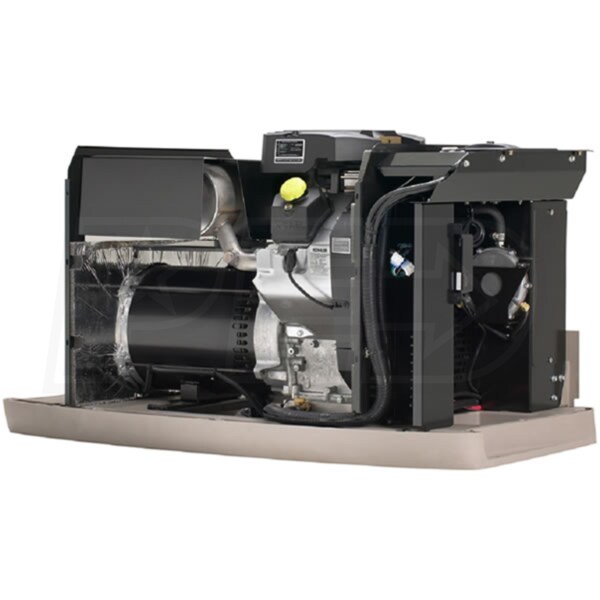

  • Kohler Command PRO® OHV Engine
  • Powerful and reliable engine with hydraulic valve lifters
  • Powerful Performance w/ PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Premium Power Quality (+/-1% Voltage Regulation)
  • Protects sophisticated electronics with low distortion (<5%THD)
  • Fast Response
  • Kohler™ generators restore power in as little as 10 seconds
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx 67 dB(A) at 7 m (23 ft)
  • New DC2 Controller
  • Easily view ATS status via LED lights on controller
  • Glare-resistant, 2-line 16-character display - No More Codes
  • Real time clock allows you to easily set weekly exercise
  • Optional OnCue Remote Monitoring System (Sold Separately)
  • Built-in Ethernet card, no hardware needed for OnCue

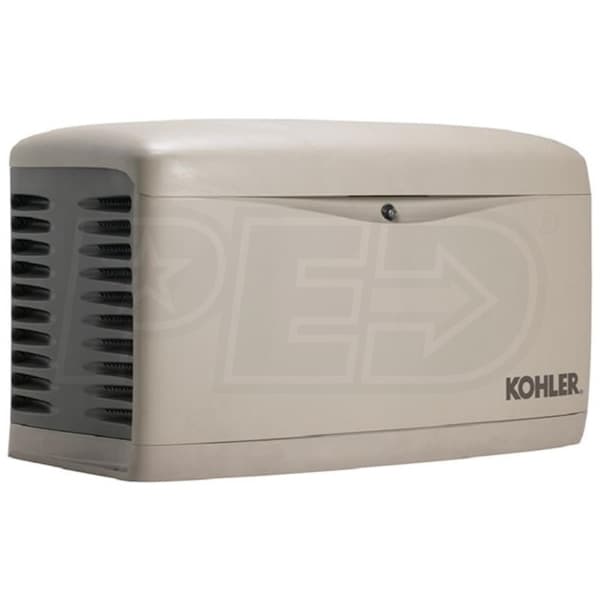

  • Exclusive 100% Corrosion-Proof Composite Enclosure
  • Will not rust - even in harsh seaside environments
  • Premium Warranty - 5-year/2,000-Hour Limited Warranty
Specifications
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
725 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
14000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
12000 Watts
LP Power Capacity
14000 Watts
NG Fuel Consumption @ 50% Load
124 ft³/hr
NG Fuel Consumption @ 100% Load
193 ft³/hr
LP Fuel Consumption @ 50% Load
1.8 gallons/hr
LP Fuel Consumption @ 100% Load
2.4 gallons/hr
Rated Amps
58 Amps
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 Test (67 Run) dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Enclosure
Composite
Max Circuits
16
Battery
Not Included (500 CCA)
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
410 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
650531126252
Grade
Style
Run Watts
14,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
14,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Kohler


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Includes 100-Amp Indoor Auto Switch w/ 16 Circuits-RXT-JFNC-0100B
  • Kohler Command PRO® OHV Engine
  • Powerful and reliable engine with hydraulic valve lifters
  • Powerful Performance w/ PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Premium Power Quality (+/-1% Voltage Regulation)
  • Protects sophisticated electronics with low distortion (<5%THD)
  • Fast Response
  • Kohler™ generators restore power in as little as 10 seconds
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx 67 dB(A) at 7 m (23 ft)
  • New DC2 Controller
  • Easily view ATS status via LED lights on controller
  • Glare-resistant, 2-line 16-character display - No More Codes
  • Real time clock allows you to easily set weekly exercise
  • Optional OnCue Remote Monitoring System (Sold Separately)
  • Built-in Ethernet card, no hardware needed for OnCue
  • Exclusive 100% Corrosion-Proof Composite Enclosure
  • Will not rust - even in harsh seaside environments
  • Premium Warranty - 5-year/2,000-Hour Limited Warranty
Specifications
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
725 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
14000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
12000 Watts
LP Power Capacity
14000 Watts
NG Fuel Consumption @ 50% Load
124 ft³/hr
NG Fuel Consumption @ 100% Load
193 ft³/hr
LP Fuel Consumption @ 50% Load
1.8 gallons/hr
LP Fuel Consumption @ 100% Load
2.4 gallons/hr
Rated Amps
58 Amps
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 Test (67 Run) dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Enclosure
Composite
Max Circuits
16
Battery
Not Included (500 CCA)
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
410 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
650531126252
Product Specs
+
Specifications
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
725 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
14000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
12000 Watts
LP Power Capacity
14000 Watts
NG Fuel Consumption @ 50% Load
124 ft³/hr
NG Fuel Consumption @ 100% Load
193 ft³/hr
LP Fuel Consumption @ 50% Load
1.8 gallons/hr
LP Fuel Consumption @ 100% Load
2.4 gallons/hr
Rated Amps
58 Amps
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 Test (67 Run) dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Enclosure
Composite
Max Circuits
16
Battery
Not Included (500 CCA)
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
410 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
650531126252
Reviews
(17)
+
Kohler 14RESAL Reviews & Ratings
91% of Reviewers Recommend This Product
Product Q&A
(9)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
Can this generator start under load?
John
from Florida
May 23, 2018
Answer
It is not recommended to start a generator under load. The transfer switch will also prevent that from happening.
+
When positioning the generator, how close to an opening in the house wall can it be?
Paul R.
from Virginia
May 10, 2018
Answer
The distance required is set by local codes and would recommend checking with a local inspector to see what distance is required. The unit itself needs to be a minimum of 3 feet from the house and in some applications, it will need to be more.
+
Can this Kohler 8kW Home Standby generator be started remotely?
Kris
from Idaho
December 22, 2016
Answer
This unit is a standby generator only and will only power up when utility power is lost. The generator cannot be manually/remotely started.
+
What is the breakdown of circuits in the 16 circuit automatic transfer switch?
Joseph DaCosta
from Rhode Island
January 22, 2014
Answer
The transfer switch with load center (16 circuit) is blank and does not come with circuit breakers. You can use any configuration required as long as you do not exceed the limitations of the generator.

Please consult with a certified electrician for proper generator sizing and installation.
+
What size gas supply pipe is needed from tank to generator?
Richard Evans
from Pennsylvania
July 20, 2013
Answer
Fuel pipe size is based on the distance from the fuel source and for the Kohler models the recommended pipe size and max distances are listed in the installation guide and in the Kohler spec sheet....

Kohler Spec Sheet
+
How does the warranty work? Does it have to be installed by a Kohler certified dealer for the warranty work?
Franz Gerster
from New York
December 13, 2012
Answer
Kohler does not require a Kohler certified installer only a minimum would be a certified electrician.

When a Kohler installer does the installation and start-up the warranty starts the day he starts the unit.

When a certified electrician installs and starts the unit the warranty starts the day the unit was shipped from the factory.

All service and warranty work must be completed by an authorized Kohler service technician.

+
Is the Kohler a whole house generator.For the price listed does that include everything?
Mike Havenar
from Ohio
August 19, 2012
Answer
This generator (14RESAL) is not designed as a whole house generator. The transfer switch that is included with the generator has a 16 circuit load center so you would only power 16 circuits you select from your existing electrical panel.
+
How far from house must this particular generator be placed (re: windows, doors and chimneys)? anxious to hear from you. thank you. Eleanor drew
Eleanor Drew
from Connecticut
April 27, 2012
Answer
The installation drawing is available on the site under the specs tab on the generator page.

Typically these units require 3 feet from any non-combustible surface and 5 feet from any combustible surface.

You must also have a minimum of 5 feet from any window, door or ventilation opening for proper exhausting of the unit.

Please always check with your local inspector regarding your specific local codes and generator installations.
+
Hi Jim, What is the difference between the 20resl and 20resal? I don't see the composite pad on this unit 20resal? Thanks, Steve
Steve
from New Jersey
February 21, 2012
Answer
The new "A" version has the following features added:
** New Controller - RDC2/DC2
- New display readable in direct sunlight, 2 lines, 16 characters per line, no more codes.
- Built-In 2.5A battery charger using 120 VAC allowing deletion of the separate 6A battery charger
- Includes Ethernet Board, so no hardware required to be installed for OnCue
- RDC2 has built-in LED's on controller overlay to view status of RXT transfer switch and source availability while standing at the genset
- Real Time Clock - Allows setting of Exercise for any time and day you want
- Internal protection, no controller fuses to service
- Controller is fully potted for protection against snow and moisture

** New Silencer design to reduce sound levels
- 14RESA sound level during exercise is 63 dBA, and 67 dBA during normal operation
- 20RESA sound level during exercise is 64 dBA, and 69 dBA during normal operation

The composite pad is the same color as the entire unit and already attached to the bottom of the generator.
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Jared
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×
Kohler 14KW Composite Standby Generator System (100A Indoor 16-Circuit Switch)
Kohler 14RESAL
+
Reset View
Kohler 14RESAL
Kohler 14RESAL
Kohler 14RESAL
Kohler 14RESAL
Kohler 14RESAL
Kohler 14RESAL
Kohler 14RESAL
×
Customer Review Images

Visit Electric Generators Direct on Facebook
View the Electric Generators Direct Twitter Profile Page
Follow Electric Generators Direct on Pinterest
View Electric Generators Direct YouTube Channel
View Electric Generators Direct Tumbler
View Electric Generators Direct LinkedIn Company Profile
