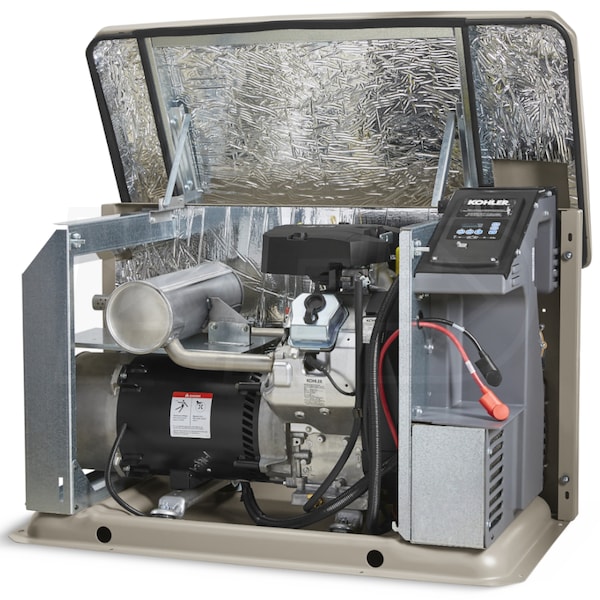

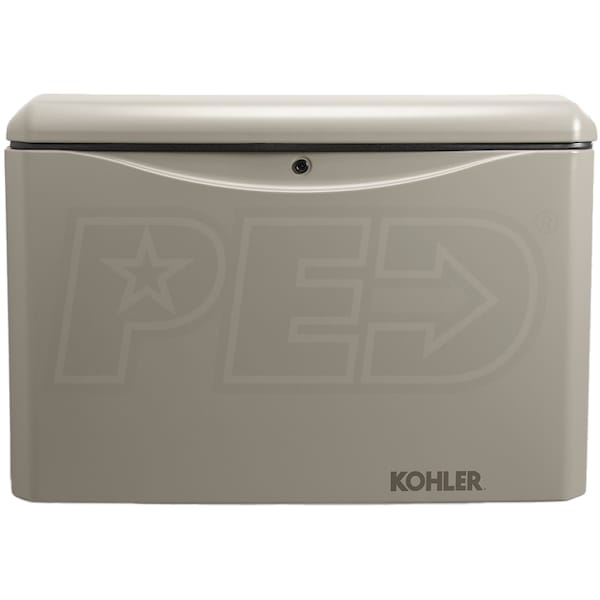

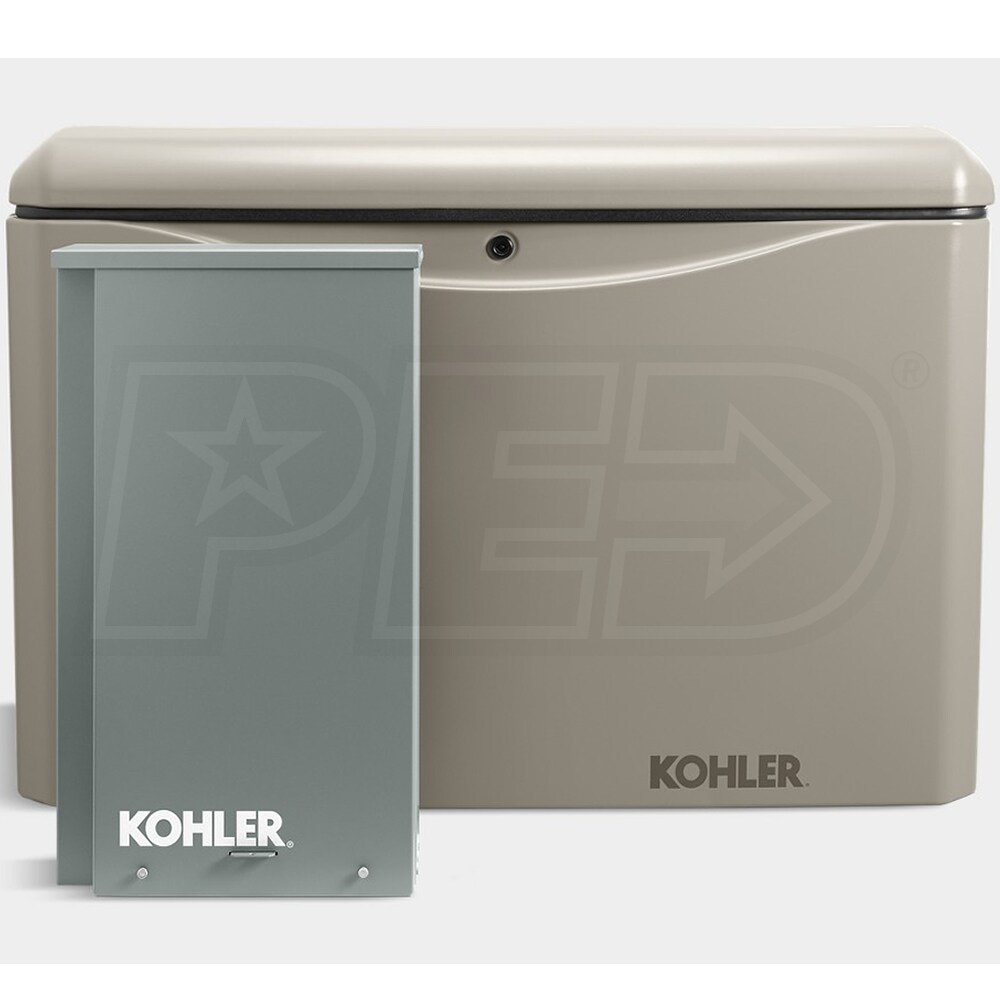

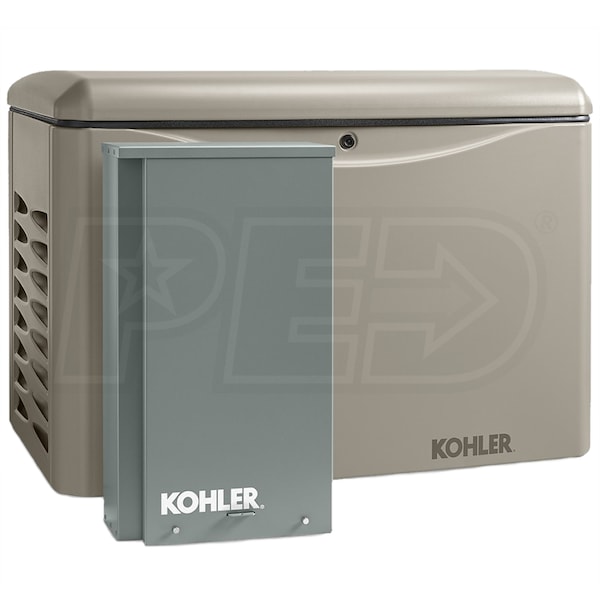

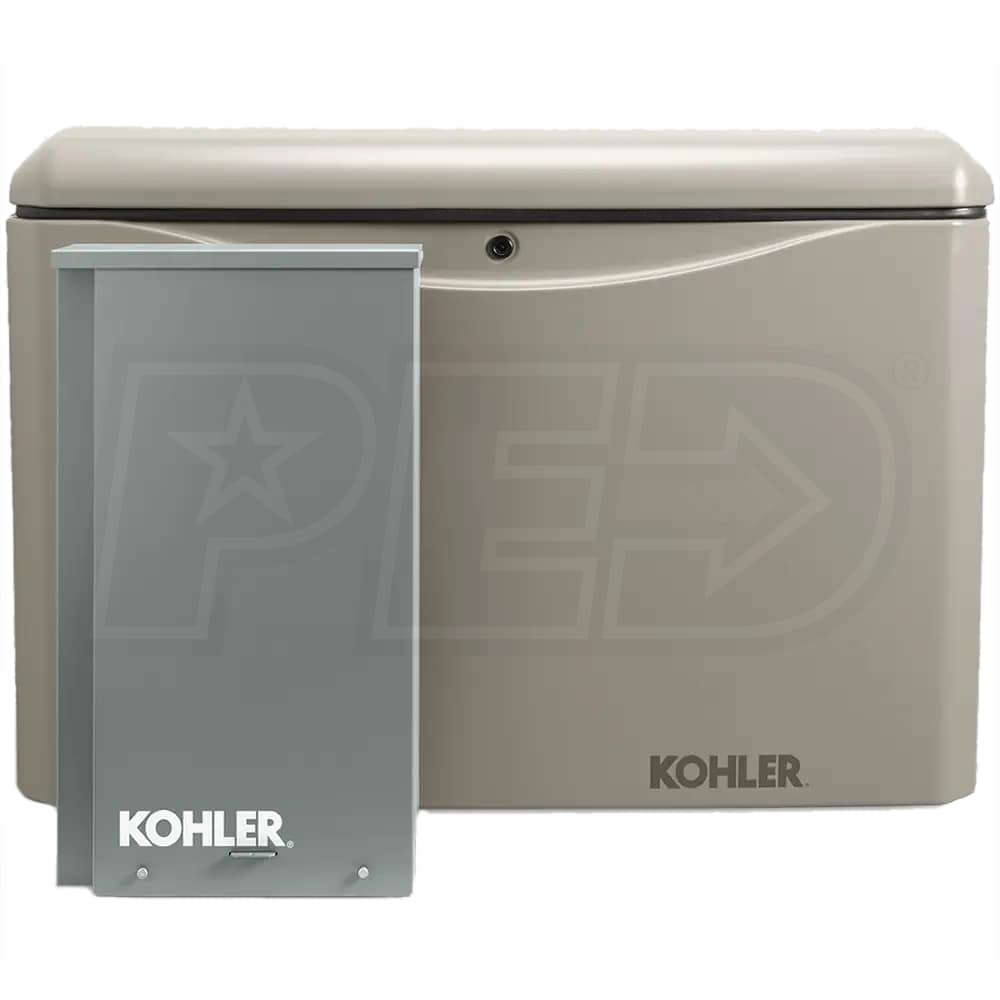

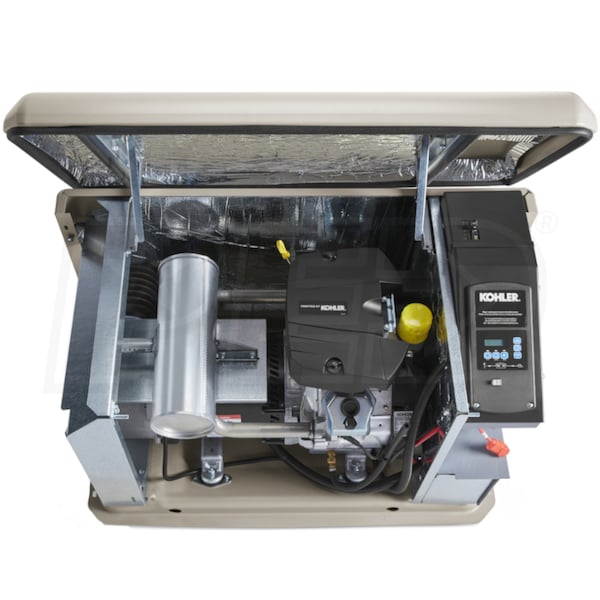

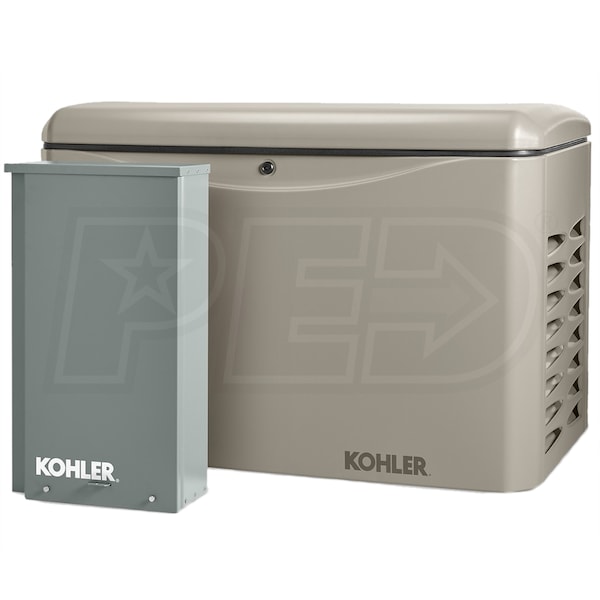

Kohler 14KW Aluminum Standby Generator System (100A Indoor 16-Circuit Switch)

Model:

14RCAL-100LC16

Write a Review
$4,103.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 8-12 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
$72 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Kohler 14KW Aluminum Standby Generator System (100A Indoor 16-Circuit Switch)
Kohler 14KW Aluminum Standby Generator System (100A Indoor 16-Circuit Switch)
Model: 14RCAL-100LC16
$4,103.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

14,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Kohler

  • 14kW (LPG) / 12kW (NG) Air-Cooled Standby Generator
  • Protects your home and family during a power outage
  • Includes Kohler 100-Amp Automatic Transfer Switch
  • Designed for indoor installations w/ 16-Circuit Load Center
  • Kohler Command PROŽ OHV Engine
  • Meets emission regulations for U.S. EPA & California
  • Powerful and reliable engine with hydraulic valve lifters
  • New 100% Corrosion-Proof Aluminum Enclosure
  • Aluminum base can be mounted on gravel or cement pad
  • Meets 181 MPH wind rating; Impact-resistant down to -30° F
  • Powerful Performance w/ PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Premium Power Quality (+/-1% Voltage Regulation)
  • Protects sophisticated electronics with low distortion (<5%THD)
  • Fast Response Time
  • Kohler™ generators restore power in as little as 10 seconds
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx 67 dB(A) at 7 m (23 ft)
  • RDC2 (6-Button) Digital Controller
  • Glare-resistant, 2-line 16-character display - No More Codes
  • Easily view ATS status via LED lights on controller
  • Real time clock allows you to easily set weekly exercise
  • OnCue® Plus Remote Monitoring System (Included)
  • Built-in Ethernet card, no hardware needed for OnCue
  • Easier Installation
  • Streamline design reduces time required to install generator
  • Installation Flexibility*
  • Can be installed within 18" of a building / home
  • *Always check local building codes
  • Premium Warranty - 5-Year / 2,000-Hour Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

14RCAL-100LC16
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
14000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
12000 Watts
LP Power Capacity
14000 Watts
NG Fuel Consumption @ 50% Load
124 ft³/hr
NG Fuel Consumption @ 100% Load
193 ft³/hr
LP Fuel Consumption @ 50% Load
1.8 gallons/hr
LP Fuel Consumption @ 100% Load
2.3 gallons/hr
Rated Amps
58 Amps
Decibel Rating @ 7m Learn More
62 Test (67 Run) dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Max Circuits
16
Battery
Not Included (500 CCA)
Enclosure
Aluminum
A/C Ton Rating
5-Tons
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
725 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
440 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
47 Inches
Product Style
Standby Generator
Product Width
26.2 Inches
Product Height
32.2 Inches
UPC
650531446756
