IMD PTO 22/2 S AVR - 22kW Tractor-Driven PTO Generator w/ AVR (540 RPM)

IMD PTO 22/2 S AVR - 22kW Tractor-Driven PTO Generator w/ AVR (540 RPM)
Our Price
Compare Prices
Shipping Info
Model: PTO 22/2 S AVR
$2,749.00

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Add-Ons
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Style
Run Watts
22,000
Rated Watts
Surge Watts
40,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
22,000
Surge Watts
40,000 Starting Watts
Features
Features
  • ***Please Note - 3-Point Hitch (Sold Separately)
  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires at least 41 PTO HP to operate properly
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • Automatic Voltage Regulator (AVR)
  • Produces clean and safe electricity for sensitive electronics
  • 100% Copper Winding, Low Distortion Alternator
  • Provides THD <5%, for high quality power output
  • Aluminum & Steel Housing
  • Lightweight design for maximum durability
  • Heavy Duty Cast Iron Single Stage Gearbox
  • Lifetime pre-sealed maintenance-free bearings
  • 4” Three Bar LED Meter
  • Provides accurate display of Hertz, Volts, and Amps output
  • Added Features (Full Power Plug Not Included)
  • Magnetic circuit breaker w/ individual circuit protection
  • Simultaneous 120V & 240V output w/ Full power outlet
  • Standard 1-3/8", 6-spline input shaft (Sold Separately)
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 14-50R
Full Power Receptacle
Overview
Made in USA
Yes
Weight
169 Pounds
Product Style
PTO Generator
Product Length
31 Inches
Product Width
12 Inches
Product Height
22 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
22000 Watts
Surge Watts
40000 Watts
Rated Amps
92 Amps
Voltage Meter
Yes
Tractors HP
41 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-50R
1
Full Power Receptacle
1
Grade
Style
Run Watts
22,000
Rated Watts
Surge Watts
40,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
22,000
Surge Watts
40,000 Starting Watts
Features
Features
  • ***Please Note - 3-Point Hitch (Sold Separately)
  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires at least 41 PTO HP to operate properly
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • Automatic Voltage Regulator (AVR)
  • Produces clean and safe electricity for sensitive electronics
  • 100% Copper Winding, Low Distortion Alternator
  • Provides THD <5%, for high quality power output
  • Aluminum & Steel Housing
  • Lightweight design for maximum durability
  • Heavy Duty Cast Iron Single Stage Gearbox
  • Lifetime pre-sealed maintenance-free bearings
  • 4” Three Bar LED Meter
  • Provides accurate display of Hertz, Volts, and Amps output
  • Added Features (Full Power Plug Not Included)
  • Magnetic circuit breaker w/ individual circuit protection
  • Simultaneous 120V & 240V output w/ Full power outlet
  • Standard 1-3/8", 6-spline input shaft (Sold Separately)
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 14-50R
Full Power Receptacle
Overview
Made in USA
Yes
Weight
169 Pounds
Product Style
PTO Generator
Product Length
31 Inches
Product Width
12 Inches
Product Height
22 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
22000 Watts
Surge Watts
40000 Watts
Rated Amps
92 Amps
Voltage Meter
Yes
Tractors HP
41 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-50R
1
Full Power Receptacle
1
Product Specs
+−
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 14-50R
Full Power Receptacle
Overview
Made in USA
Yes
Weight
169 Pounds
Product Style
PTO Generator
Product Length
31 Inches
Product Width
12 Inches
Product Height
22 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
22000 Watts
Surge Watts
40000 Watts
Rated Amps
92 Amps
Voltage Meter
Yes
Tractors HP
41 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-50R
1
Full Power Receptacle
1
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
+−
Be the first to ask a question.
Recommended Accessories
+−
Expert Recommended Accessories Hand Picked By Our Expert Jared
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+−
Manuals
+−


×

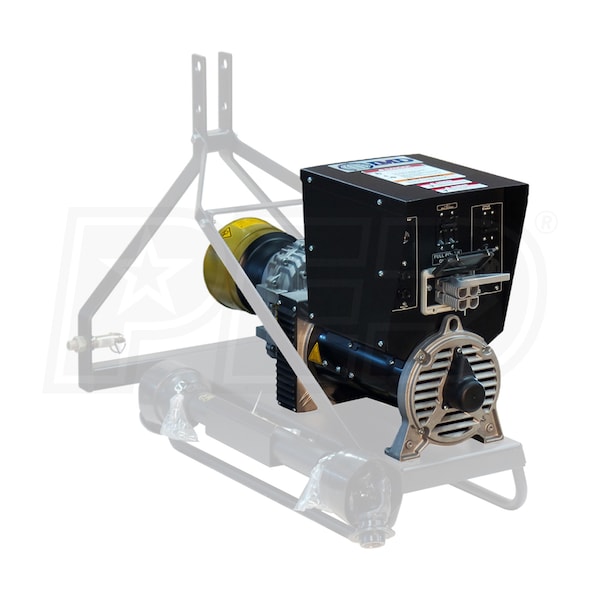

IMD PTO 22/2 S AVR - 22kW Tractor-Driven PTO Generator w/ AVR (540 RPM)
