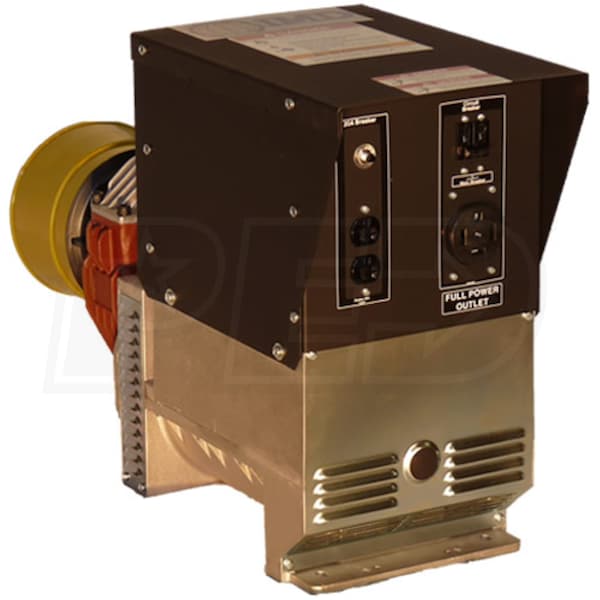

IMD PTO16-S - 16kW Tractor-Driven PTO Generator (540 RPM)

IMD PTO16-S - 16kW Tractor-Driven PTO Generator (540 RPM)
Model: PTO 16-S
$1,925.10
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons
Factory-Direct
Ships in 4-7 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
Product Description
+
Grade
Style
Run Watts
16,000
Rated Watts
Surge Watts
30,000
Starting Watts
Features
Features
  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires at least 32 PTO HP to operate properly
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • 3600 RPM Brushless Alternator w/ Capacitor
  • Designed for maintenance-free performance
  • 100% Copper Winding, Low Distortion Alternator
  • Provides THD <5%, for high quality power output
  • Aluminum & Steel Housing
  • Lightweight design for maximum durability
  • Heavy Duty Cast Iron Single Stage Gearbox
  • Lifetime pre-sealed maintenance-free bearings
  • 4” Three Bar LED Meter
  • Provides accurate display of Hertz, Volts, and Amps output
  • Added Features (Full Power Plug Not Included)
  • Magnetic circuit breaker w/ individual circuit protection
  • Simultaneous 120V & 240V output w/ Full power outlet
  • Standard 1-3/8", 6-spline input shaft
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 14-60R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Surge Watts
30000 Watts
Rated Watts
16000 Watts
Rated Amps
67 Amps
Voltage Meter
Yes
Tractors HP
32 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-60R
1
Overview
Made in USA
Yes
Weight
185 Pounds
Product Style
PTO Generator
Product Length
28 Inches
Product Width
11 Inches
Product Height
21 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Grade
Style
Run Watts
16,000
Rated Watts
Surge Watts
30,000
Starting Watts
Features
Features
  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires at least 32 PTO HP to operate properly
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • 3600 RPM Brushless Alternator w/ Capacitor
  • Designed for maintenance-free performance
  • 100% Copper Winding, Low Distortion Alternator
  • Provides THD <5%, for high quality power output
  • Aluminum & Steel Housing
  • Lightweight design for maximum durability
  • Heavy Duty Cast Iron Single Stage Gearbox
  • Lifetime pre-sealed maintenance-free bearings
  • 4” Three Bar LED Meter
  • Provides accurate display of Hertz, Volts, and Amps output
  • Added Features (Full Power Plug Not Included)
  • Magnetic circuit breaker w/ individual circuit protection
  • Simultaneous 120V & 240V output w/ Full power outlet
  • Standard 1-3/8", 6-spline input shaft
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 14-60R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Surge Watts
30000 Watts
Rated Watts
16000 Watts
Rated Amps
67 Amps
Voltage Meter
Yes
Tractors HP
32 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-60R
1
Overview
Made in USA
Yes
Weight
185 Pounds
Product Style
PTO Generator
Product Length
28 Inches
Product Width
11 Inches
Product Height
21 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Specs
+
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 14-60R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Surge Watts
30000 Watts
Rated Watts
16000 Watts
Rated Amps
67 Amps
Voltage Meter
Yes
Tractors HP
32 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-60R
1
Overview
Made in USA
Yes
Weight
185 Pounds
Product Style
PTO Generator
Product Length
28 Inches
Product Width
11 Inches
Product Height
21 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Reviews
+
This product has no reviews.
Be the first to voice your opinion on this IMD product.
Product Q&A
(2)
+
What is the difference between brushless and with brushes alternators? I see the AVR model has them, this s model does not. Both IMD 16pto models. Thank you.
Patrick Nelson
from Arkansas
March 03, 2014
Read Response +
Answer
The main differences in Brushed Alternators and Brushless Alternators is the way they excite the internal stator. Typically larger generators are all brushed as they can provide faster load output then a brushless alternator can but brushed systems can require maintenance to the alternator by having to change the brushes. Brushless systems do not have this maintenance option available and when the unit dies it cannot be repaired as the cost would be more then replacing one.

Either way, IMD states that either their brushed or brushless alternators will maintain an appropriate level of Hz output where you will get 5% or less THD (Total Harmonic Distortion) which is comparable to or better then standard utility power.

AVR gives you a little better/tighter control over the voltage output, usually +/- 1%, versus a standard capacitor which may vary a little more like standard utility power.
Hide Response -
I have a 45hp tractor with 36 PTO hp. I have a 3500 sq ft house with 2 freezers, 2 refrigerators, well house, aerobic septic and 2 AC units. I see 16kw and 25 kw PTO generators everywhere but what about 18kw? I do not know if the 16kw will work for the entire house and my tractor can only handle 18kw which I believe will be sufficient. What can you suggest? If I got a 22kw generator would it supply me with the 18kw my tractor can supply without problems?
Jason McCartnet
from Texas
June 24, 2012
Read Response +
Answer
You shouldn't have any issues at all and you should be able to pull 18KW out of a 22KW generator.

The one thing you would want to do, should the decision be made that the 22KW felt like the right option, is to monitor the meter on the generator. As long as the tractor can maintain the load at 60Hz, there shouldn’t be an issue.

The true concern of using a tractor that has a rated HP that is less than recommended is that situation where you pull more power than the tractor can handle. In which case, the Hz will drop and you can damage the generator or what you are power with it (depending on how large the drop is and at what rate).
Hide Response -
